Immobilizer Control System: Components

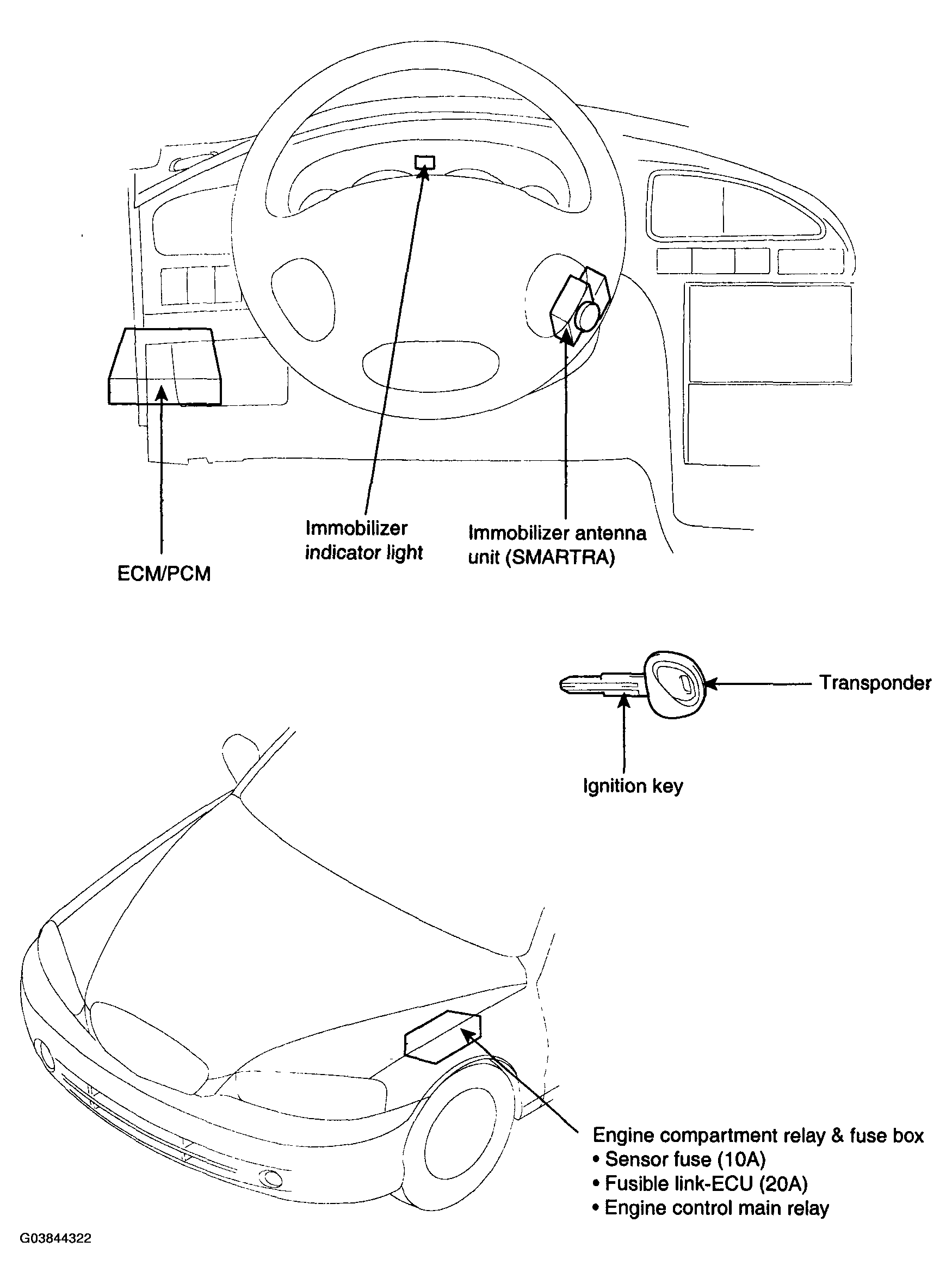

Fig 1: Identifying Immobilizer Control System Component Locations

G03844322

Courtesy of HYUNDAI MOTOR CO.
