Ground Circuit Inspection

Ignition "OFF".
Connect the "A/T CONTROL RELAY" connector.
Measure the resistance between terminal "2" of the "A/T CONTROL RELAY" harness connector and chassis ground.
Specification: Approx. 0 Ω

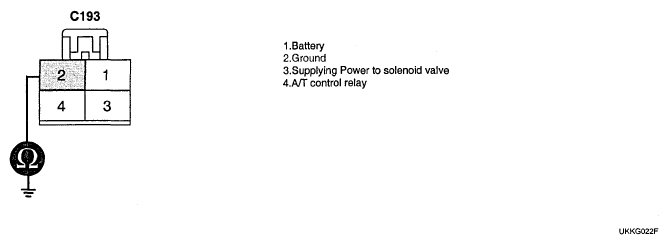

Fig 1: Measuring Resistance Between Terminal 2 Of A/T Control Relay Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specifications?
Yes:
- Go to "COMPONENT INSPECTION " procedure.
No:
- Check for open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
