Ground Circuit Inspection

Ignition "ON" & Engine "OFF".
Disconnect the "INPUT SPEED SENSOR" connector.
Measure resistance between terminal "1" of the INPUT SPEED SENSOR harness connector and chassis ground.
Specification: Approx. 0 Ω

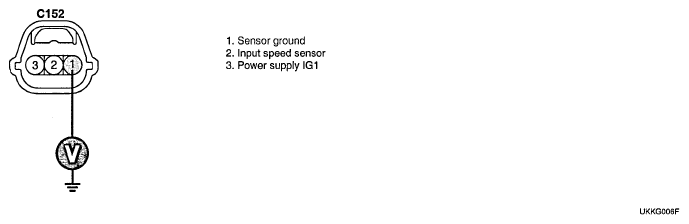

Fig 1: Measuring Resistance Between Terminal 1 Of Input Speed Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specifications?
Yes:
- Go to "COMPONENT INSPECTION " procedure.
No:
- Check for open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- If ground circuit in harness is OK, Go to Step 2.
