Transaxle Range (Tr) Switch: Removal

Remove the battery terminal.

Fig 1: Identifying Battery Terminal
Courtesy of HYUNDAI MOTOR CO.

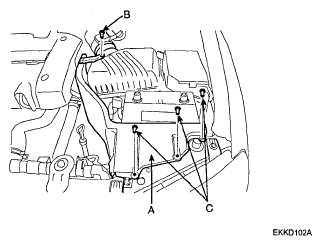

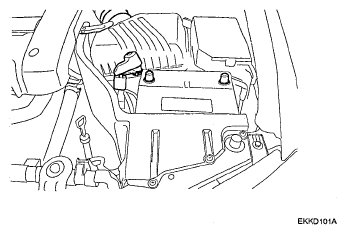

Remove the heat shield (A) (Bolt: 1 EA (B), Retainer: 3EA (C)).

Fig 2: Identifying Heat Shield And Retainer Bolt
Courtesy of HYUNDAI MOTOR CO.

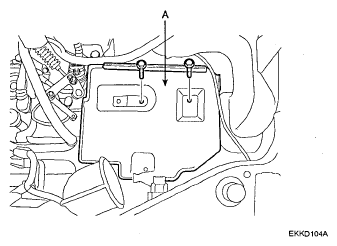

Remove the battery and battery tray (A).

Fig 3: Identifying Battery And Battery Tray
Courtesy of HYUNDAI MOTOR CO.

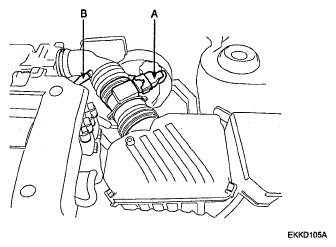

Disconnect the air flow sensor connector (A) and breather hose (B).

Fig 4: Identifying Air Flow Sensor Connector And Breather Hose
Courtesy of HYUNDAI MOTOR CO.
Removal of air cleaner and air intake hose.

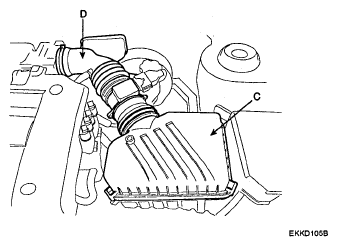

1. Air cleaner upper cover (C) and air intake hose (D).

  Fig 5: Identifying Air Cleaner Upper Cover And Air Intake Hose
  Courtesy of HYUNDAI MOTOR CO.

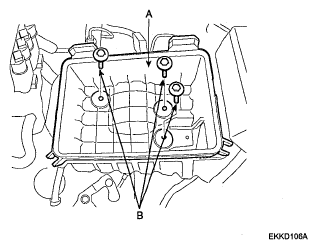

2. Air cleaner lower (A) (Bolt: 3EA (B)). A
Fig 6: Identifying Air Cleaner Lower Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle range switch connector (A).

Fig 7: Identifying Transaxle Range Switch Connector
Courtesy of HYUNDAI MOTOR CO.

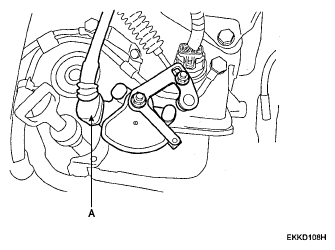

Remove the control cable to transaxle range switch (A) mounting nut (B).

Fig 8: Identifying Transaxle Range Switch And Mounting Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle range switch manual lever mounting nut (A).

Fig 9: Identifying Transaxle Range Switch Manual Lever Mounting Nut
Courtesy of HYUNDAI MOTOR CO.

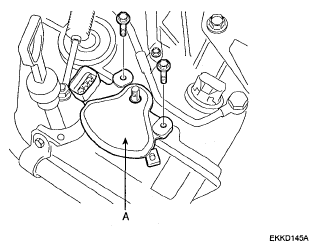

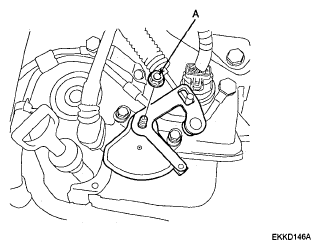

Remove the transaxle range switch (A).

Fig 10: Identifying Transaxle Range Switch
