Home >> Hyundai >> 2006 >> Elantra GLS, 4D Hatchback, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Starting System >> Starter >> Components

Starting System: Starter: Components

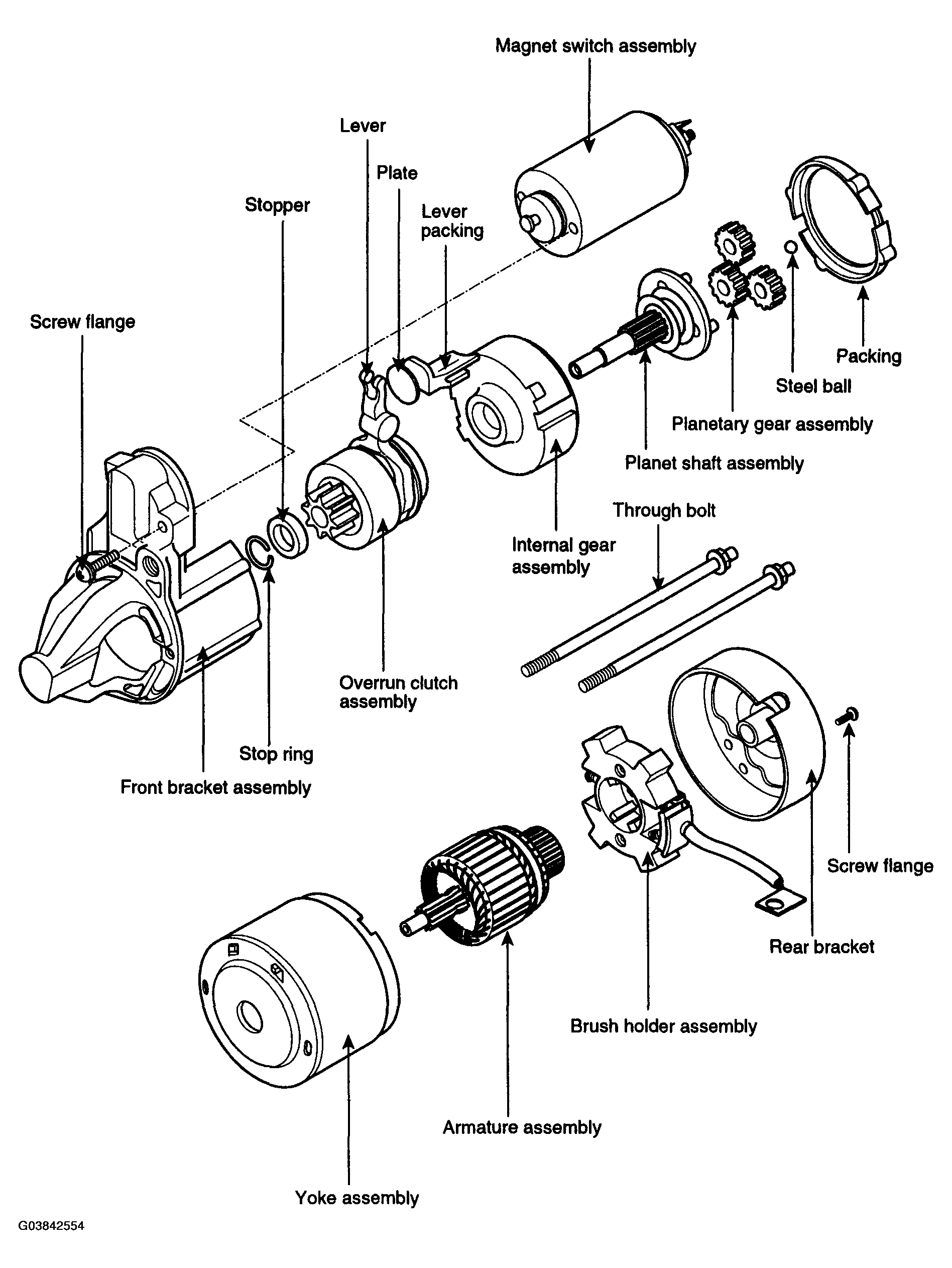

Fig 1: Identifying Starting Motor Components

G03842554

Courtesy of HYUNDAI MOTOR CO.
