Abs Circuit Diagram

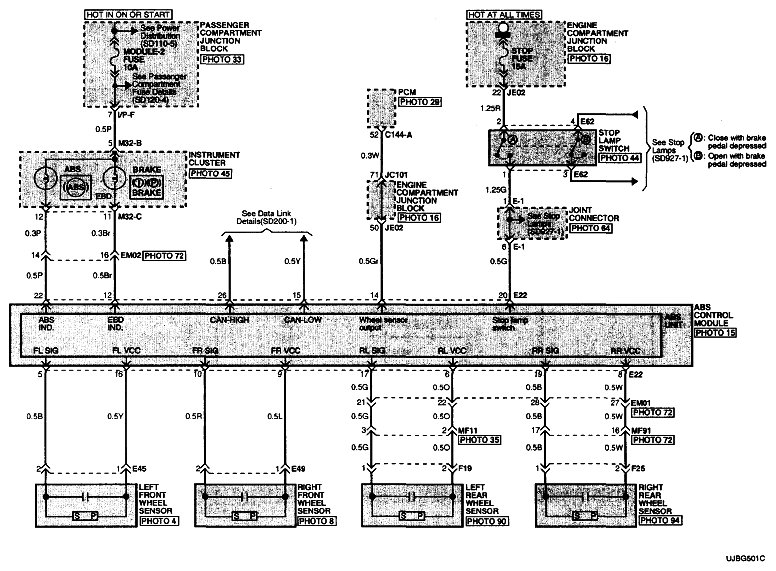

Fig 1: ABS - Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Fig 2: ABS - Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
