Manual Transaxle Shift Control System: Installation

Install the shift cable and select cable after locating the shift lever and select lever at the neutral position.
NOTE: When operating lever of body side, check secure operation of lever of transaxle side after assembly.
Install the snap pins (2EA) of transaxle side.

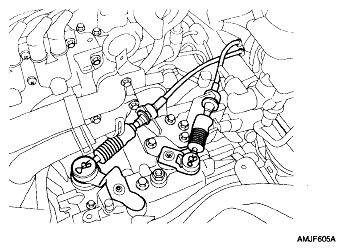

Fig 1: Identifying Snap Pins
Courtesy of HYUNDAI MOTOR CO.
Install the shift lever assembly.
Torque:

9-14 Nm (90-140 kgf.cm, 6-9.5 lb.ft)

Fig 2: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Install the shift cable and select cable to the shift lever side.
NOTE: Adjust the cable length with select cable adjuster (A) in "N" position before installing the center console.

Fig 3: Identifying Select Cable Adjuster
Courtesy of HYUNDAI MOTOR CO.
Install the center console. (Refer to CONSOLE ).
