Hyundai
>>
2006
>>
Accent Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Transaxle System (M5CF1)
>>
Manual Transaxle System
>>
Manual Transaxle Shift Control System
>>
Components (2)
Components (2)

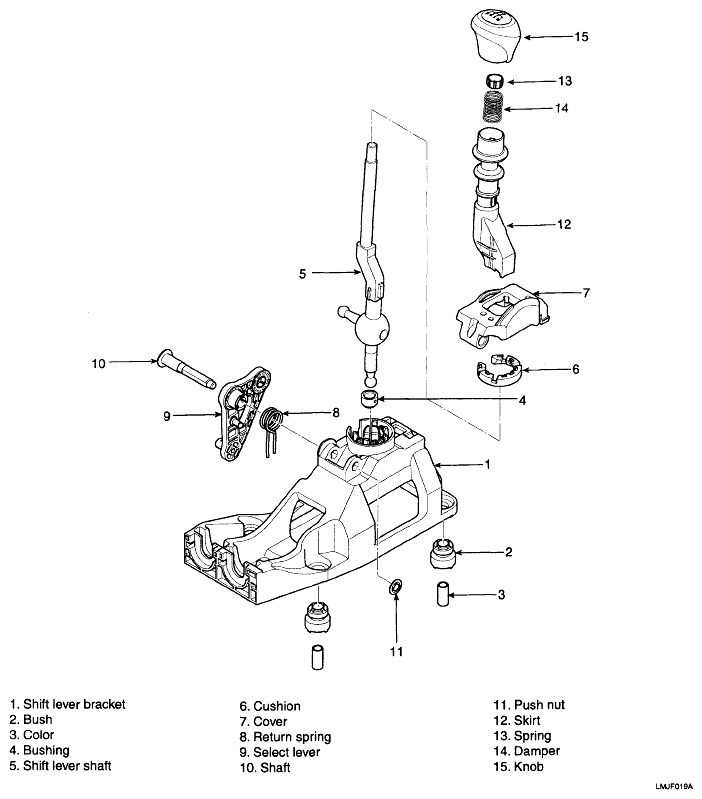

Fig 1: Identifying Manual Transaxle Shift Control System Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
