Manual Transaxle System (M5CF1)
>>
Manual Transaxle System
>>
Manual Transaxle Shift Control System
>>
Components (1)
Components (1)

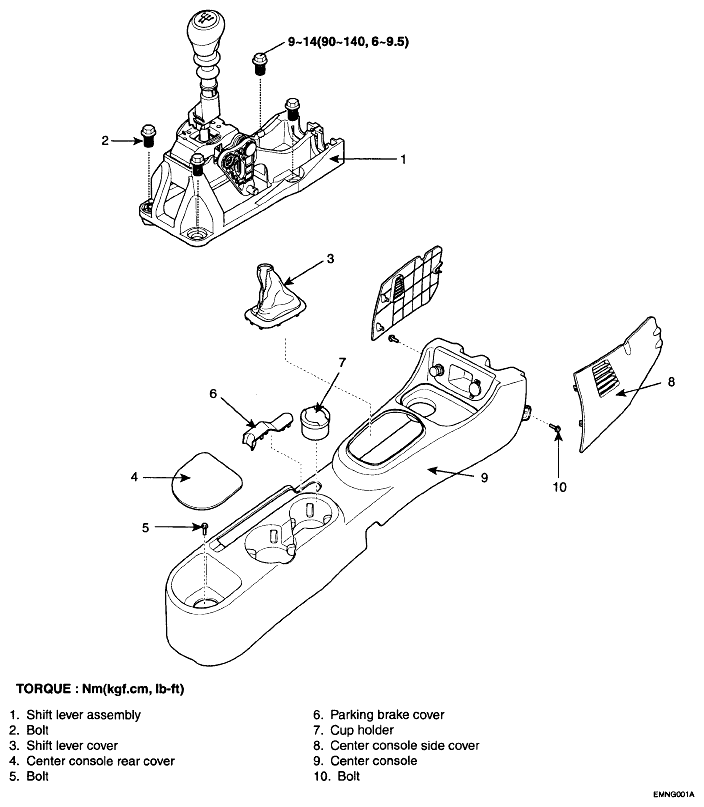

Fig 1: Manual Transaxle Shift Control System Replacement Components With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
