Steering Column And Steering Shaft: Removal

Disconnect the negative terminal (A) from the battery.

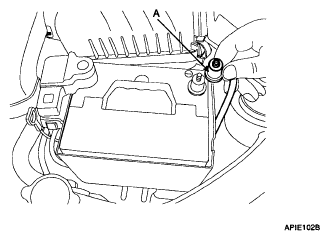

Fig 1: Identifying Battery Negative Terminal
Courtesy of HYUNDAI MOTOR CO.
Loosen the bolts (A) in the illustration, and then remove the horn pad (B).

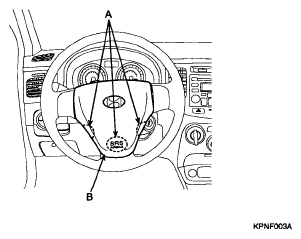

Fig 2: Identifying Horn Pad
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A) and remove the steering wheel lock nut (B).
Tightening torque Nm (kgf.m, lb.ft):

40 ~ 50 (4.0 ~ 5.0, 29 ~ 36)

Fig 3: Identifying Connector & Steering Wheel Lock Nut
Courtesy of HYUNDAI MOTOR CO.
After making the marks on the steering wheel and shaft for reinstallation, remove the steering wheel using a SST (09561-11002).
CAUTION: Do not hammer on the steering wheel to remove it; it may damage the steering column.

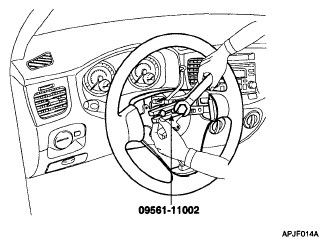

Fig 4: Removing Steering Wheel Using SST
Courtesy of HYUNDAI MOTOR CO.
Loosen the screws (A), and then remove the steering column upper and lower shrouds.

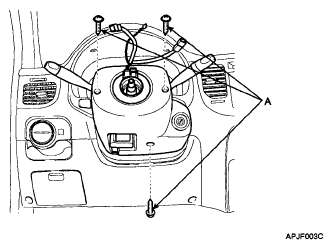

Fig 5: Identifying Steering Column Upper & Lower Shrouds
Courtesy of HYUNDAI MOTOR CO.
Loosen the screws and bolts, and then remove the lower crash pad (A).

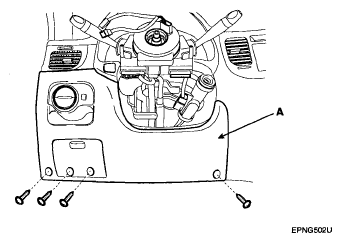

Fig 6: Identifying Lower Crash Pad
Courtesy of HYUNDAI MOTOR CO.
Remove the clock sprig (A).

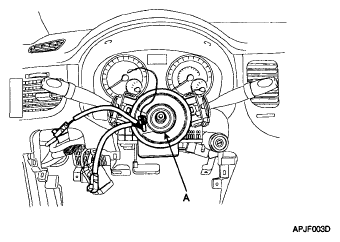

Fig 7: Identifying Clock Sprig
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors and remove the multifunction switch (A).

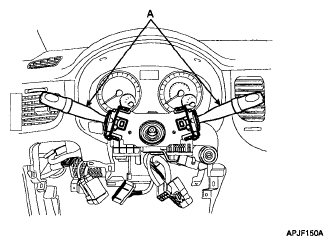

Fig 8: Identifying Multifunction Switch & Connectors
Courtesy of HYUNDAI MOTOR CO.
Remove the bolt (A) connecting steering gear to universal joint.
Tightening torque Nm (kgf.m, lb-ft):

13 ~ 18 (1.3 ~ 1.8, 9.4 ~ 13.0)

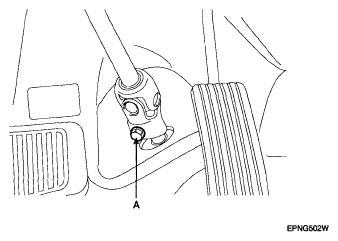

Fig 9: Identifying Steering Gear Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the steering column after loosening the steering column mounting bolts and nut.
Tightening torque Nm (kgf.m, lb-ft):

13 ~ 18 (1.3 ~ 1.8, 9.4 ~ 13.0)
