Universal Joint Assembly

  1. Remove the bolt (A) connecting the universal joint assembly (B) and the steering column and shaft assembly (C).

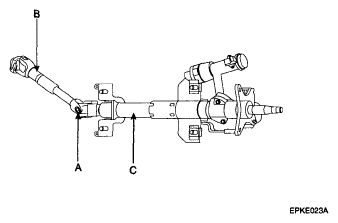

    Fig 1: Identifying Universal Joint Assembly & Steering Column & Shaft Assembly
    G04802429Courtesy of HYUNDAI MOTOR CO.
  2. Remove the universal joint assembly (A) from the steering column and shaft assembly (B).

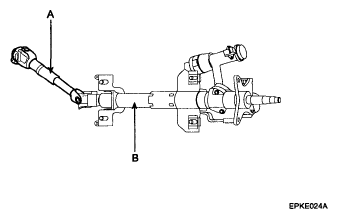

    Fig 2: Identifying Universal Joint Assembly & Steering Column & Shaft Assembly
    G04802430Courtesy of HYUNDAI MOTOR CO.
  3. Reassembly is reverse of disassembly.
