Key Lock Assembly

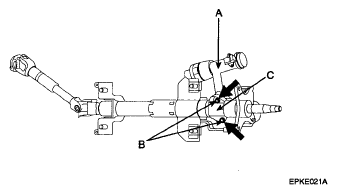

  1. If it is necessary to remove the key lock assembly (A), use a punch to make a groove on the head of the special bolt (B), and then use a screwdriver to remove the key lock assembly mounting bracket (C).
    Fig 1: Identifying Key Lock Assembly & Special Bolt
    G04802427Courtesy of HYUNDAI MOTOR CO.

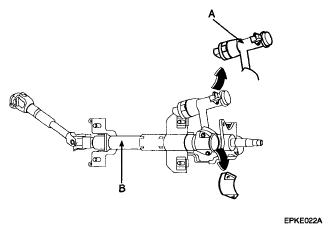

  2. Disassemble the key lock assembly (A) from the steering column and shaft assembly (B).
    Fig 2: Identifying Key Lock Assembly & Steering Column & Shaft Assembly
    G04802428Courtesy of HYUNDAI MOTOR CO.
  3. Reassembly is reverse of disassembly.
