A/C Pressure Transducer Connector End View

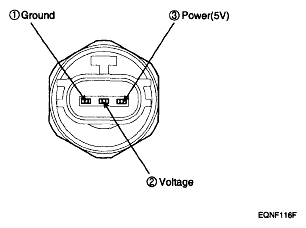

Fig 1: A/C Pressure Transducer Connector End View

G04803179

Courtesy of HYUNDAI MOTOR AMERICA
