Front Driveshaft Assembly: Installation

Installation is the reverse of removal.
CAUTION:
- Replace the circlip with new ones before the installation.
- Before the installation, apply the gear oil on the driveshaft splines (A) and contacting surface of differential case oil seal (B).

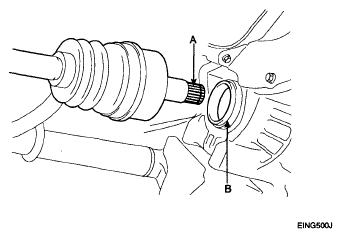

  Fig 1: Identifying Driveshaft Installation Positions
  Courtesy of HYUNDAI MOTOR CO.

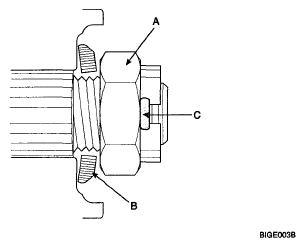

- The washer (B) should be assembled with convex surface outward when installing the castle (A) nut and split pin (C).

  Fig 2: Identifying Castle Nut & Split Pin
  Courtesy of HYUNDAI MOTOR CO.
