Circuit Diagram (Without IMS): Components

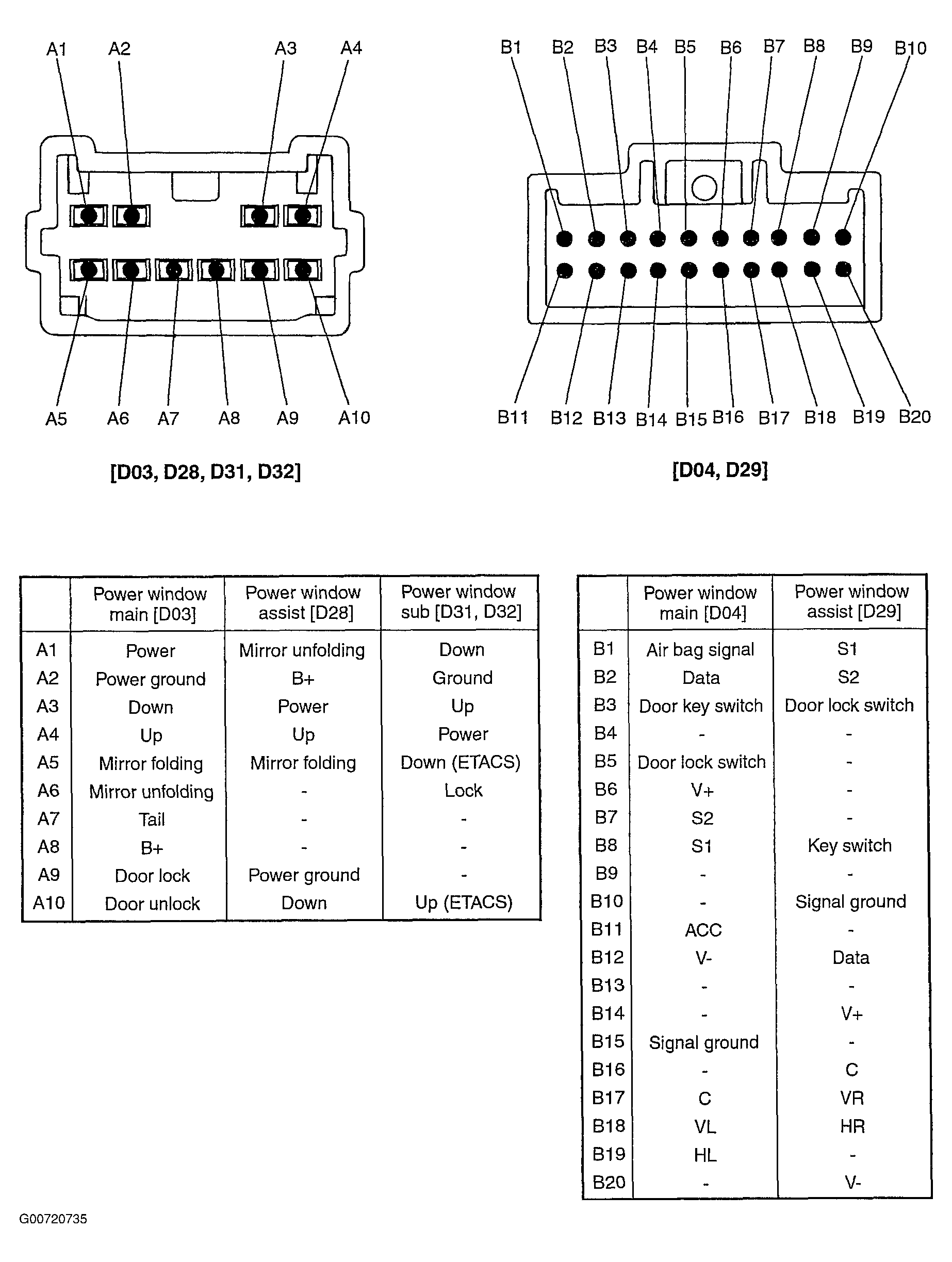

Fig 1: Power Window Circuit Identification (Without IMS)

G00720735

Courtesy of HYUNDAI MOTOR CO.
