Engine Hesitates Or Accelerates Poorly

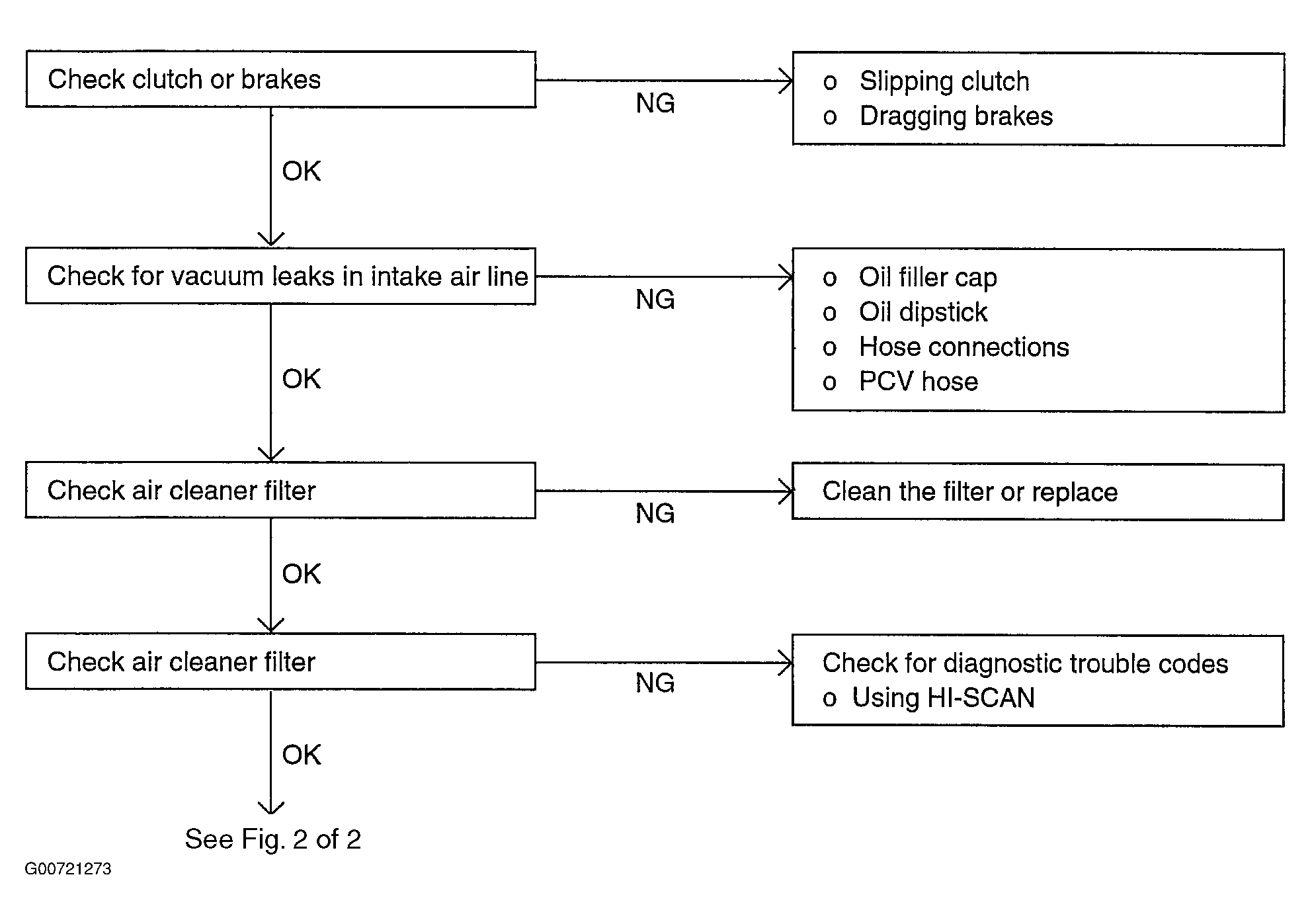

Fig 1: Engine Hesitates Or Accelerates Poorly (1 Of 2)
G00721273Courtesy of HYUNDAI MOTOR CO.

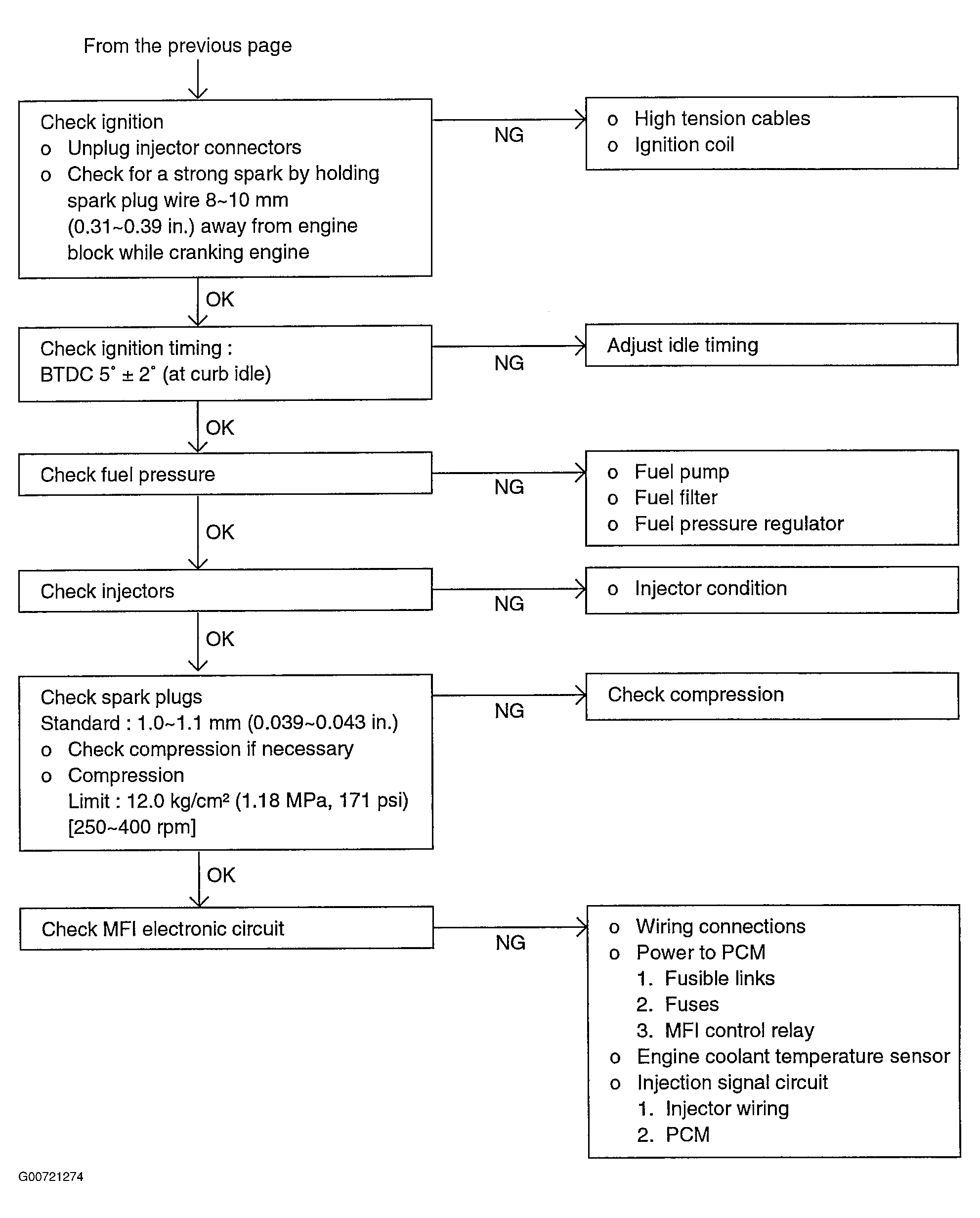

Fig 2: Engine Hesitates Or Accelerates Poorly (2 Of 2)
G00721274Courtesy of HYUNDAI MOTOR CO.
