Difficult To Start (Engine Cranks)

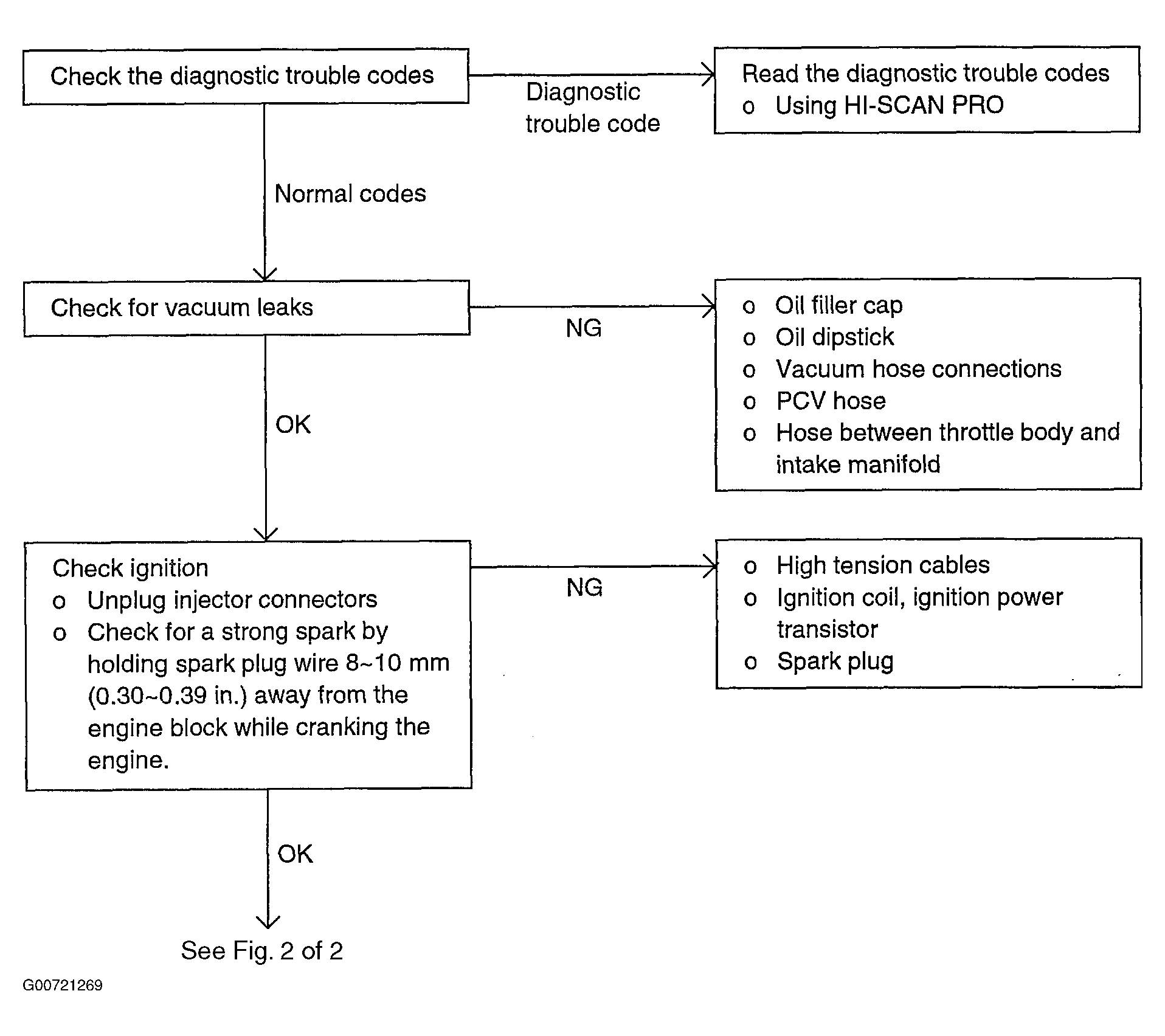

Fig 1: Difficult To Start (Engine Cranks) Flow Chart (1 Of 2)
G00721269Courtesy of HYUNDAI MOTOR CO.

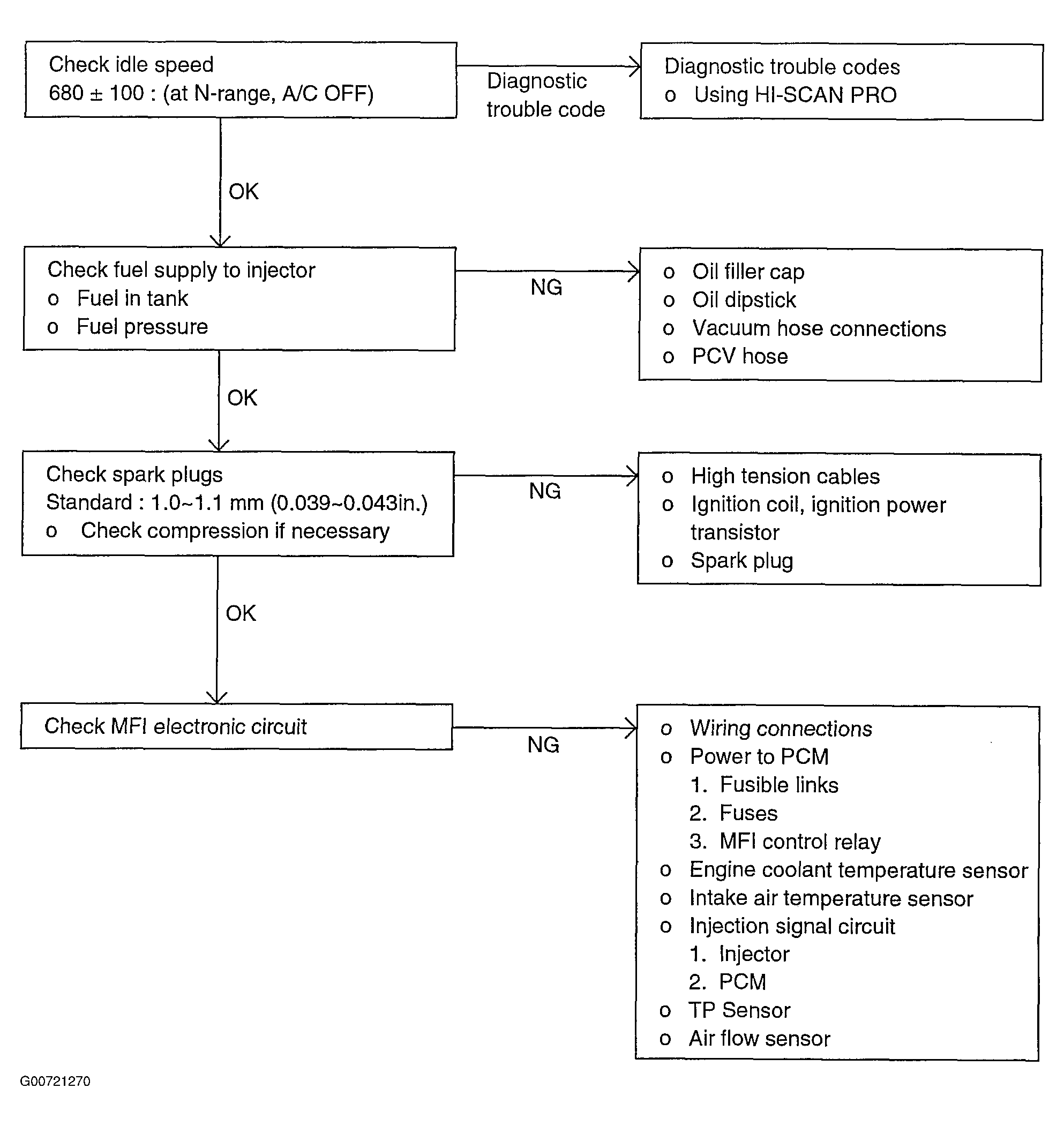

Fig 2: Difficult To Start (Engine Cranks) Flow Chart (2 Of 2)
G00721270Courtesy of HYUNDAI MOTOR CO.
