Oil Pump: Components

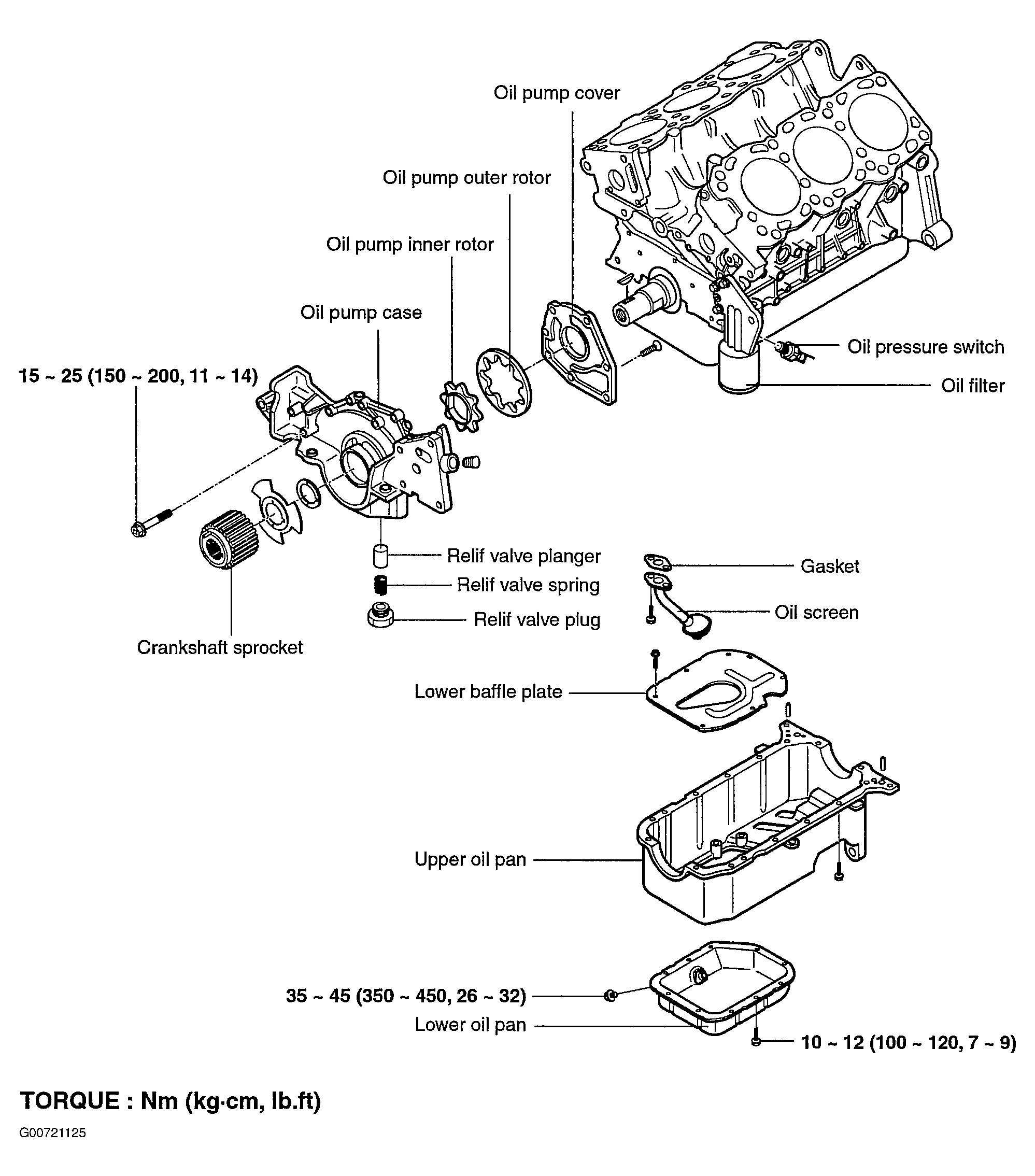

Fig 1: Identifying Lubrication System Components

G00721125

Courtesy of HYUNDAI MOTOR CO.
