Removal And Installation

  1. Disconnect the negative (-) battery terminal.
  2. Remove the center fascia panel.

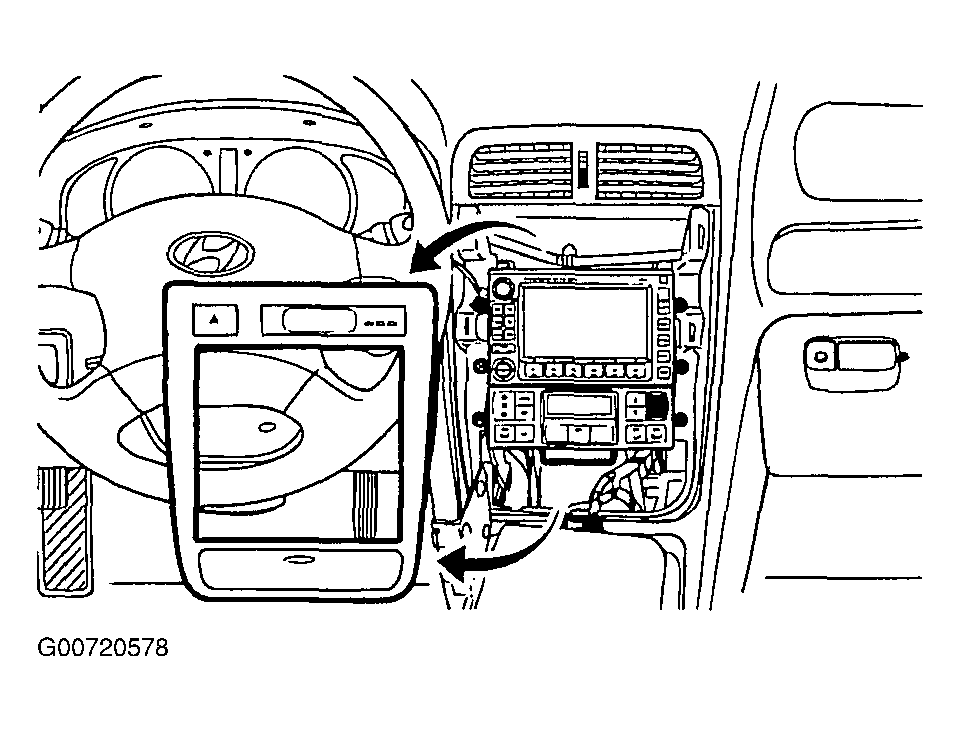

    Fig 1: Removing Fascia Panel
    G00720578Courtesy of HYUNDAI MOTOR CO.
  3. Unscrew the audio mounting screws and remove the audio assembly from the mounting bracket.

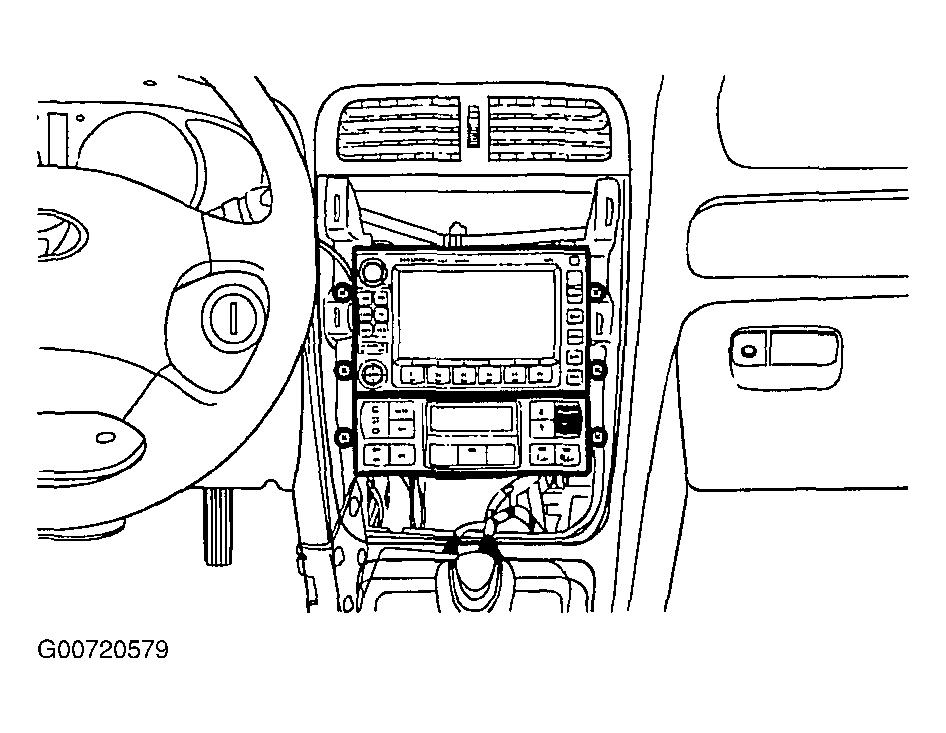

    Fig 2: Removing Audio Mounting Screws
    G00720579Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
