Timing Belt: Components

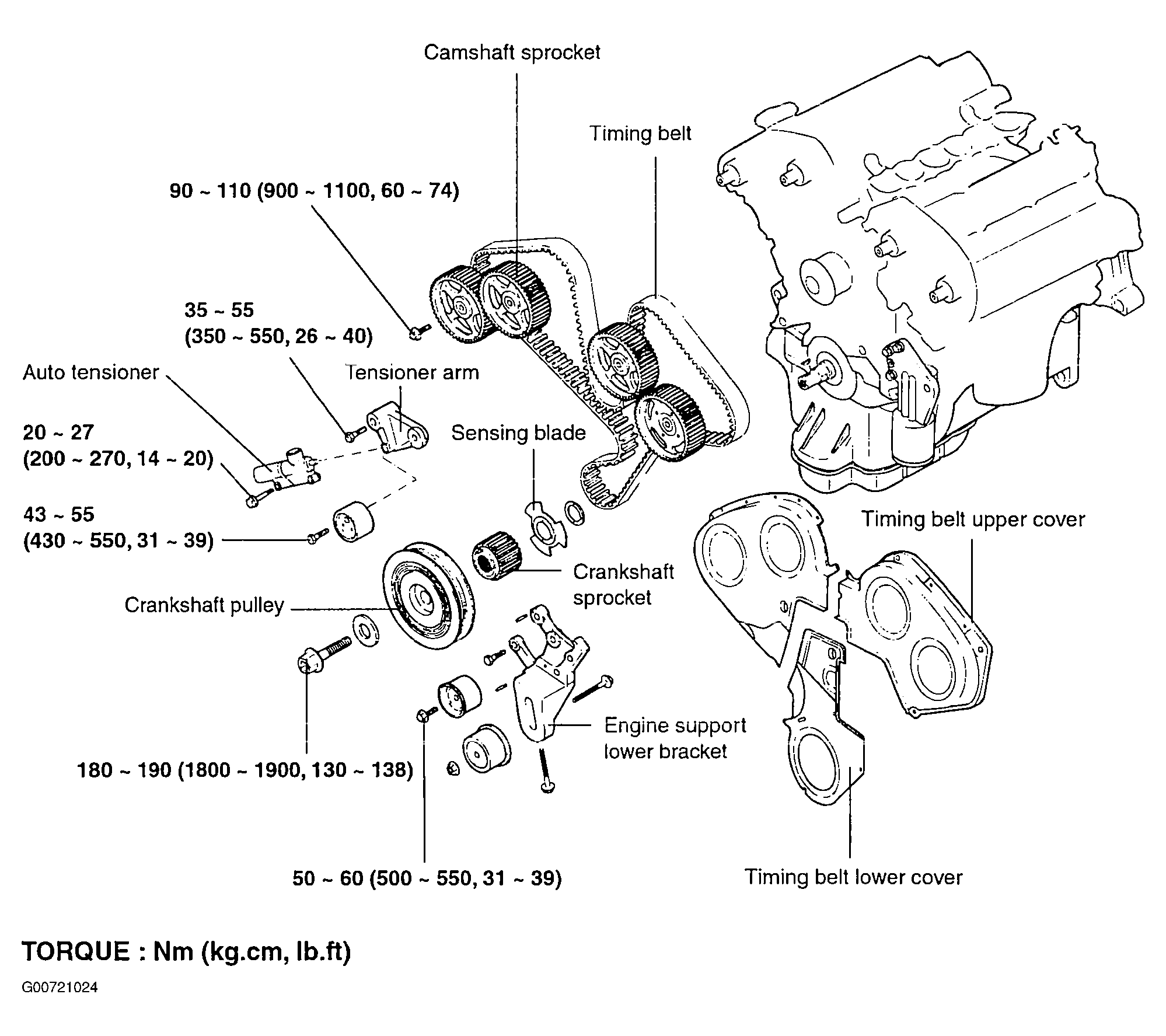

Fig 1: Identifying Timing Belt & Related Components

G00721024

Courtesy of HYUNDAI MOTOR CO.

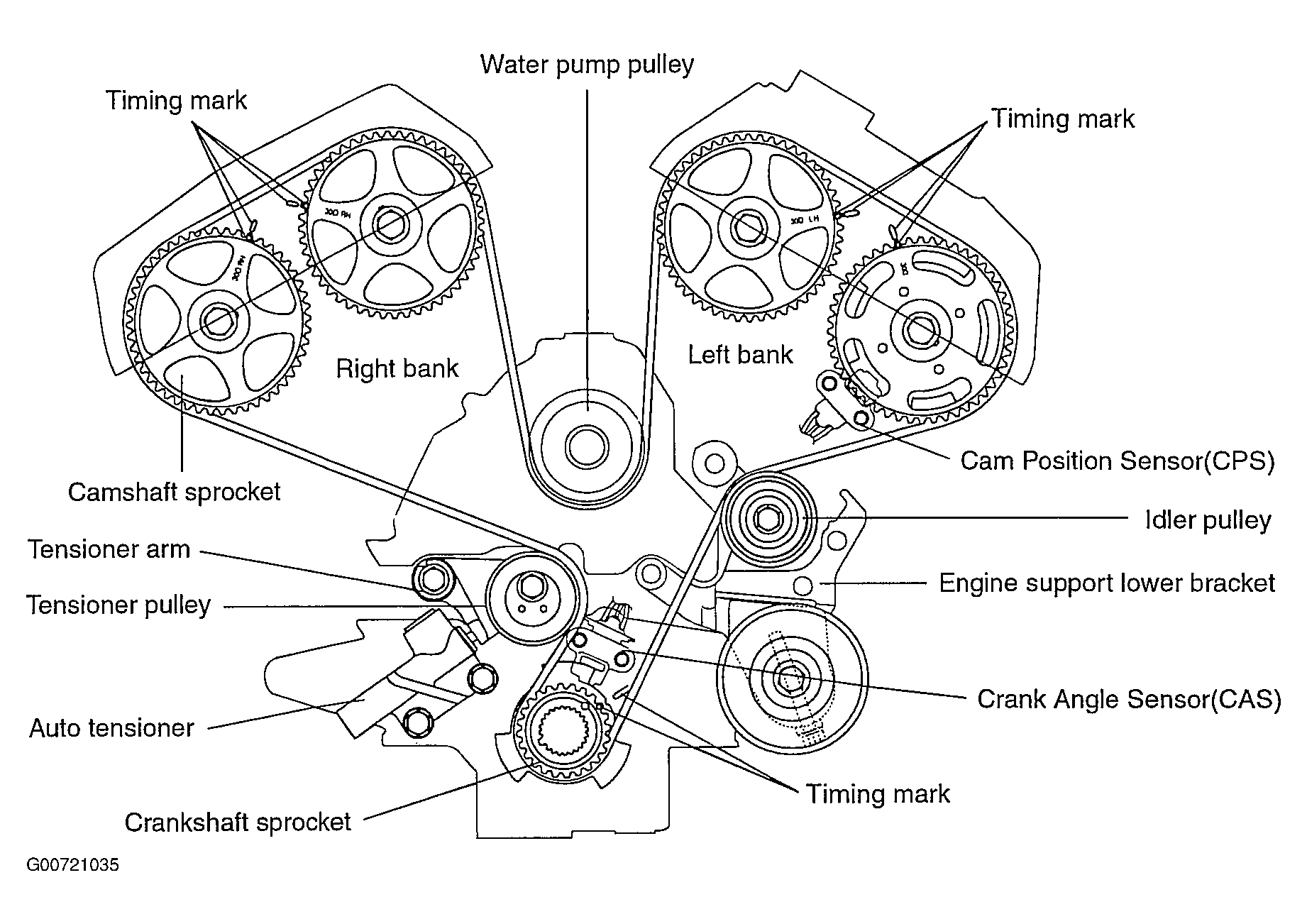

Fig 1: Identifying Timing System Components & Timing Mark Alignment

G00721035

Courtesy of HYUNDAI MOTOR CO.
