Release Handle Replacement

  1. Remove the front door scuff trim and center pillar lower trim (See FLOOR AND SIDE AREA ).
  2. Loosen the release handle (A), mounting bolt.

    Disconnect the release cable (B), then remove the release handle.

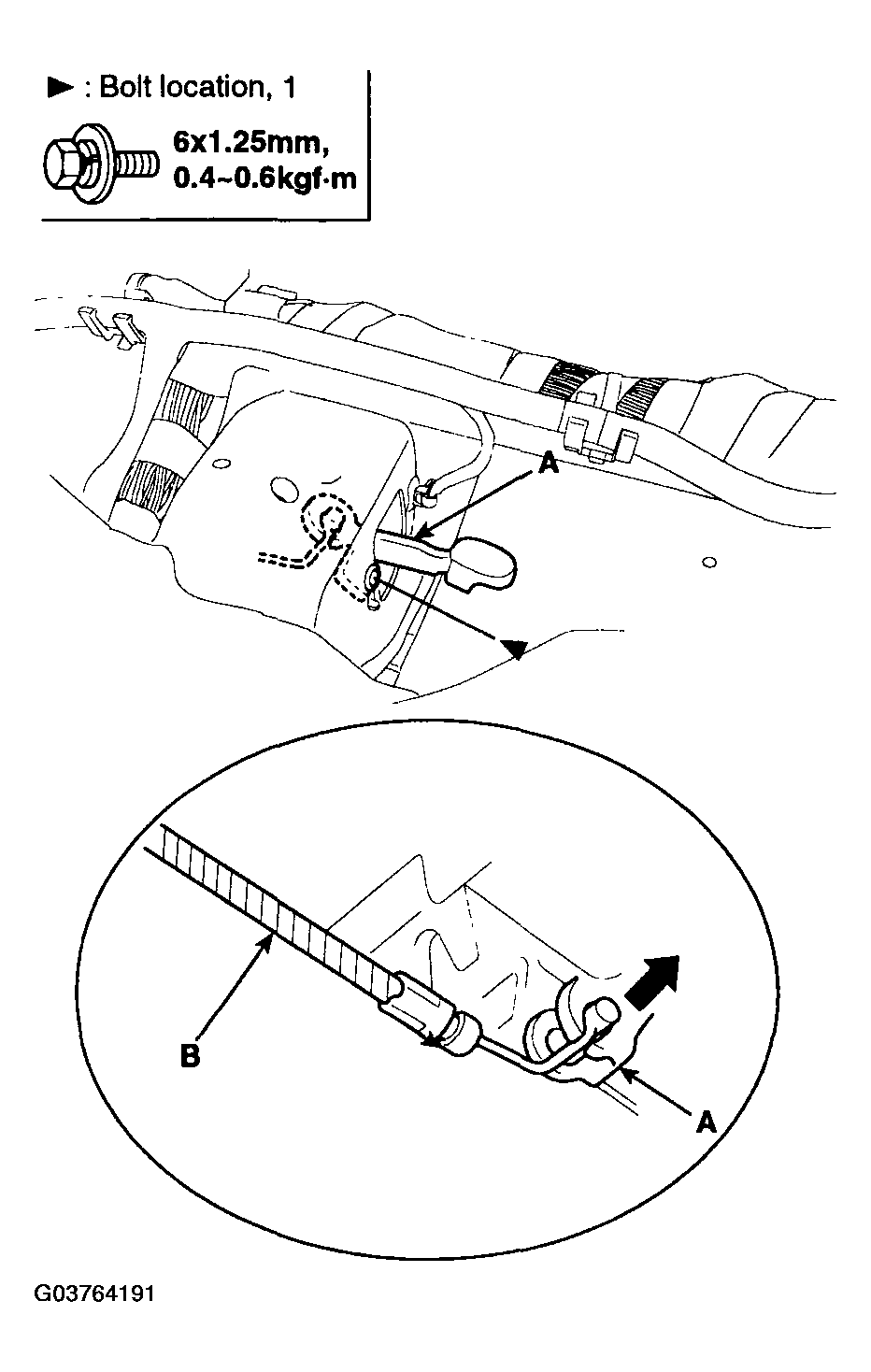

    Fig 1: Disconnecting Release Cable And Release Handle
    G03764191Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
    NOTE:
    • Make sure the release cable is connected properly.
    • Make sure the fuel filler door/trunk lid open properly.
