Power Window Motor Replacement

  1. Remove the door trim (see FRONT DOOR TRIM ).
  2. After disconnecting the connector (A), remove the power window motor (B).

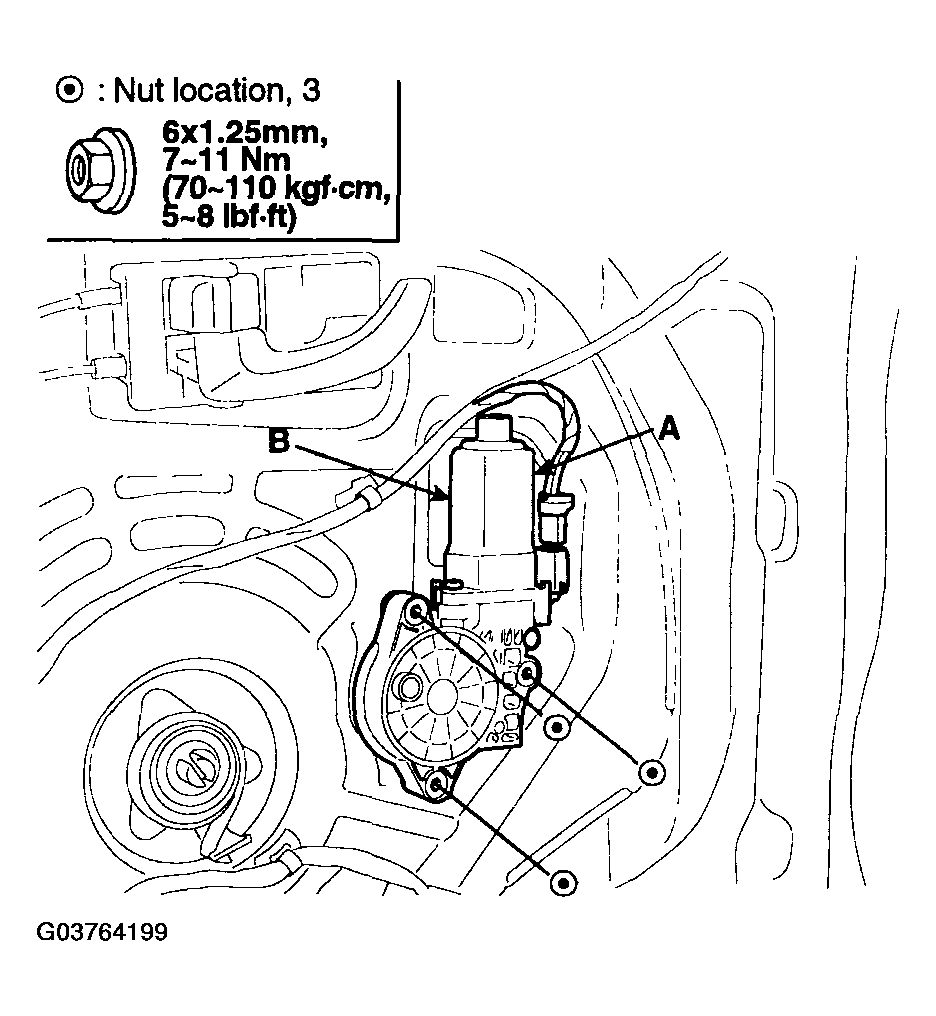

    Fig 1: Removing Power Window Motor
    G03764199Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
    NOTE: Roll the glass up and down to see if it moves freely without binding.
