DTC Troubleshooting
4WD ECM DTC TROUBLESHOOTING INDEX
| DTC No. | DESCRIPTION | 4WD MIL |
|---|---|---|

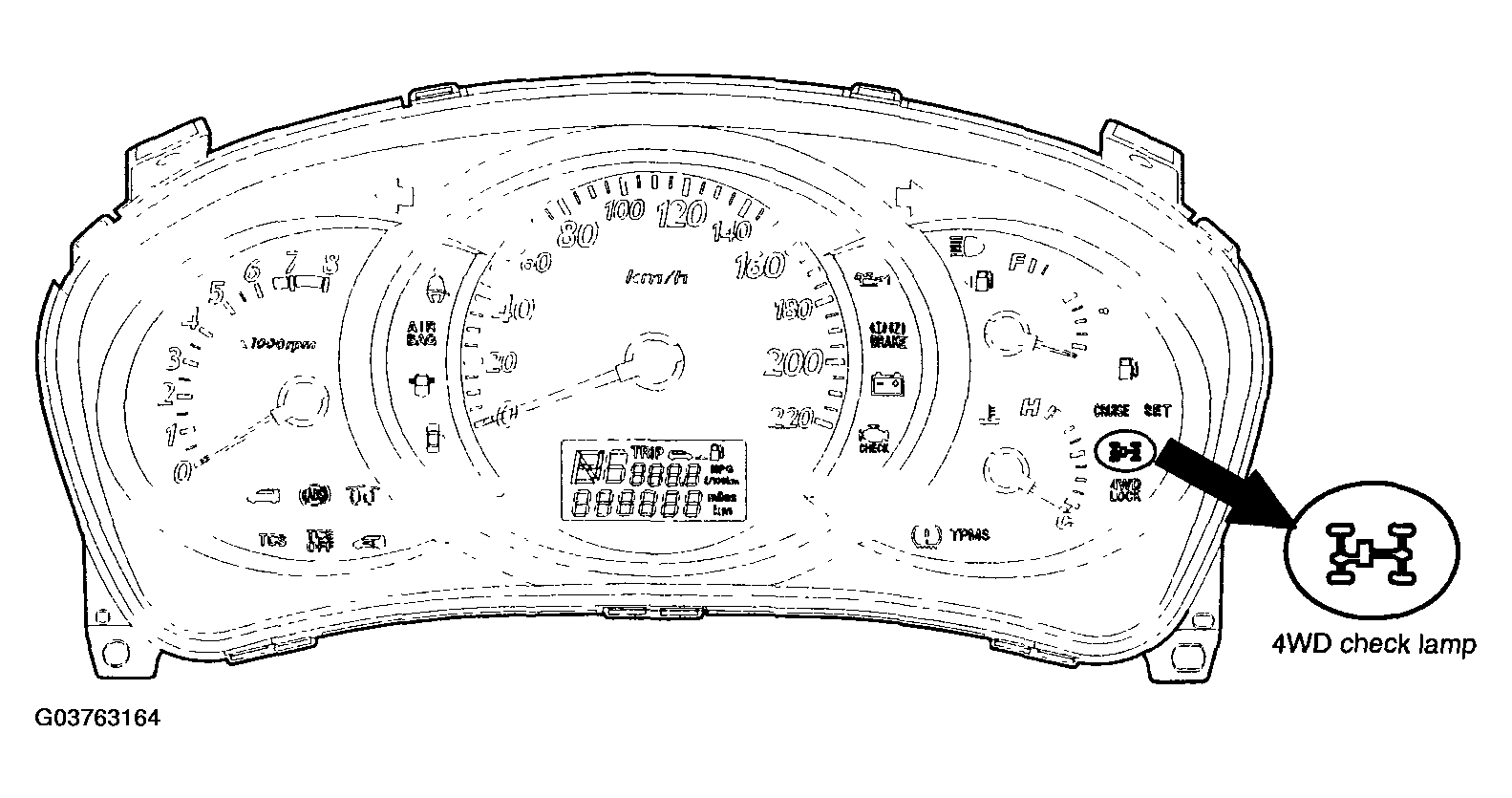

| P1716 | STEERING WHEEL ANGLE SENSOR SIGNAL (CAN ERROR) | Whenever the DTCs relevant to 4WD ECM are set, 4WD MIL (*) will blink. |
| P1717 | STEERING WHEEL ANGLE SENSOR 1-INPUT SIGNAL | |
| P1718 | STEERING WHEEL ANGLE SENSOR 2-INPUT SIGNAL | |
| P1719 | STEERING WHEEL ANGLE SENSOR C-INPUT SIGNAL | |
| P1726 | ACCELERATION PEDAL POSITION SIGNAL | |
| P1728 | EMC OPEN/SHORTED to BATTERY | |
| P1729 | EMC SHORTED to GROUND | |
| P1738 | 4WD ECU INVALID PART NUMBER | |
| P1750 | WHEEL SPEED SENSOR SIGNAL (FL) | |
| P1751 | WHEEL SPEED SENSOR SIGNAL (FR) | |
| P1752 | WHEEL SPEED SENSOR SIGNAL (RL) | |
| P1753 | WHEEL SPEED SENSOR SIGNAL (RR) | |
| P1764 | ECU-ITM CAN ERROR | |
| P1765 | TCS-ITM CAN ERROR | |
| P1766 | CAN COMMUNICATION BUS OFF | |
| P1767 | ABS ACTIVE SIGNAL (CAN ERROR) |
