Oil Temperature Sensor: Inspection

  1. Remove the oil temperature sensor (A).

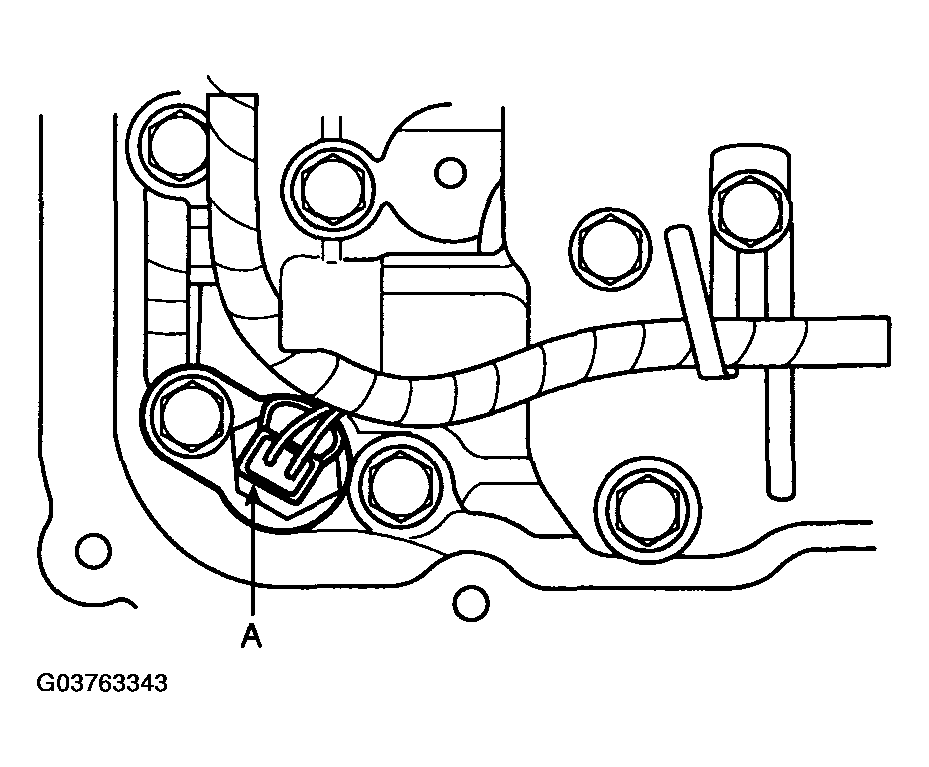

    Fig 1: Identifying Oil Temperature Sensor
    G03763343Courtesy of HYUNDAI MOTOR CO.
  2. Measure the resistance between the terminal 1 and 2 of the sensor connector.
    OIL TEMPERATURE SENSOR RESISTANCE

    Temp.[°C(°F)] Resistance (KΩ)
    0(32)
    100(212)    		 18.6
    0.63
    Fig 2: Measuring Resistance Between Terminals 1 & 2 Of Sensor Connector
    G03763344Courtesy of HYUNDAI MOTOR CO.
  3. If the value is out of the speechification, replace the oil temperature sensor.
