Identification Color Of Each Solenoid Valves

COLOR OF EACH SOLENOID VALVES

Solenoid valve	Wire color	Housing	Frequency
UD sol. valve	White, Red, Red	Black	61.27 Hz
OD sol. valve	Orange, Red	Black	61.27 Hz
L/R sol. valve	Brown, Yellow	Milky white	61.27 Hz
2nd sol. valve	Green, Red, Red	Milky white	61.27 Hz
DCC sol. valve	Blue, Yellow, Yellow	Black	34.64 Hz
ATF temp. Sensor	Black, Red	Black

L/R solenoid valve controls the direct clutch in 5A/T as well as low-reverse brake

Fig 1: Identifying Solenoid Valve Ports
Courtesy of HYUNDAI MOTOR CO.

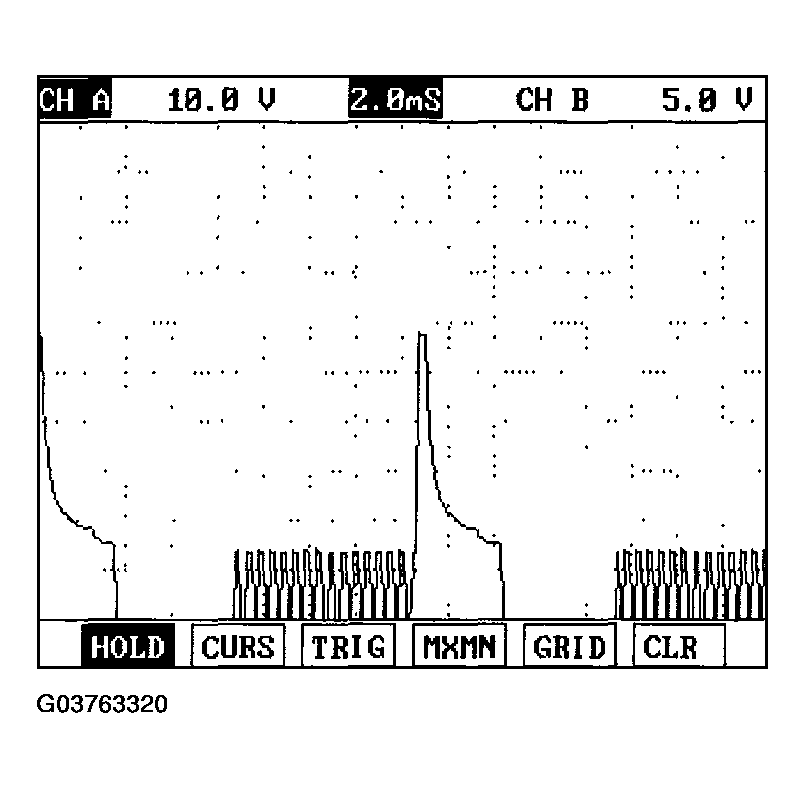

Wave Form with High-scan

Solenoid valve ON: Hydraulic pressure is released from corresponding clutch or brake.

Solenoid valve OFF: Hydraulic pressure is supplied to corresponding clutch or brake.

Except) DCCSV: When the DCCSV is ON, the damper clutch is operated.

Fig 2: Identifying Wave Form Graph

Courtesy of HYUNDAI MOTOR CO.
