Special Service Tools

SPECIAL TOOLS

Tool (Number and Name) Illustration Use
09353-24100 Fuel Pressure Gauge
G03762164
 Measuring the fuel line pressure

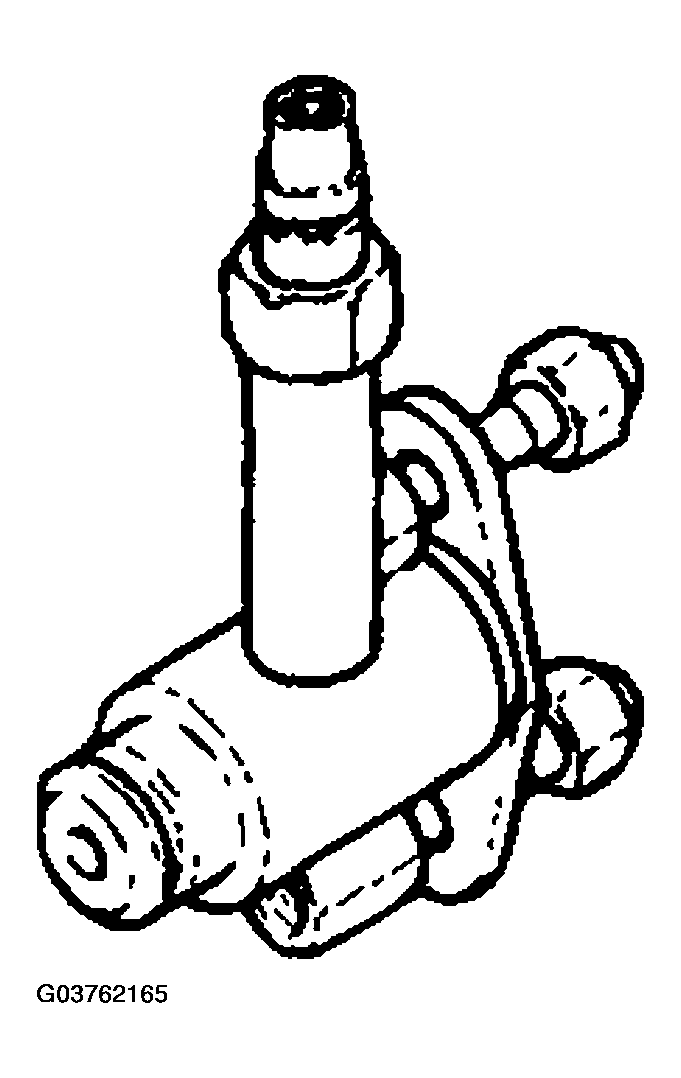

09353-38000 Fuel Pressure Gauge Adapter
G03762165
 Connection between the delivery pipe and fuel feed line
09353-24000 Fuel Pressure Gauge Connector
G03762166
 Connection between Fuel Pressure Gauge (09353-24100) and Fuel Pressure Gauge Adapter (09353-38000)
