Circuit Diagram

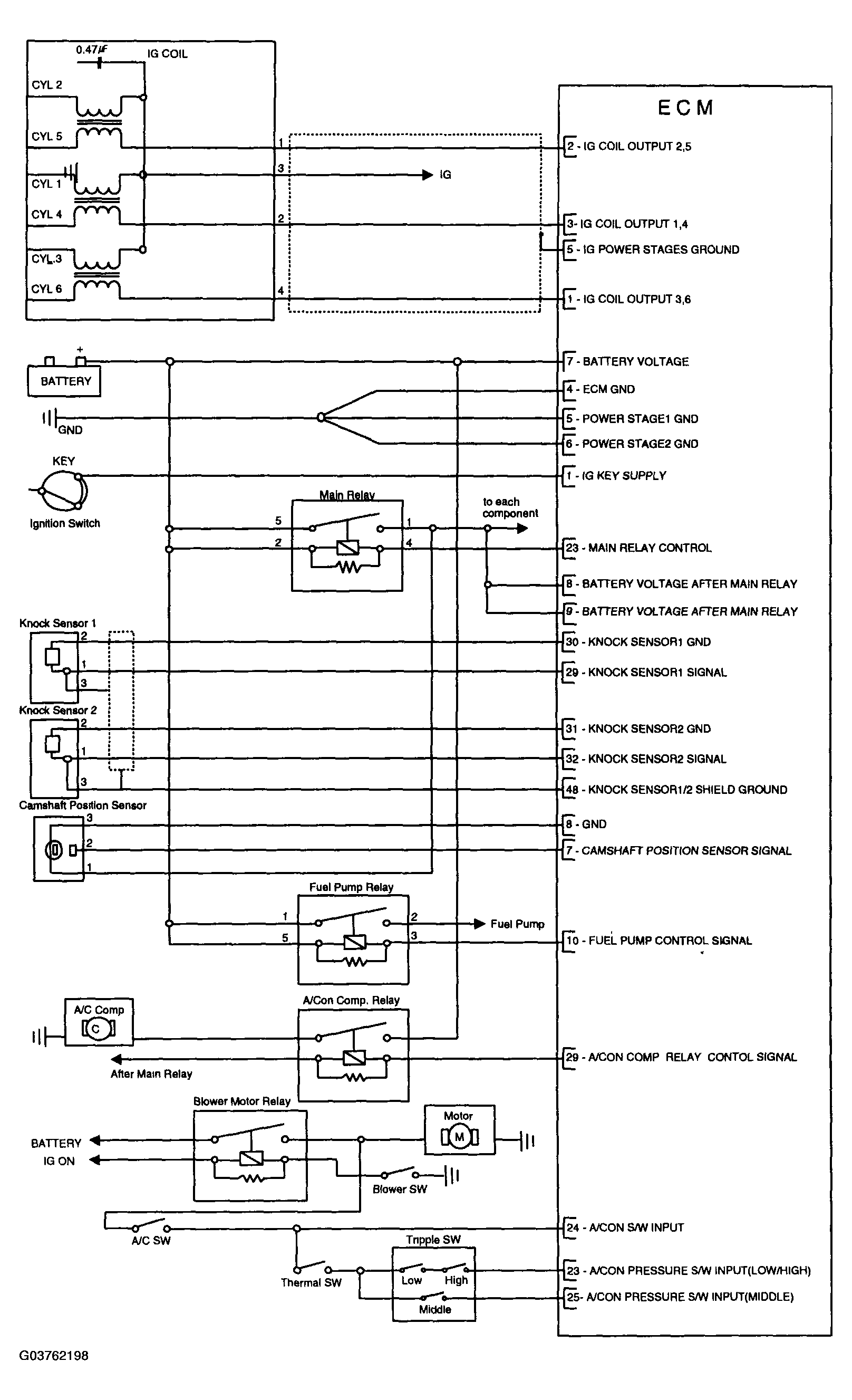

Fig 1: Gasoline Engine Control System Circuit Diagram (1 Of 3)
G03762198Courtesy of HYUNDAI MOTOR CO.

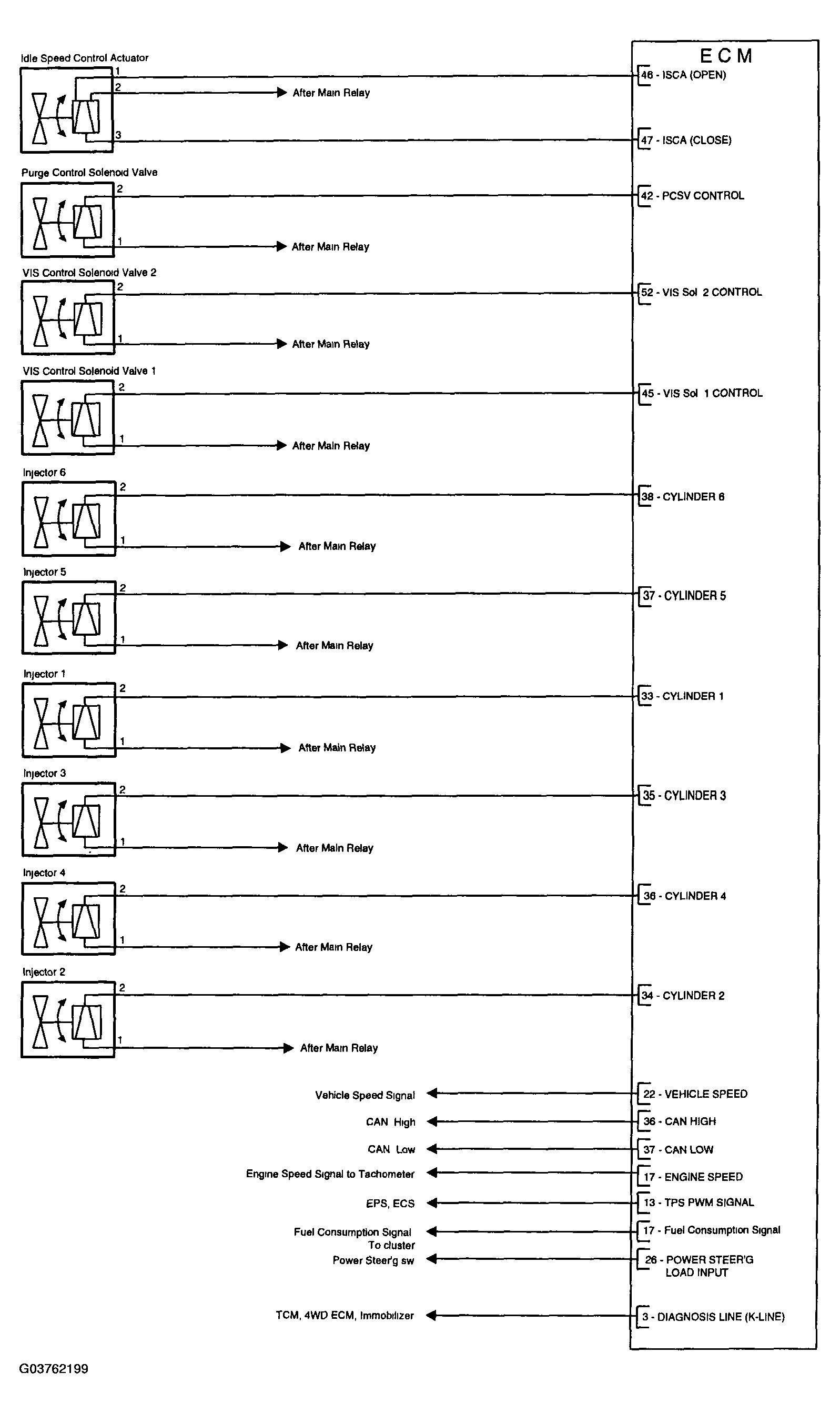

Fig 2: Gasoline Engine Control System Circuit Diagram (2 Of 3)
G03762199Courtesy of HYUNDAI MOTOR CO.

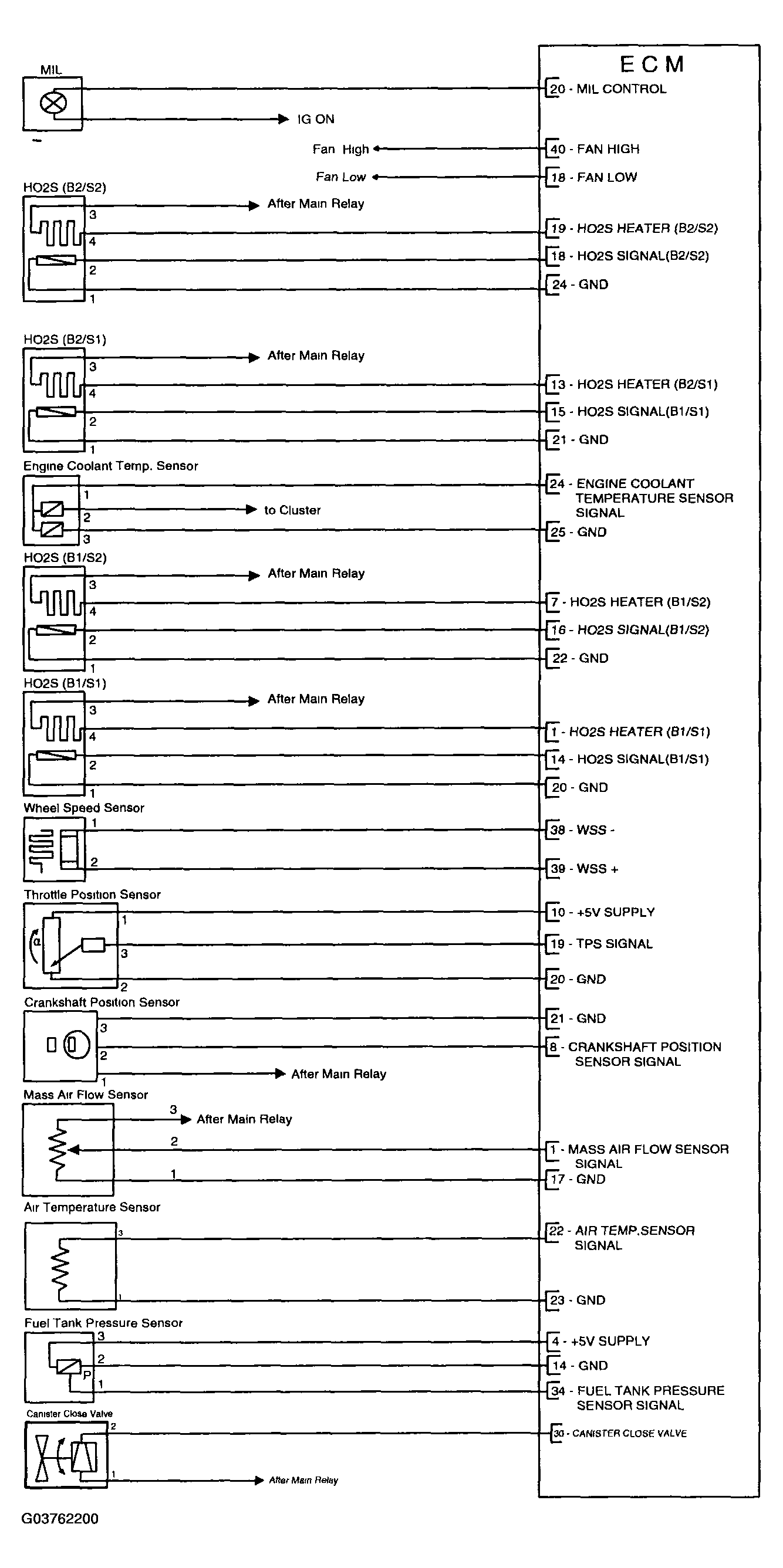

Fig 3: Gasoline Engine Control System Circuit Diagram (3 Of 3)
G03762200Courtesy of HYUNDAI MOTOR CO.
