Components Location

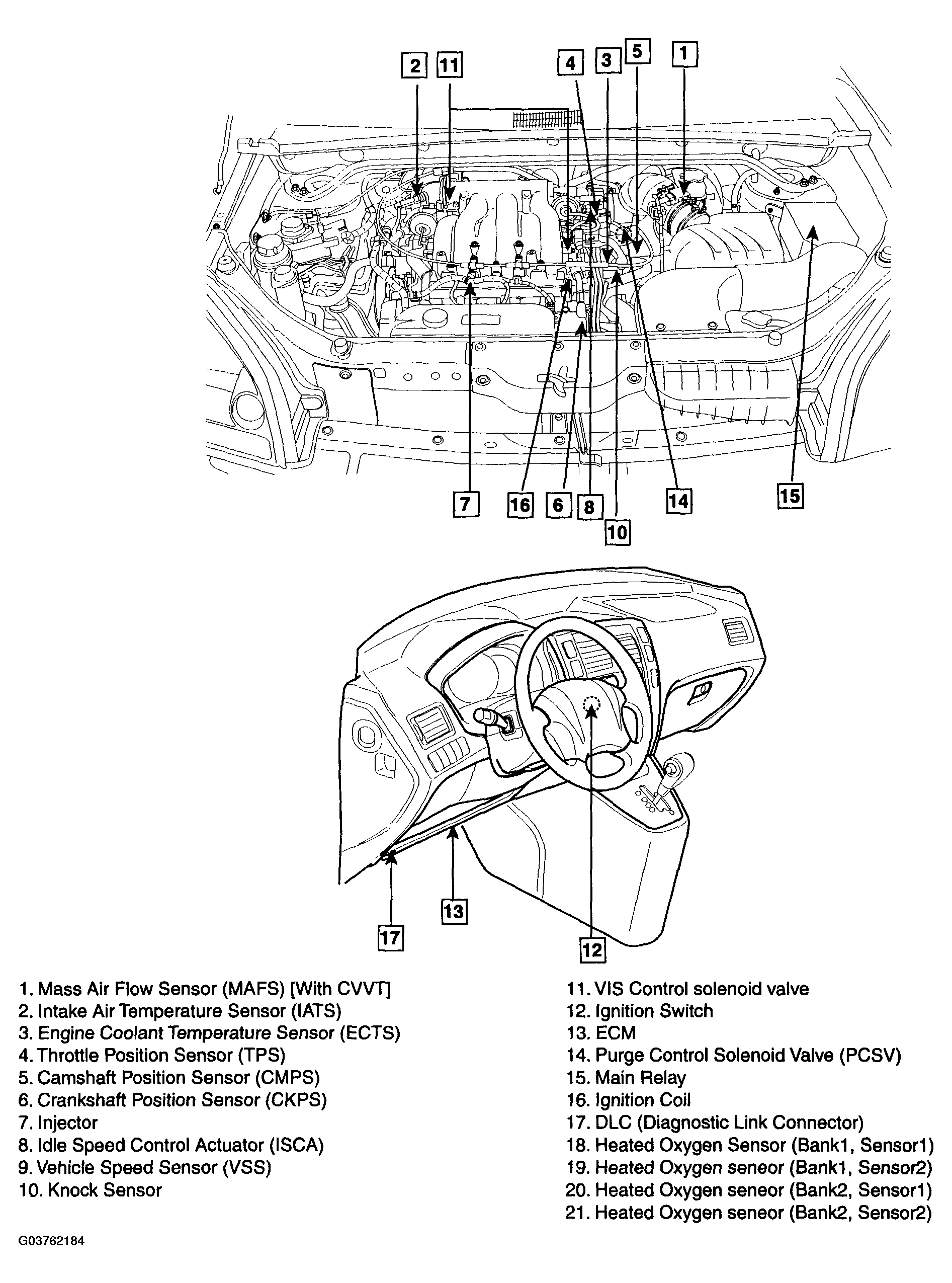

Fig 1: Component Locations (1 Of 4)
G03762184Courtesy of HYUNDAI MOTOR CO.

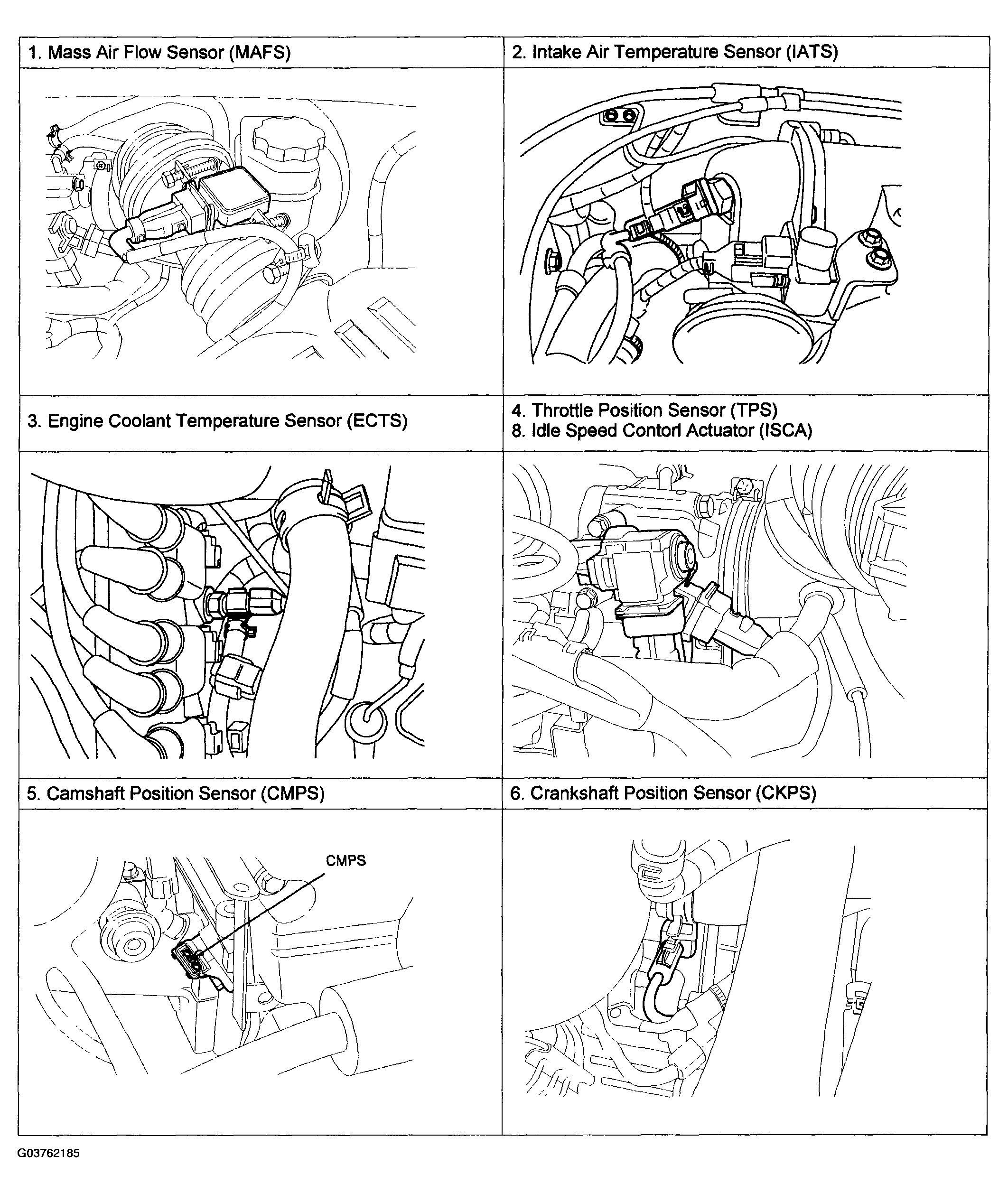

Fig 2: Component Locations (2 Of 4)
G03762185Courtesy of HYUNDAI MOTOR CO.

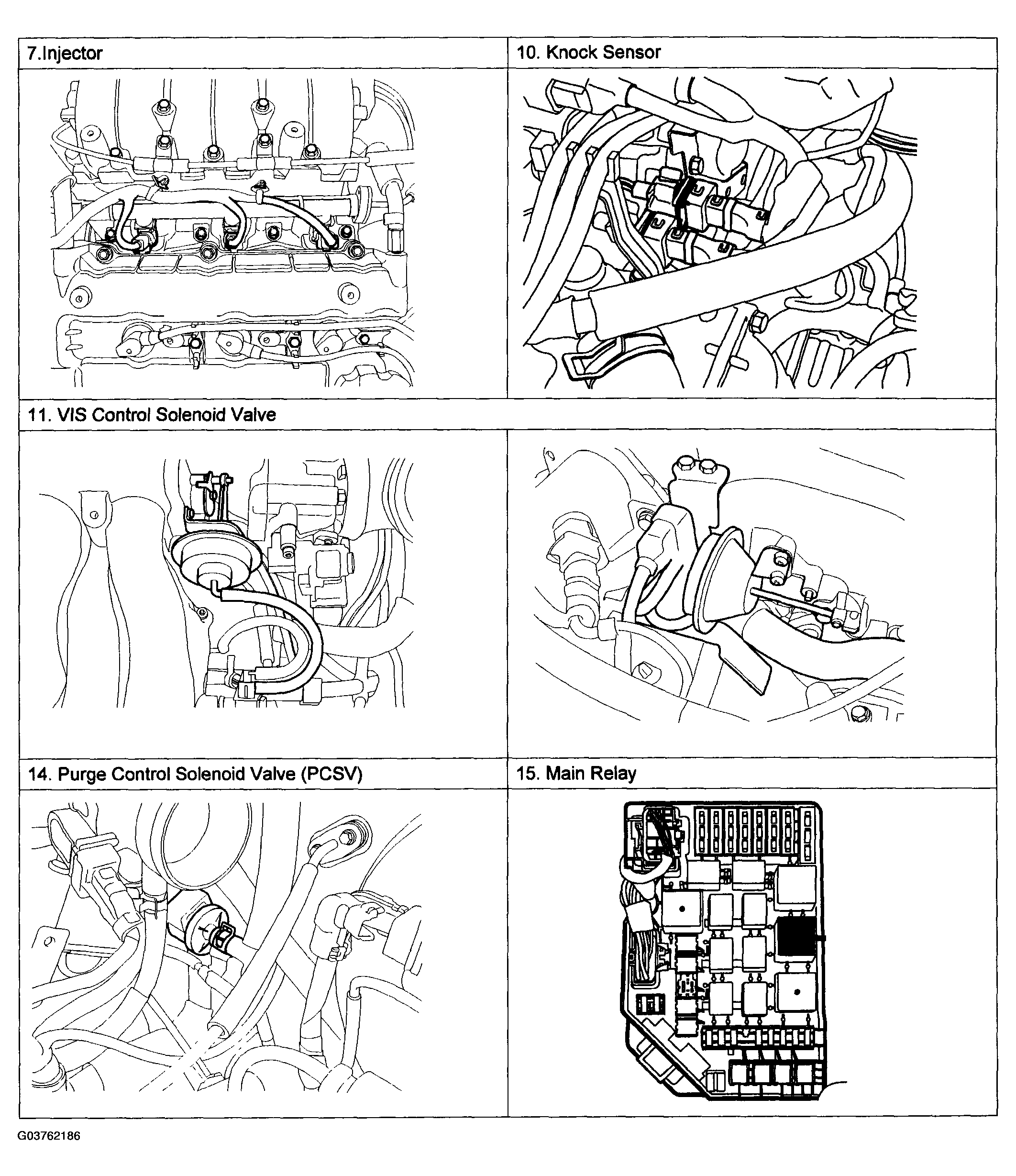

Fig 3: Component Locations (3 Of 4)
G03762186Courtesy of HYUNDAI MOTOR CO.

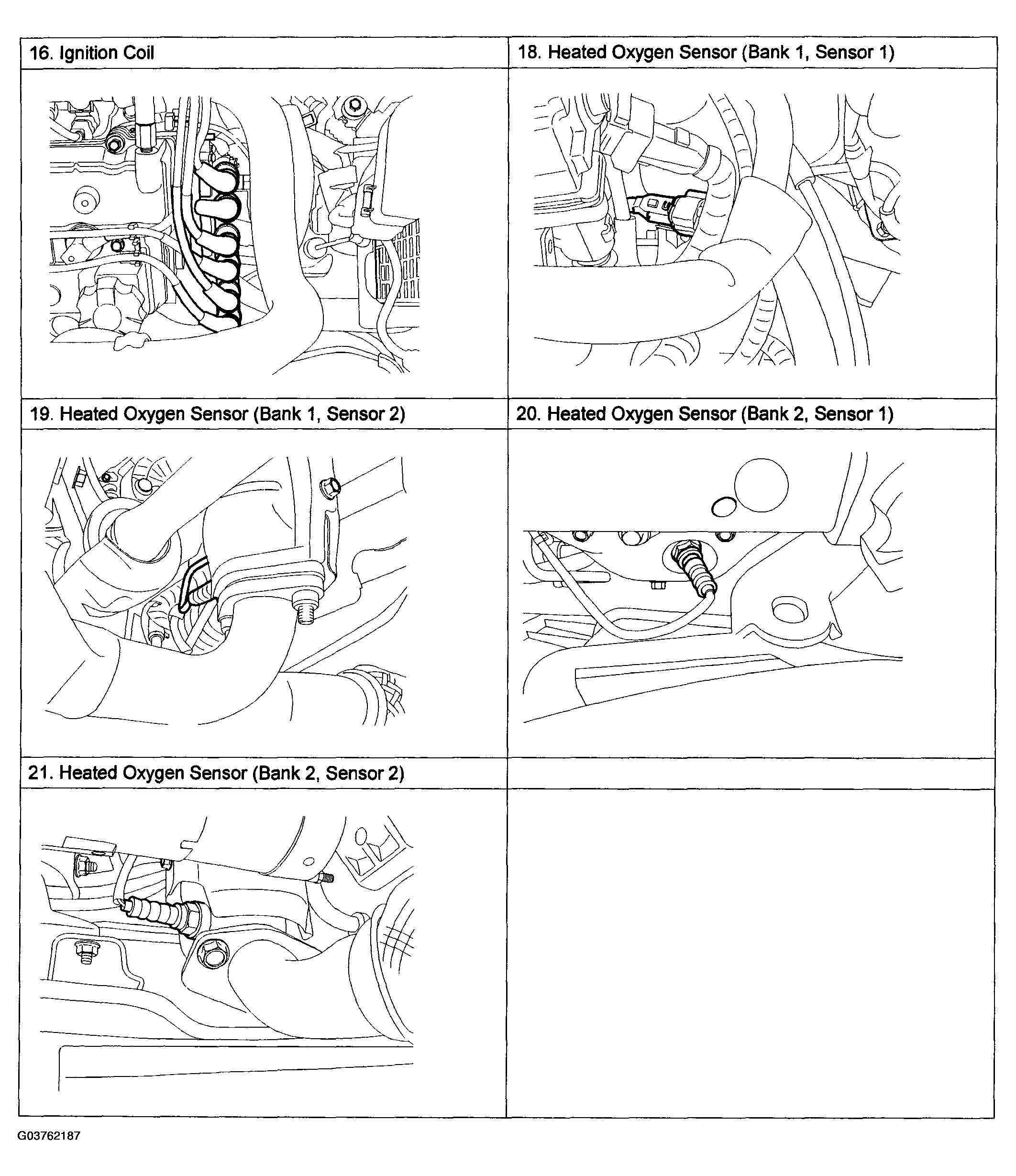

Fig 4: Component Locations (4 Of 4)
G03762187Courtesy of HYUNDAI MOTOR CO.
