Home >> Hyundai >> 2005 >> Tucson GLS, 4WD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G6BA - GSL 2.7L) >> Fuel Delivery System >> Components

Fuel Delivery System: Components

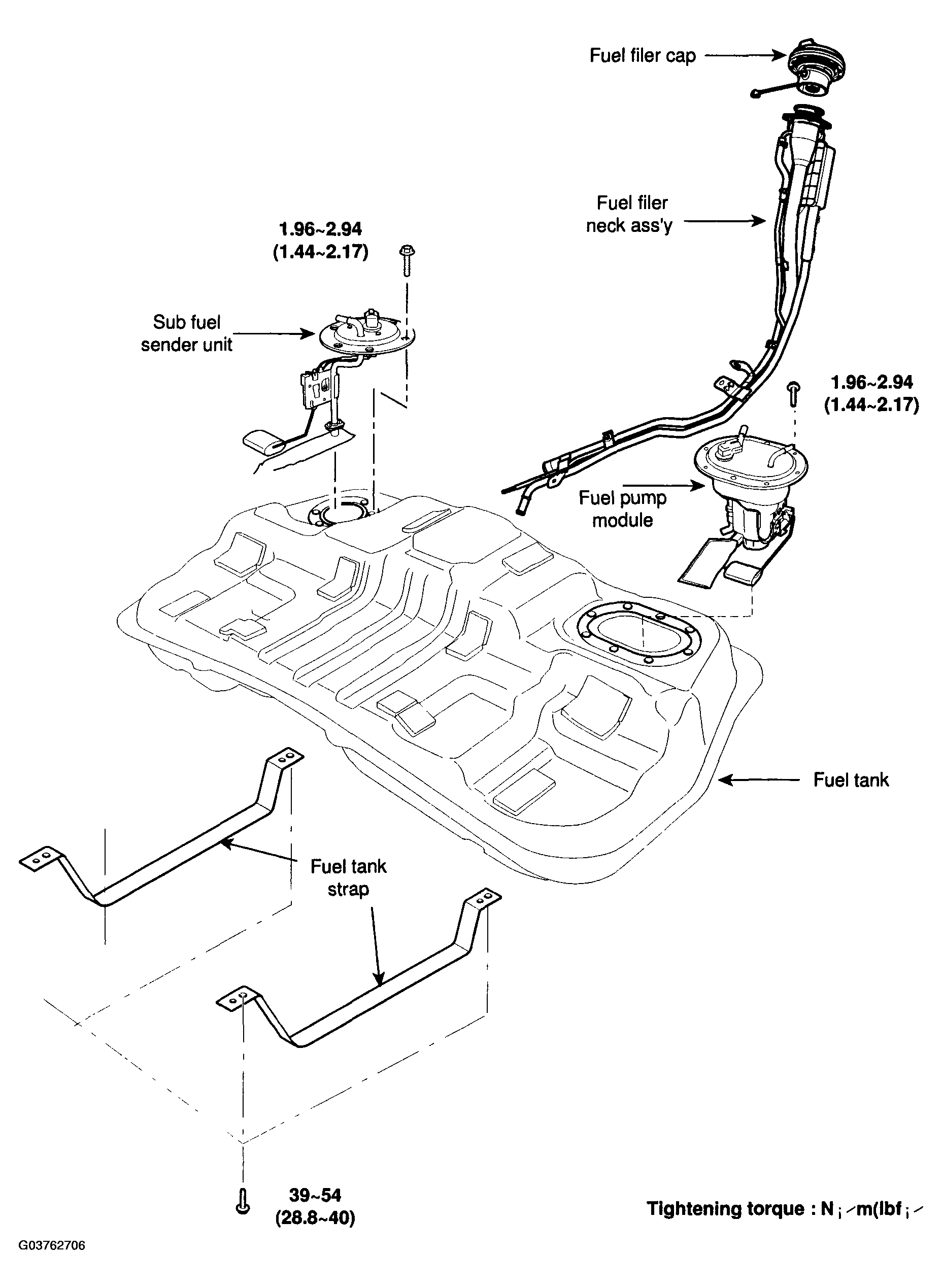

Fig 1: Fuel Delivery System Replacement Components With Torque Specifications

G03762706

Courtesy of HYUNDAI MOTOR CO.
