Crankcase Emission Control System: Components

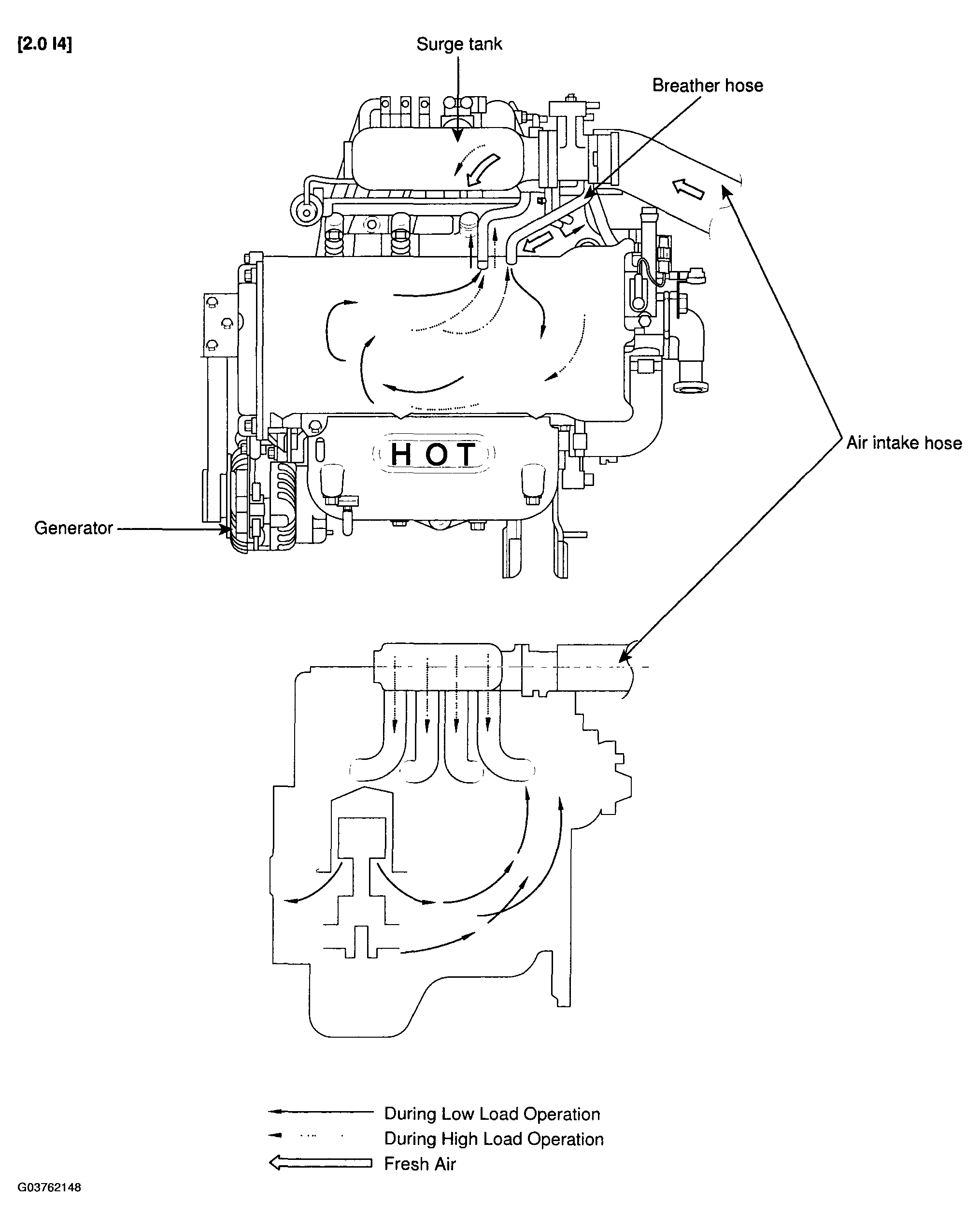

Fig 1: Identifying Crankcase Emission Control System Components (1 Of 2)
G03762148Courtesy of HYUNDAI MOTOR CO.

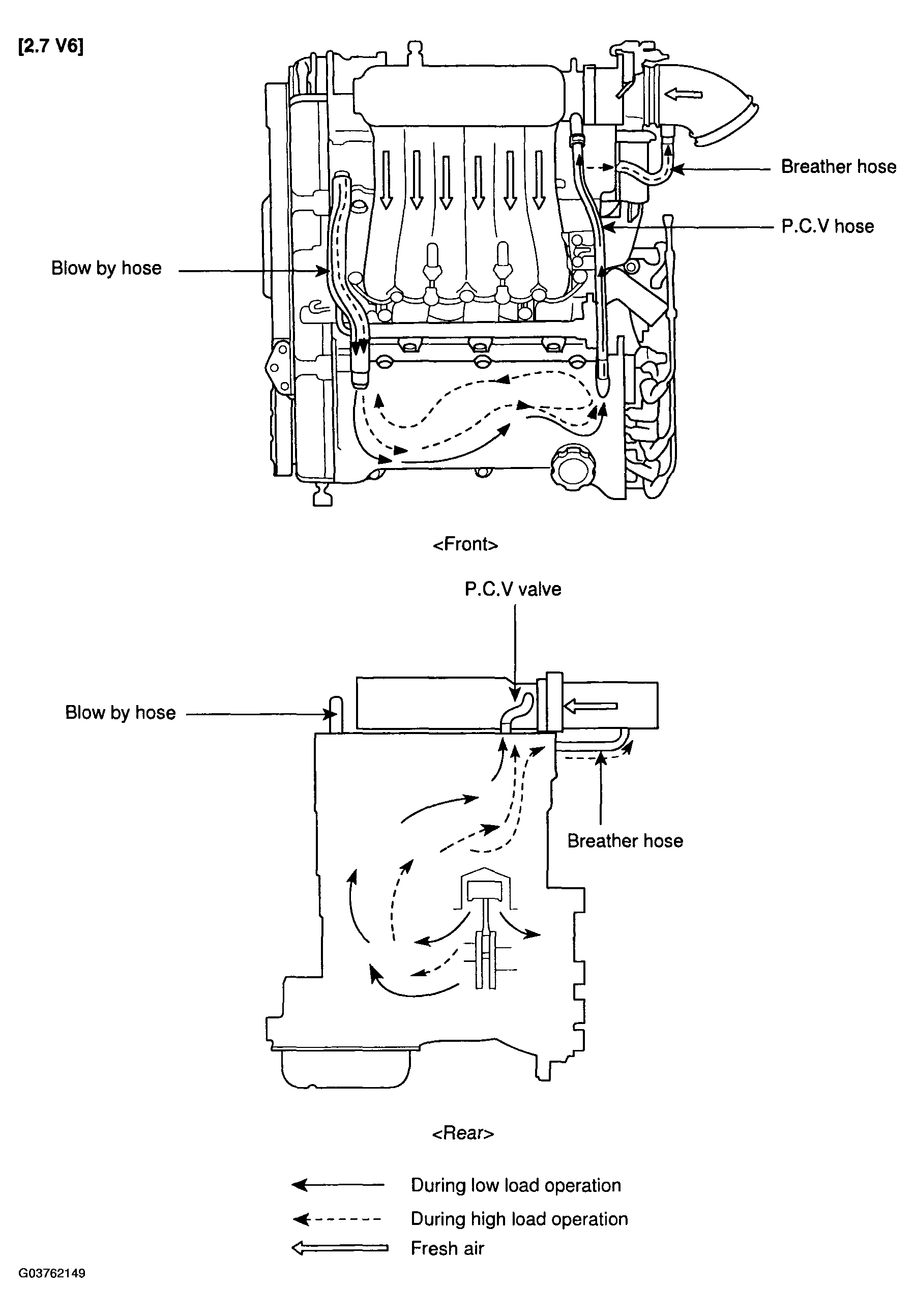

Fig 2: Identifying Crankcase Emission Control System Components (2 Of 2)
G03762149Courtesy of HYUNDAI MOTOR CO.
