Output Characteristic

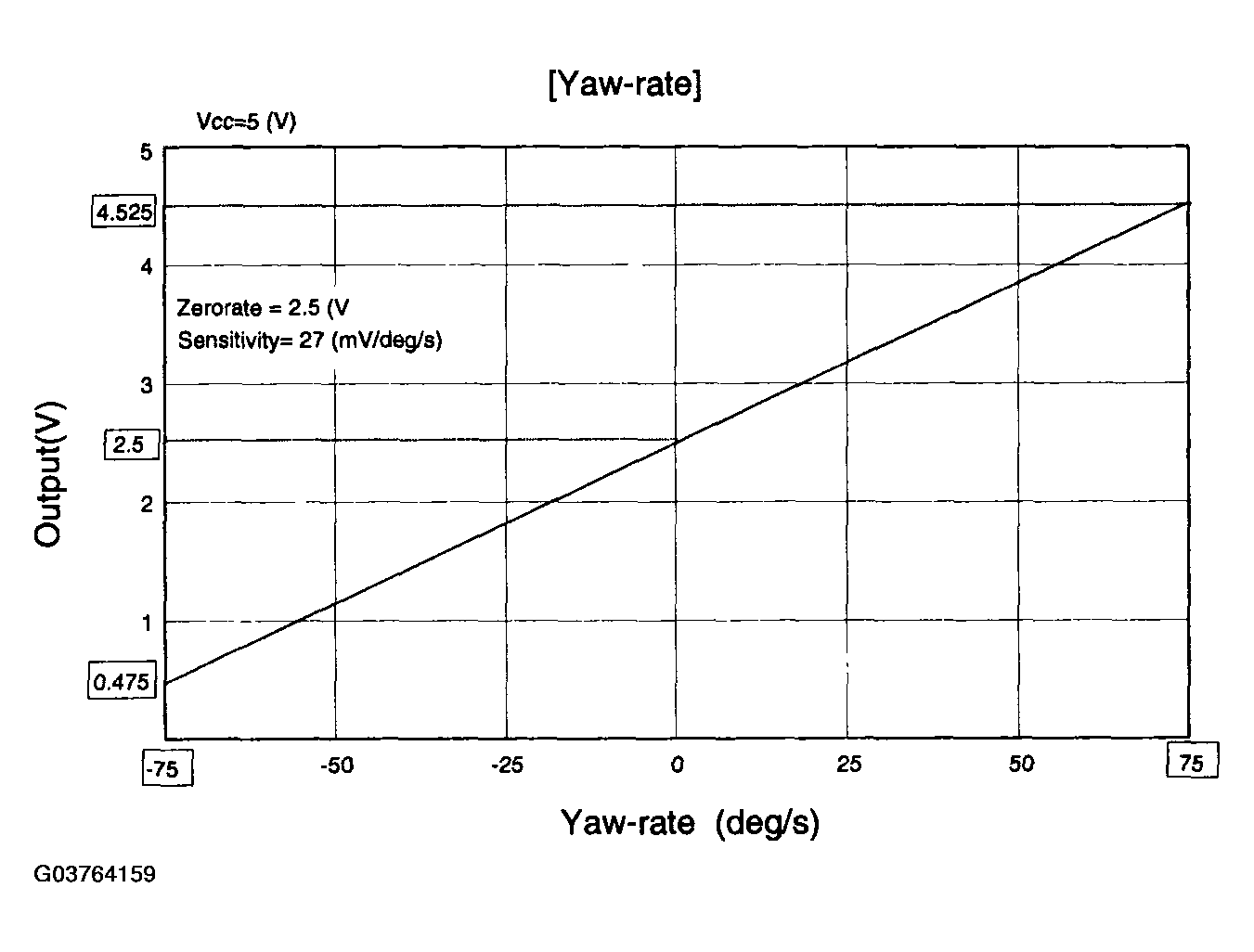

Fig 1: Output Graph (1 Of 2)

G03764159

Courtesy of HYUNDAI MOTOR CO.

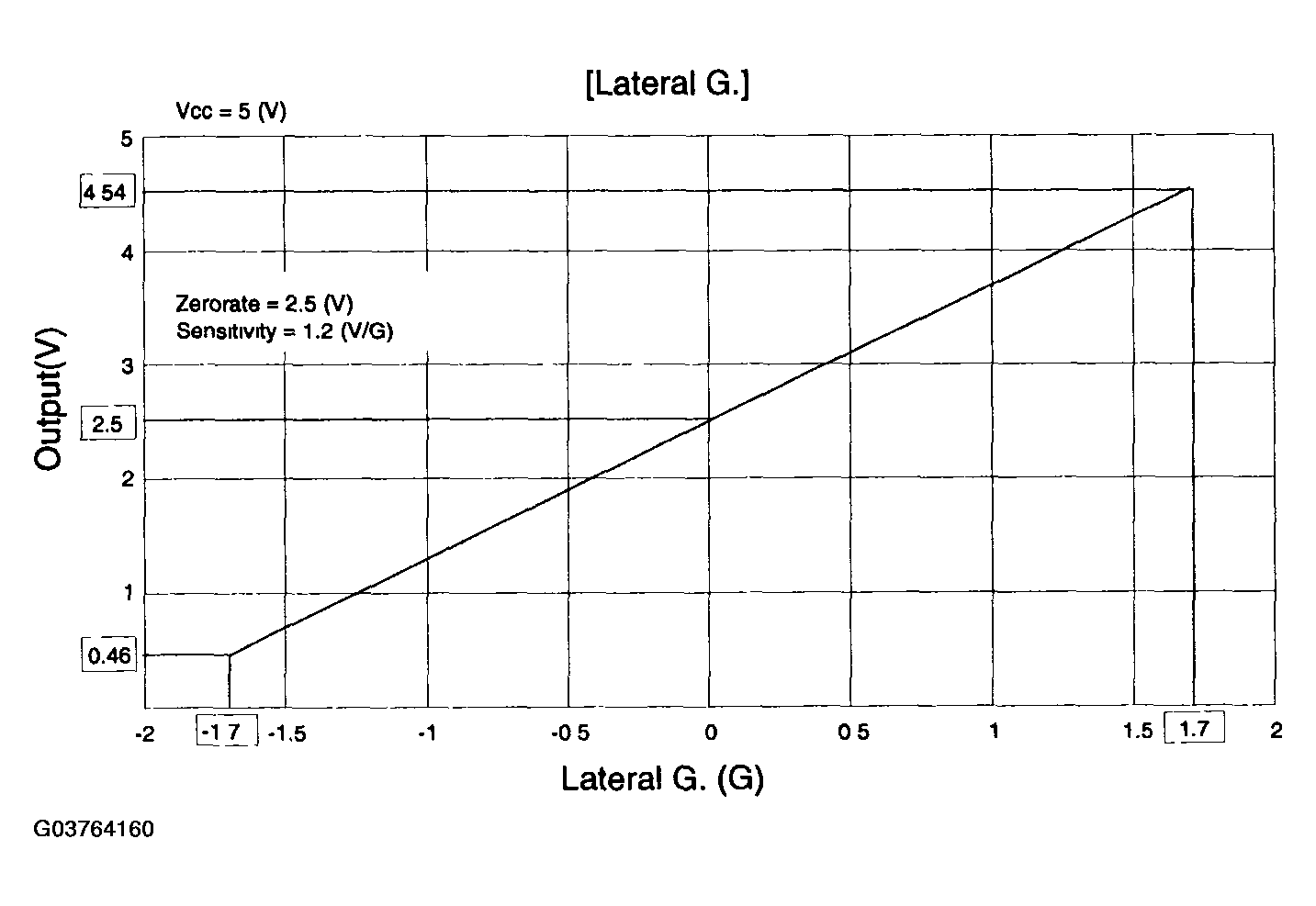

Fig 2: Output Graph (2 Of 2)

G03764160

Courtesy of HYUNDAI MOTOR CO.
