Guide Assembly Replacement

Remove the sunroof assembly (See SUNROOF ASSEMBLY REPLACEMENT ).
Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide (B) to rear.

Fig 1: Removing Guide Assembly
Courtesy of HYUNDAI MOTOR CO.

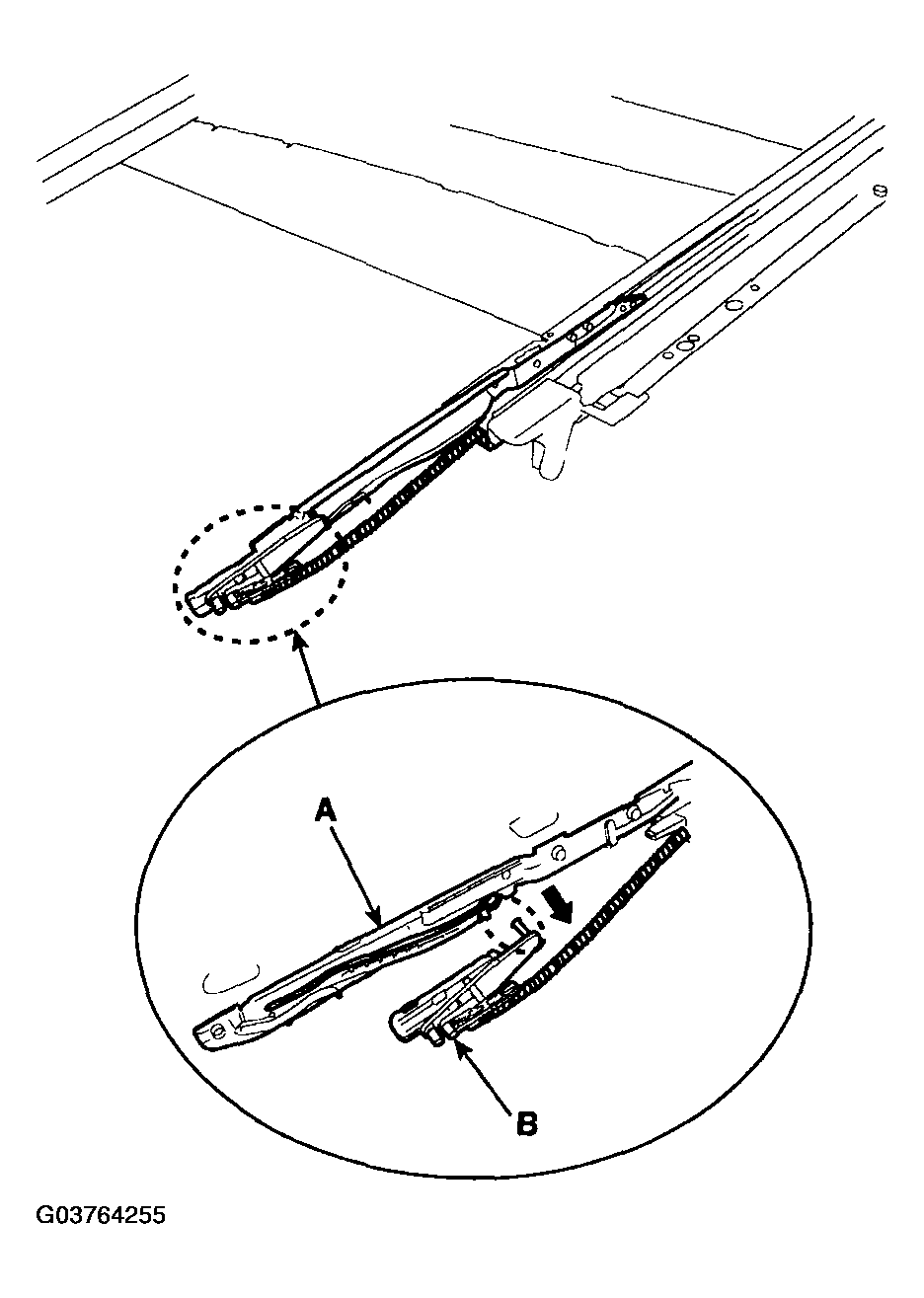

Remove the guide (A) and slide (B).

Fig 2: Removing Guide And Slide
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
CAUTION:
- Make sure to align the slide with the center of "A" and "B".
- Make sure to initialize the motor.
Fig 3: Aligning Slide With Center Of "A" and "B"
Courtesy of HYUNDAI MOTOR CO.
