Power Window Motor Replacement

  1. Remove the rear door trim (See REMOVE REAR DOOR TRIM ).
  2. Disconnect the power window motor connector (A).
  3. After loosening the mounting nut, remove the power window motor (B).

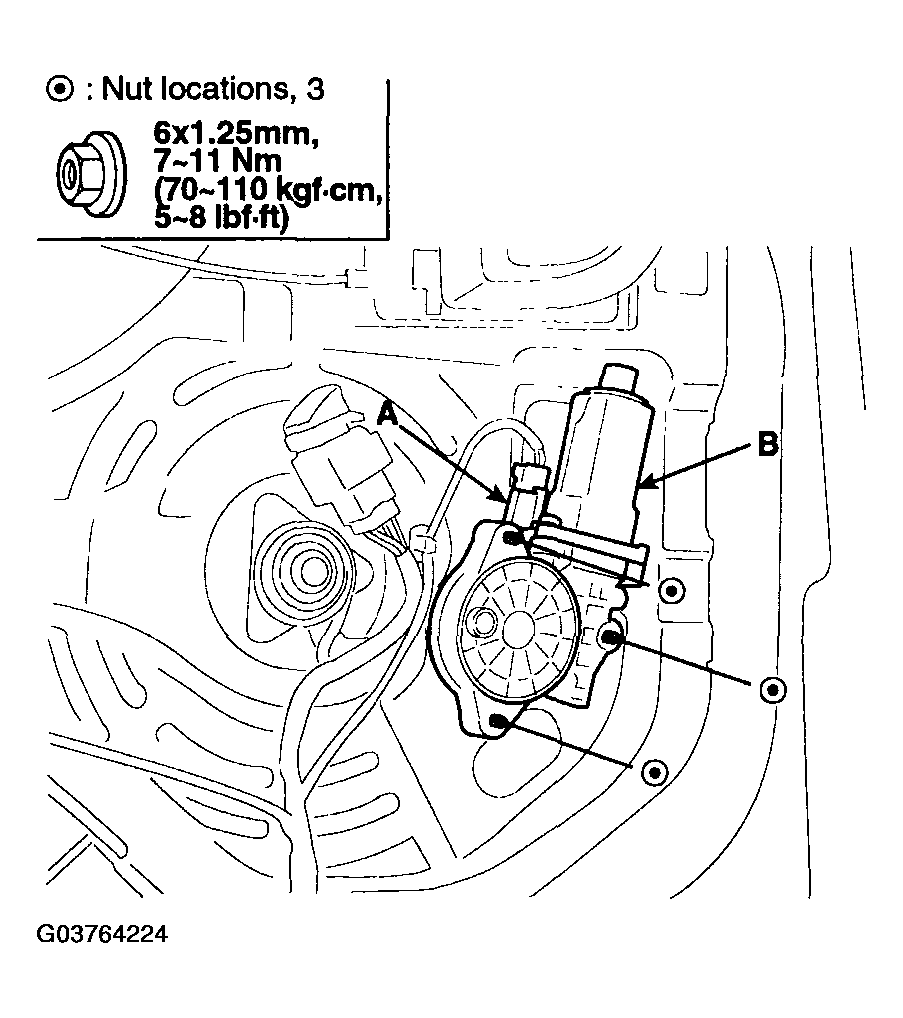

    Fig 1: Removing Power Window Motor & Connector
    G03764224Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure that there is no clearance between the glass and glass run channel when the glass is closed.
    • Adjust the position of the glass as necessary (See ADJUSTMENT ).
