Door Module Replacement

NOTE: Put on gloves to protect your hands.

Remove the front door trim (See FRONT DOOR TRIM )
Remove the glass (see GLASS REPLACEMENT ).
Disconnect the wiring harness (A).

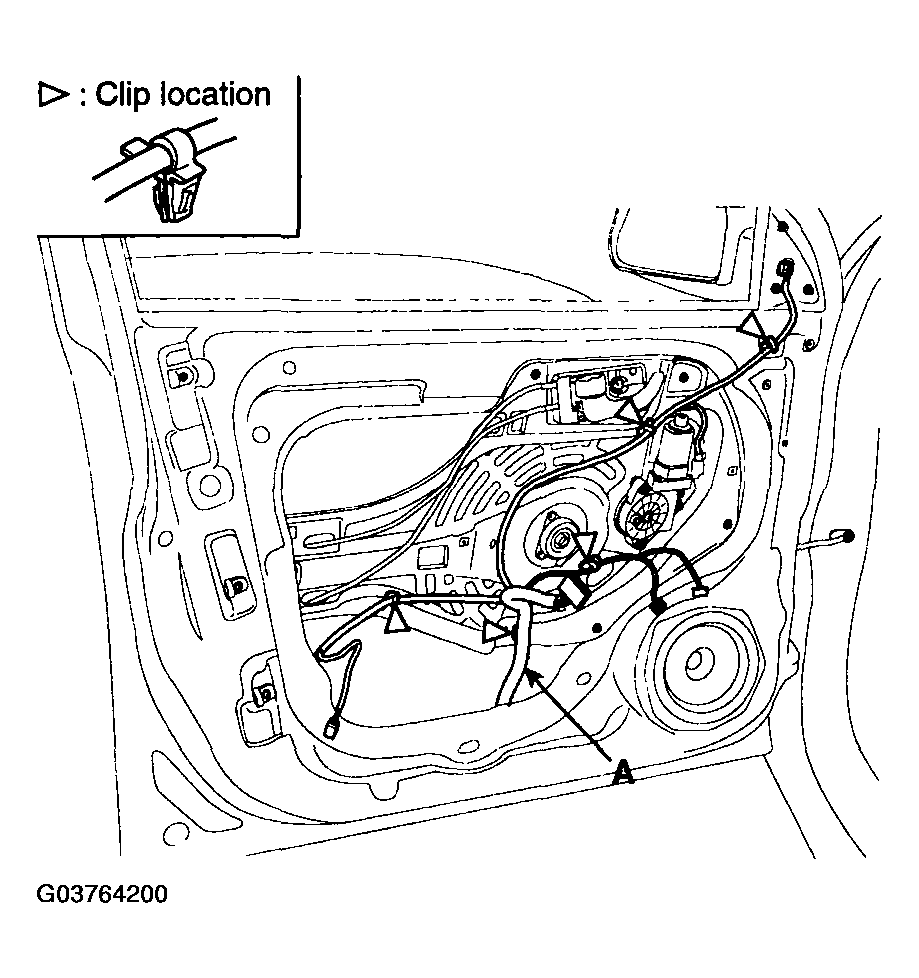

Fig 1: Disconnecting Wiring Harness
Courtesy of HYUNDAI MOTOR CO.
Disconnect the lock rod (A) and outside handle rod (B).
Remove the door module (C).

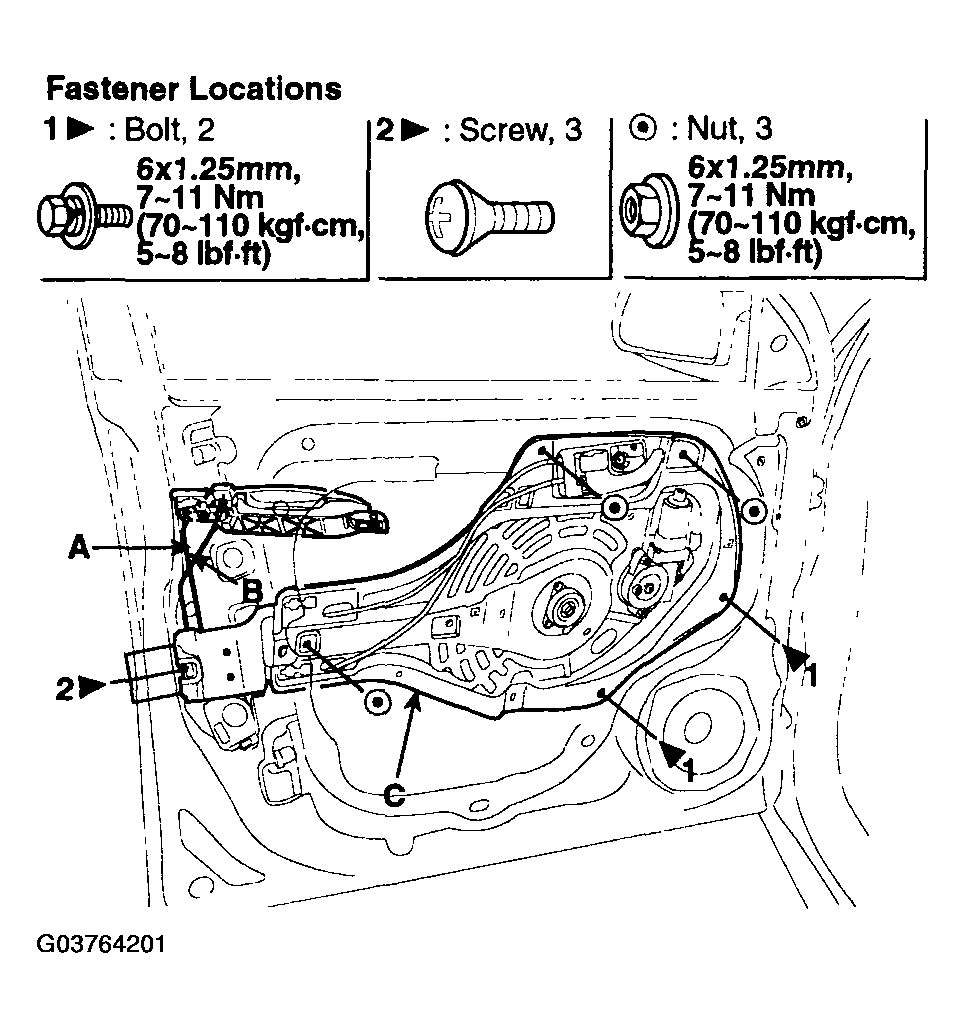

Fig 2: Removing Lock Rod, Outside Handle Rod & Door Module
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse or removal.
NOTE:
- Make sure the connectors is plugged in properly and each cable is connected securely.
- Make sure the door locks and opens properly.
- Roll the glass and down to see if it moves freely without binding.
