Cruise REMOCON Switch Test

Disconnect the battery negative cable, then disconnect the positive cable, and wait at least three minutes.
Remove the driver's airbag (See RESTRAINTS ).
Disconnect the remocon switch connector (A).

Fig 1: Disconnecting Remocon Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Check the continuity between the terminals of the connector in each switch position according to the table.
- If there is continuity, and it matches the table, the switch is O.K.
- If there is no continuity, replace the remocon switch.

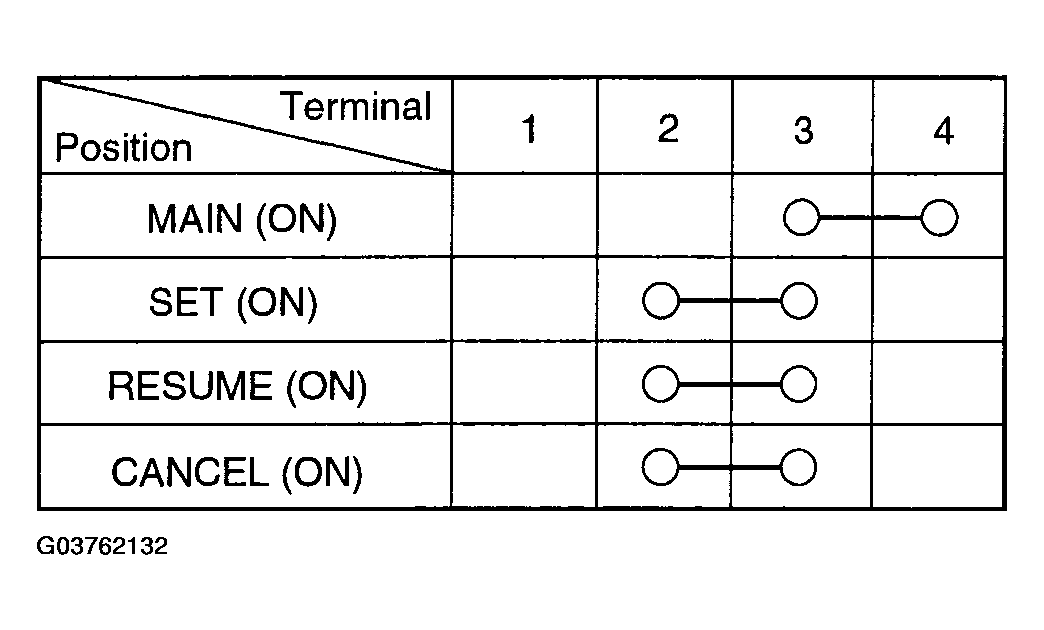

  Fig 2: Checking Remocon Switch Continuity
  Courtesy of HYUNDAI MOTOR CO.

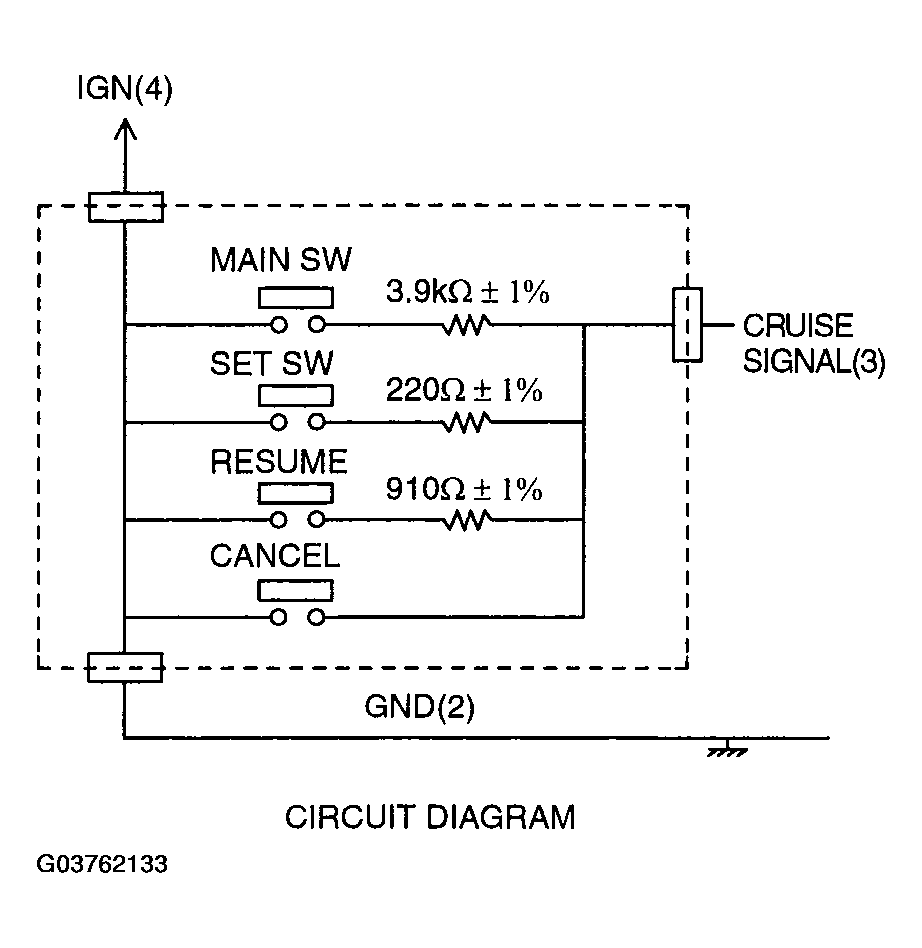

  Fig 3: Circuit Diagram
  Courtesy of HYUNDAI MOTOR CO.
