Fuel Delivery System: Components

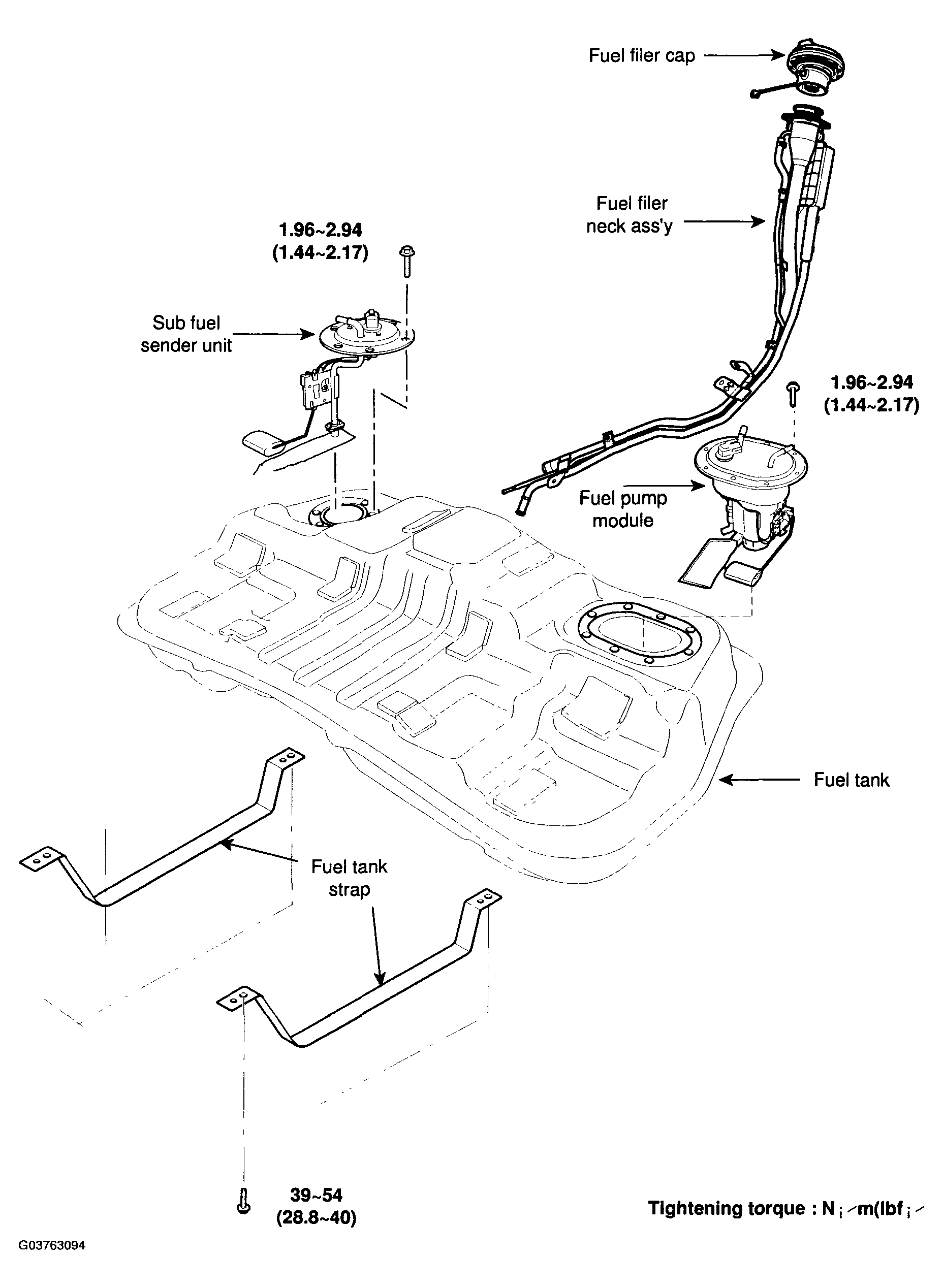

Fig 1: Fuel Delivery System Replacement Components With Torque Specifications

G03763094

Courtesy of HYUNDAI MOTOR CO.
