Hood Replacement: Notes
NOTE:
- When removing and installing the hood, an assistant is necessary.
- Take care not to damage the hood and body.
- When removing the clips, use a clip remover.

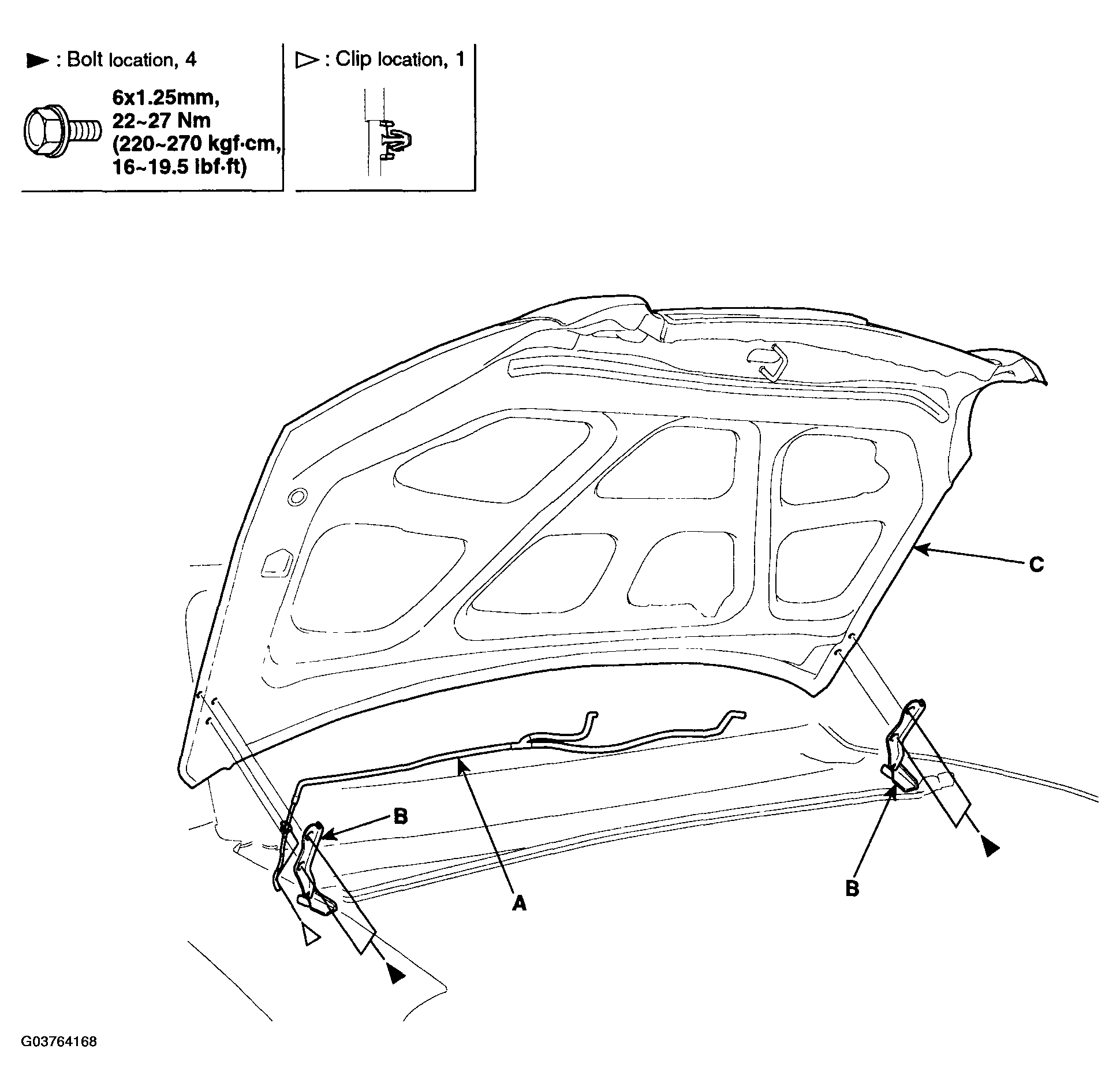

- Disconnect the windshield washer nozzle connecting tube (A).
- After loosening the hood hinge (B) mounting bolts, remove the hood (C).
- Installation is the reverse of removal.NOTE:
- Make sure the hood opens properly and locks securely.
- Adjust the hood alignment (See ADJUSTMENT ).
