Speaker Replacement

  1. Remove the door trim (See FRONT DOOR TRIM )
  2. Disconnect the speaker connector (A), and remove the speaker (B).

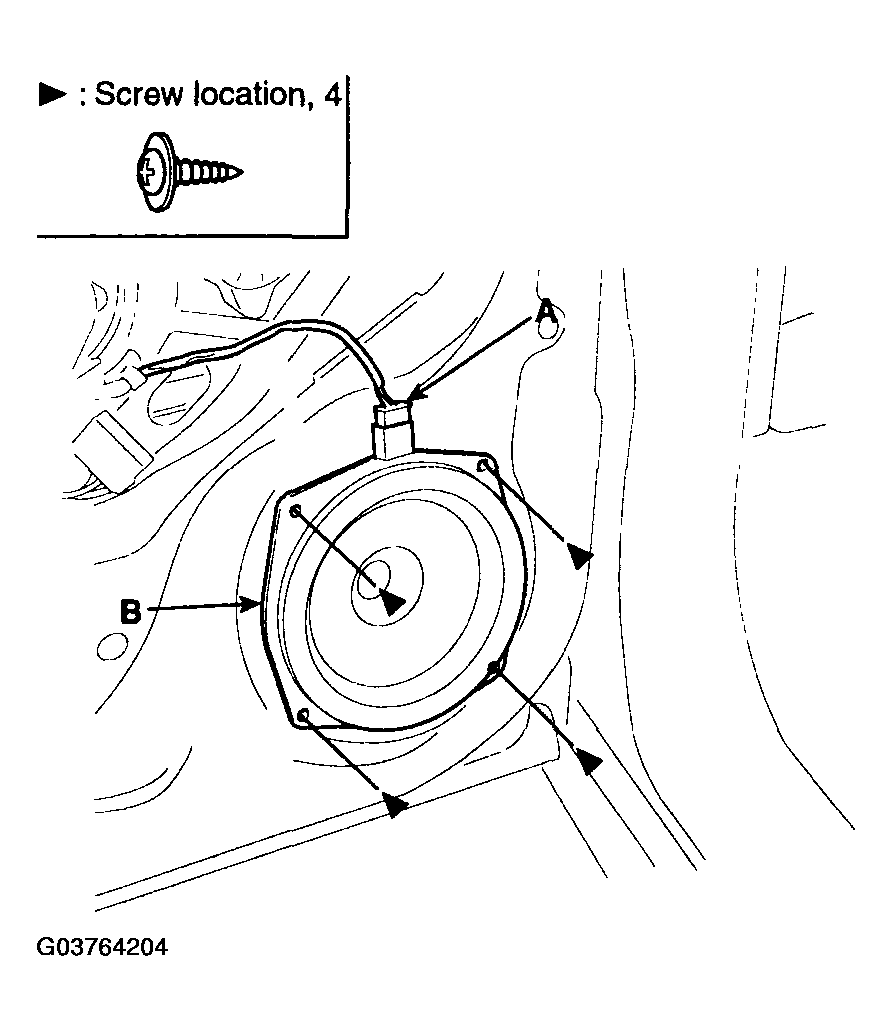

    Fig 1: Disconnecting Speaker Connector And Speaker
    G03764204Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
