Monitor Scan Tool Data

Connect scan tool to data link connector (DLC).
Engine "ON".
Monitor the "ENGINE SPEED, INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, GEAR POSITION" parameter on the scan tool.

Perform the "STALL TEST" with gear position "2".

Specification: 2000~2700 engine RPM

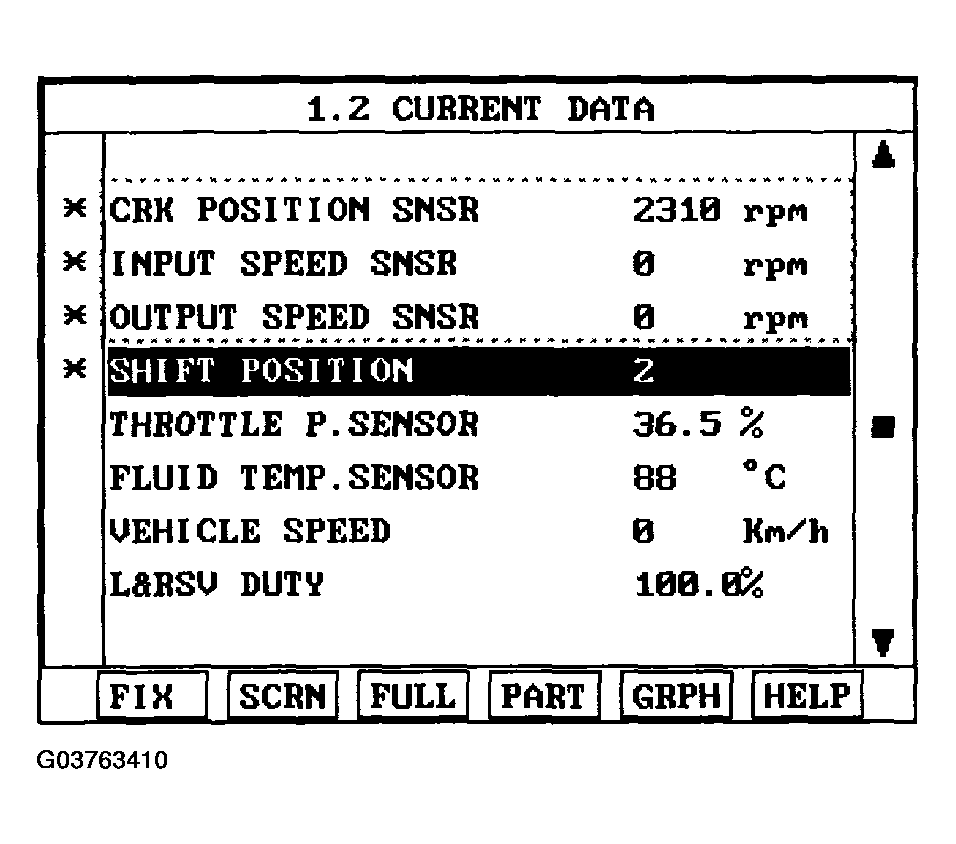

Fig 1: Performing Stall Test

G03763410

Courtesy of HYUNDAI MOTOR CO.

OPERATING ELEMENT OF EACH SHIFTING RANGE

OPERATING ELEMENT OF EACH SHIFTING RANGE

	UD/C	OD/C	REV/C	2ND/B	LR/B	OWC
P					X
R			X		X
N					X
D1	X				X	O
D2	X			X
D3	X	X
D4		X		X
* Low & Reverse Brake is released When the Vehicle speed over the 5 MPH (7Km/h).

Stall test procedure in D2 and reason

Procedure

Warm up the engine
After positioning the select lever in "D", depress the foot brake pedal fully after that, depress the accelerator pedal to the maximum
* The slippage of 1st gear operating parts can be detected by stall test in D2

Reason for stall test

If there is no mechanical defaults in A/T, every slippage occur in torque converter.
Therefore, engine revolution is output, but input and output speed revolution must be "zero" due to wheel's lock.
If 2nd brake system (2nd gear operating part) has faults, input speed revolution will be out of specification.
If output speed revolution is output. It means that the foot brake force is not applied fully. Remeasuring is required.

Is "STALL TEST" within specification?
YES
- Refer to SIGNAL CIRCUIT INSPECTION .
NO
- Refer to COMPONENT INSPECTION .
  CAUTION:
  - Do not let anybody stand in front of or behind the vehicle while this test is being carried out.
  - Check the A/T fluid level and temperature and the engine coolant temperature.

    Fluid level: At the hot mark on the oil level gauge.

    Fluid temperature: 176 °F ~ 212 °F (80~100 °C).

    Engine coolant temperature: 176 °F ~ 212 °F (80~100 °C).
  - Chock both rear wheel (left and right).
  - Pull the parking brake lever on with the brake pedal fully depressed.
  - The throttle should not be left fully open for more than eight seconds.
  - If carrying out the stall test two or more time, move the select lever to the "N" position and run the engine at 1,000 RPM to let the A/T fluid cool down before carrying out subsequent.
