Fuel Tank: Removal

CAUTION: When lifting up or down vehicle, be sure to place blocks between vehicle and lifter to prevent fuel tank from being damaged.
Fig 1: Lifting Vehicle
G03763100Courtesy of HYUNDAI MOTOR CO.
  1. Remove front muffler and main muffler assembly.
  2. Remove propeller shaft assembly (4WD only).
  3. Remove fuel tank under cover.
  4. Remove clamp (3EA) for fuel filler hose (A), leveling hose (B) and ventilation (C).

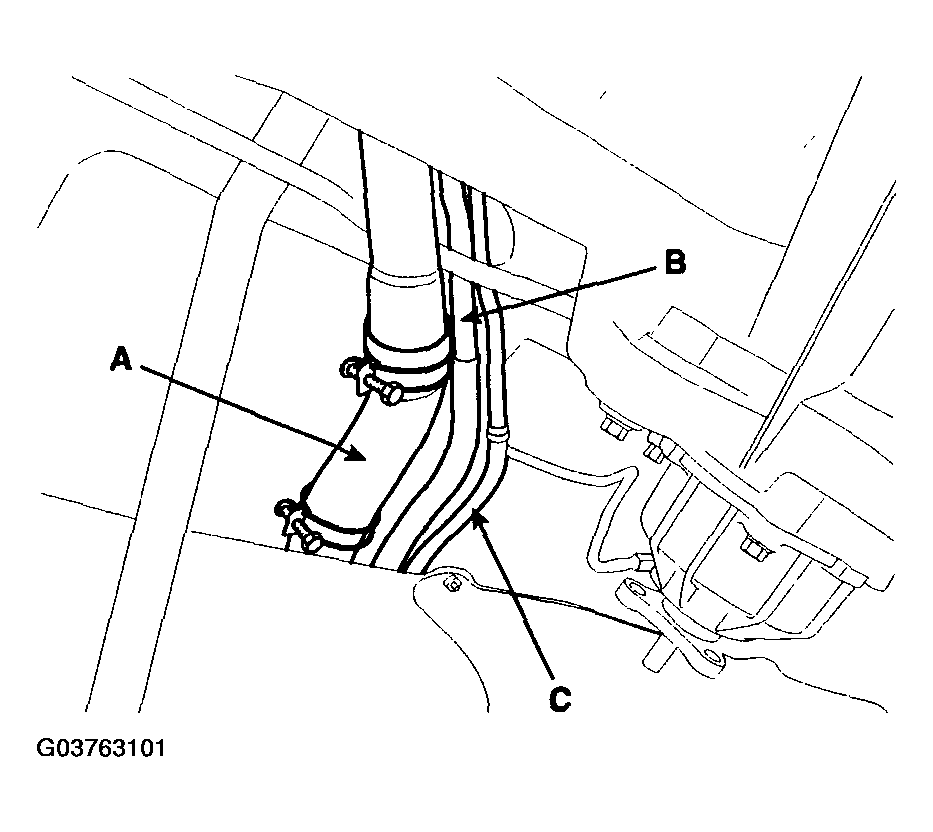

    Fig 2: Identifying Fuel Filler Hose, Leveling Hose & Ventilation
    G03763101Courtesy of HYUNDAI MOTOR CO.
  5. Support fuel tank with jack and remove fuel tank straps (2EA).

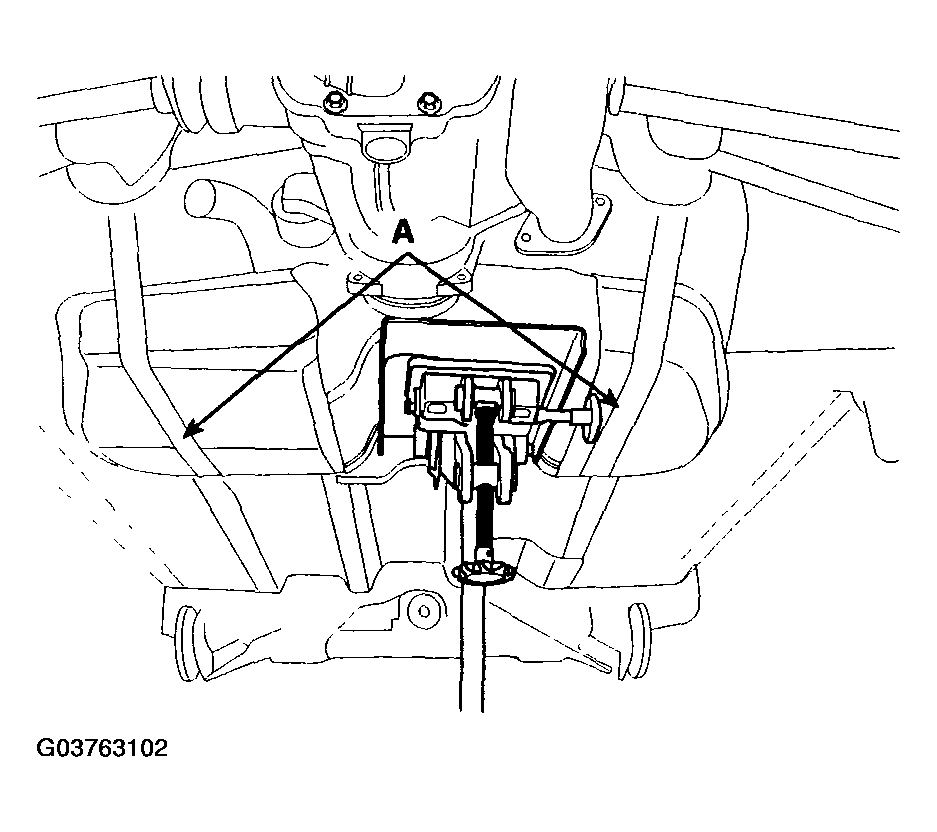

    Fig 3: Removing Fuel Tank Straps
    G03763102Courtesy of HYUNDAI MOTOR CO.
  6. Unfasten parking brake cable mounting bolts (2EA) in each right and left sides.

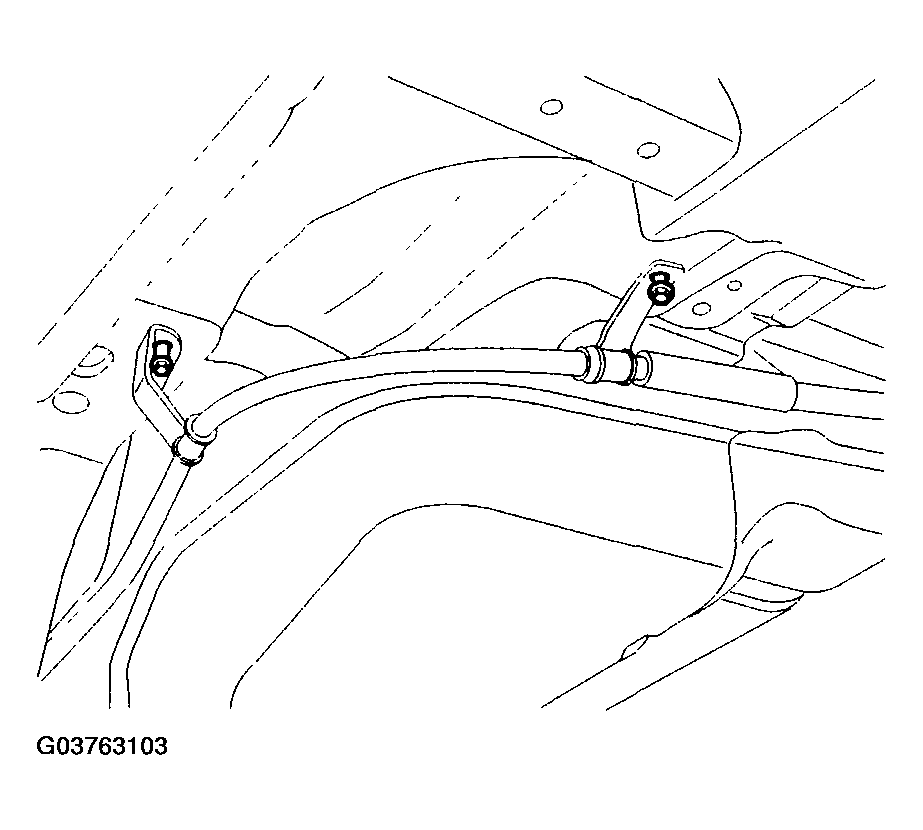

    Fig 4: Removing Parking Brake Cable Mounting Bolts
    G03763103Courtesy of HYUNDAI MOTOR CO.
  7. Lifting down fuel tank slowly, remove fuel pump wiring connector, and then main fuel hose and return fuel hose connected to fuel tank.
  8. Disconnect fuel sender wiring connector.
  9. Remove fuel tank.
