Key Holder Replacement

  1. Remove the tailgate trim (See TAILGATE TRIM REPLACEMENT ).
  2. Remove the tailgate garnish (See TAILGATE GARNISH REPLACEMENT )
  3. Disconnect the key rod (A) and connector.
  4. Remove the key holder (B).

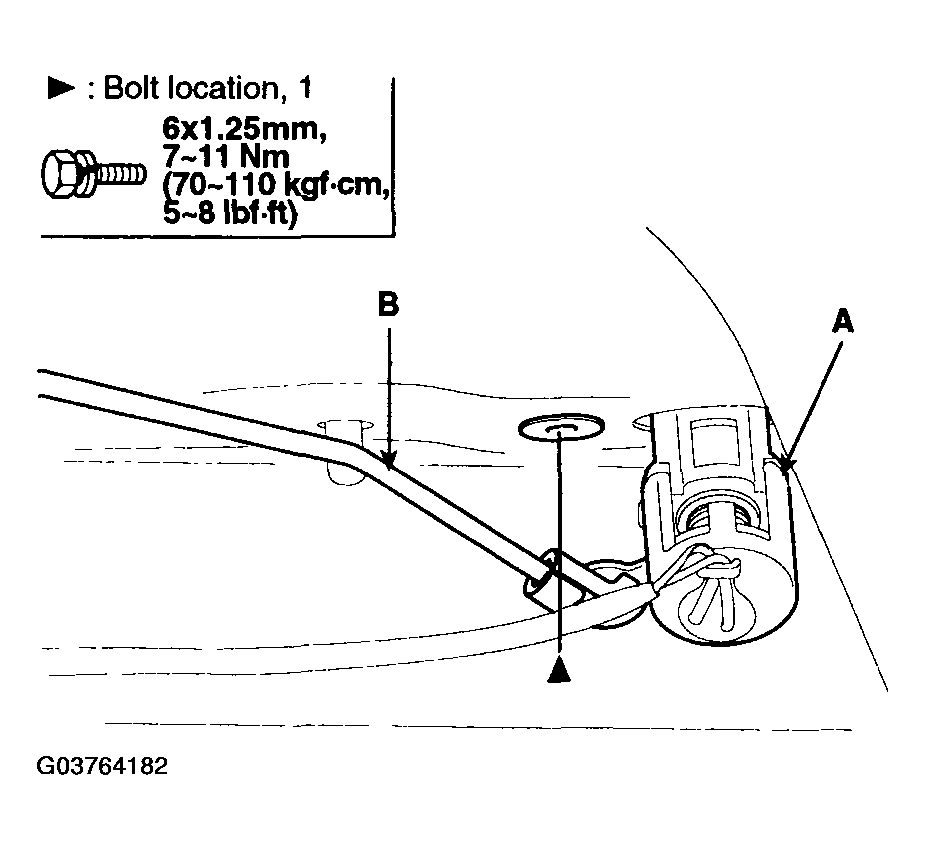

    Fig 1: Removing Key Rod & Key Holder
    G03764182Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
    NOTE: Make sure the tailgate glass opens properly and locks securely.
