Brake Switch Test

  1. Disconnect the connector (A) from the brake switch.
  2. Remove the brake switch (B).

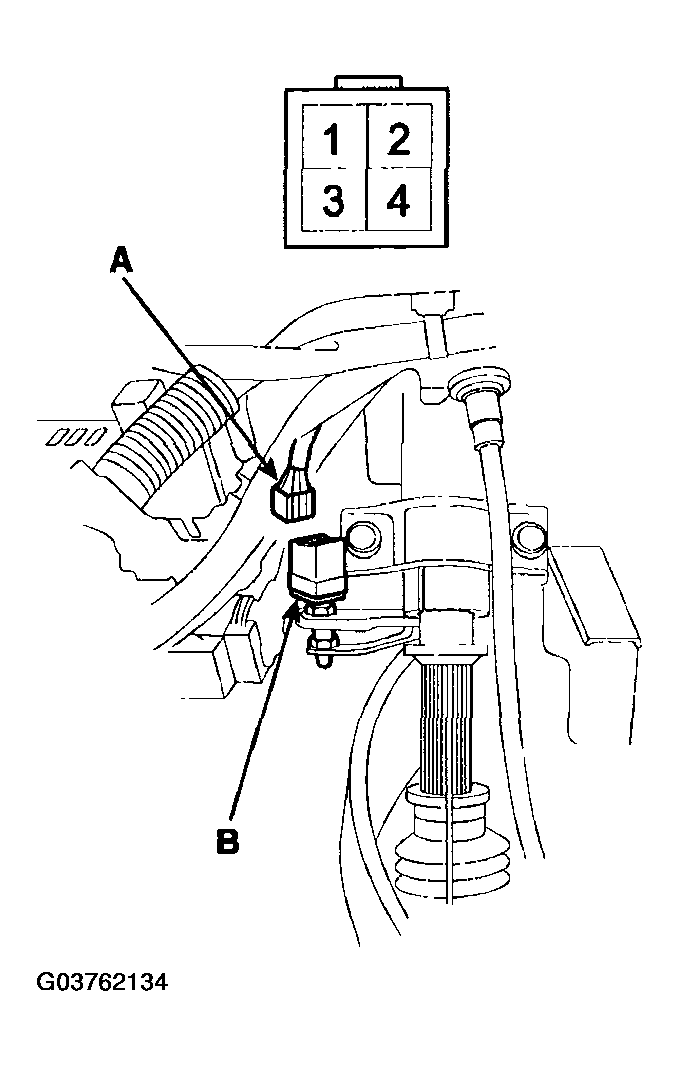

    Fig 1: Disconnecting Connector From Brake Switch
    G03762134Courtesy of HYUNDAI MOTOR CO.
  3. Check for continuity between the terminals according to the table.
    Fig 2: Checking Brake Switch Continuity
    G03762135Courtesy of HYUNDAI MOTOR CO.
  4. If necessary, replace the switch or adjust the switch.
