Timing Belt: Component

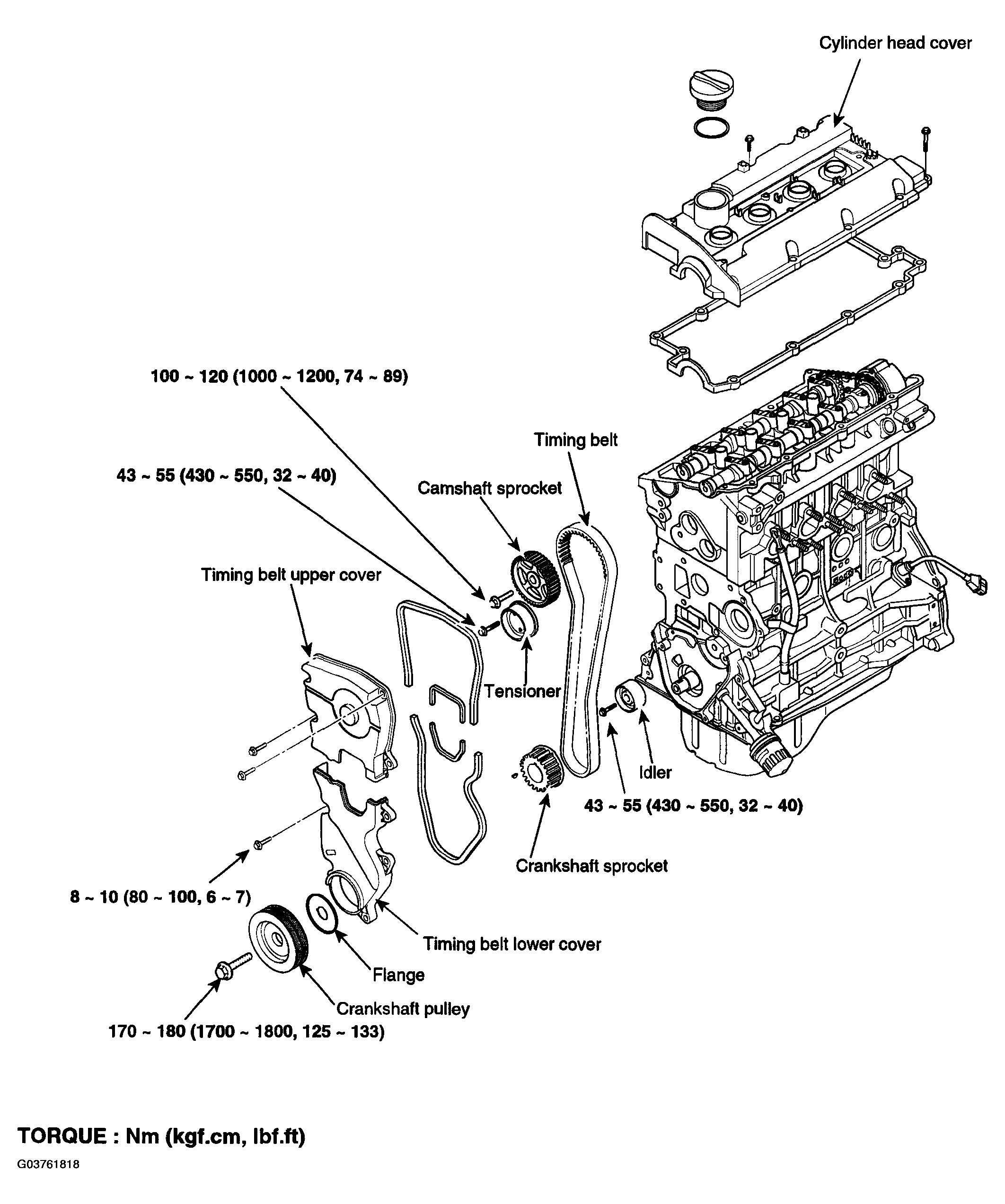

Fig 1: Timing System Replacement Components With Torque Specifications

G03761818

Courtesy of HYUNDAI MOTOR CO.
