Intake Manifold

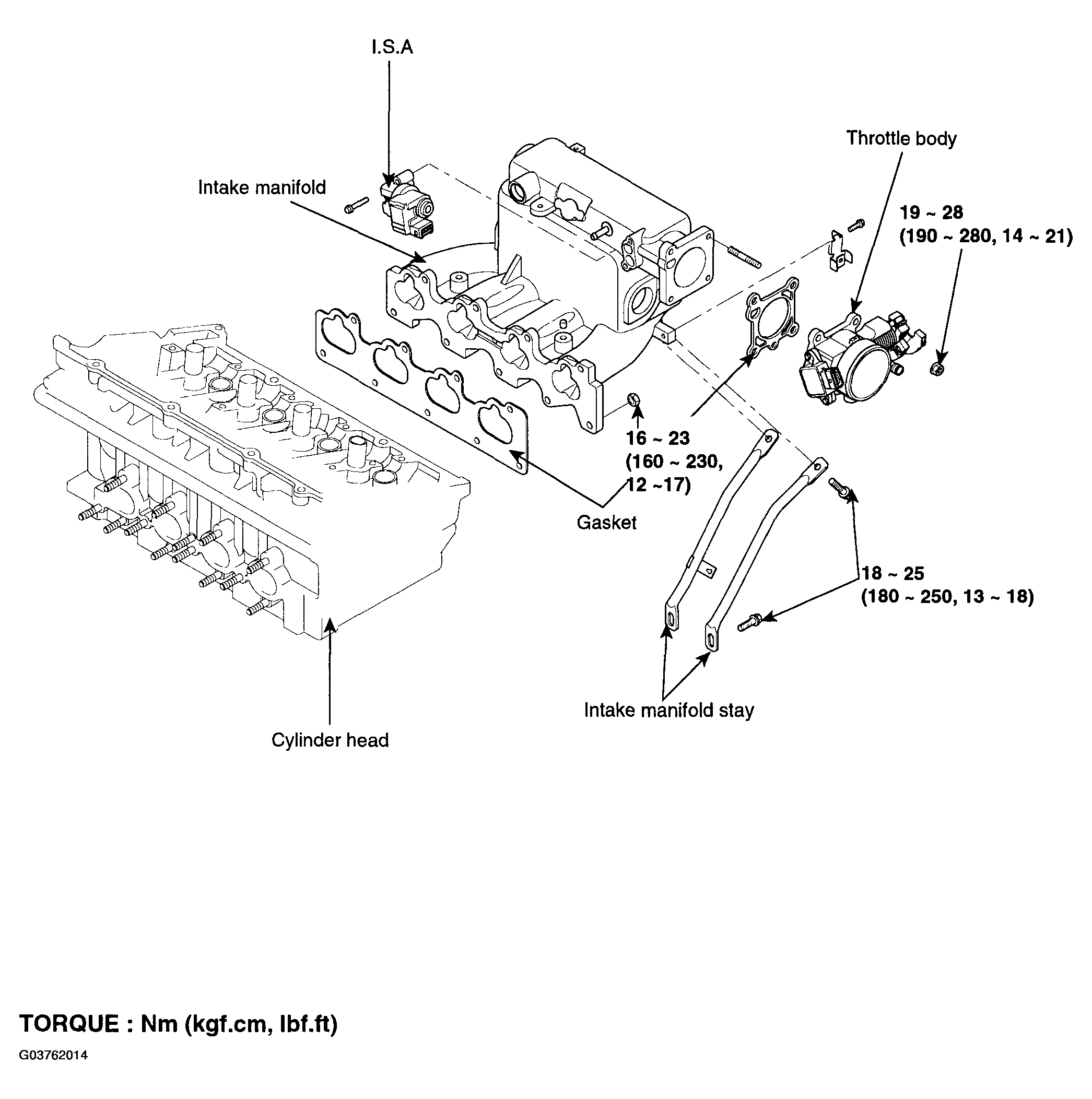

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G03762014Courtesy of HYUNDAI MOTOR CO.
