Piston Pins

  1. Measure the diameter of the piston pin.

    Piston pin diameter

    20.001 ~ 20.006mm (0.7874 ~ 0.7876in.)

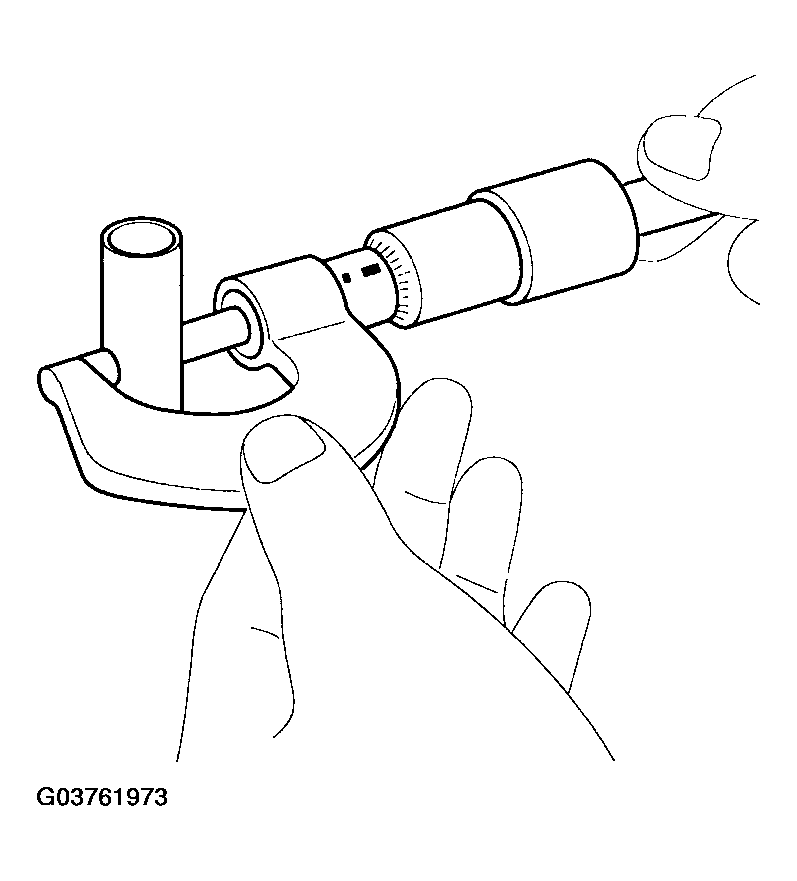

    Fig 1: Measuring Diameter Of Piston Pin
    G03761973Courtesy of HYUNDAI MOTOR CO.
  2. Measure the piston pin-to-piston clearance.

    Piston pin-to-piston clearance

    0.01 ~ 0.02mm (0.0004 ~ 0.0008in.)

  3. Check the difference between the piston pin diameter and the connecting rod small end diameter.

    Piston pin-to-connecting rod interference

    0.016 ~ 0.032mm (0.00063 ~ 0.00126in.)
