Cylinder Head Assembly: Components

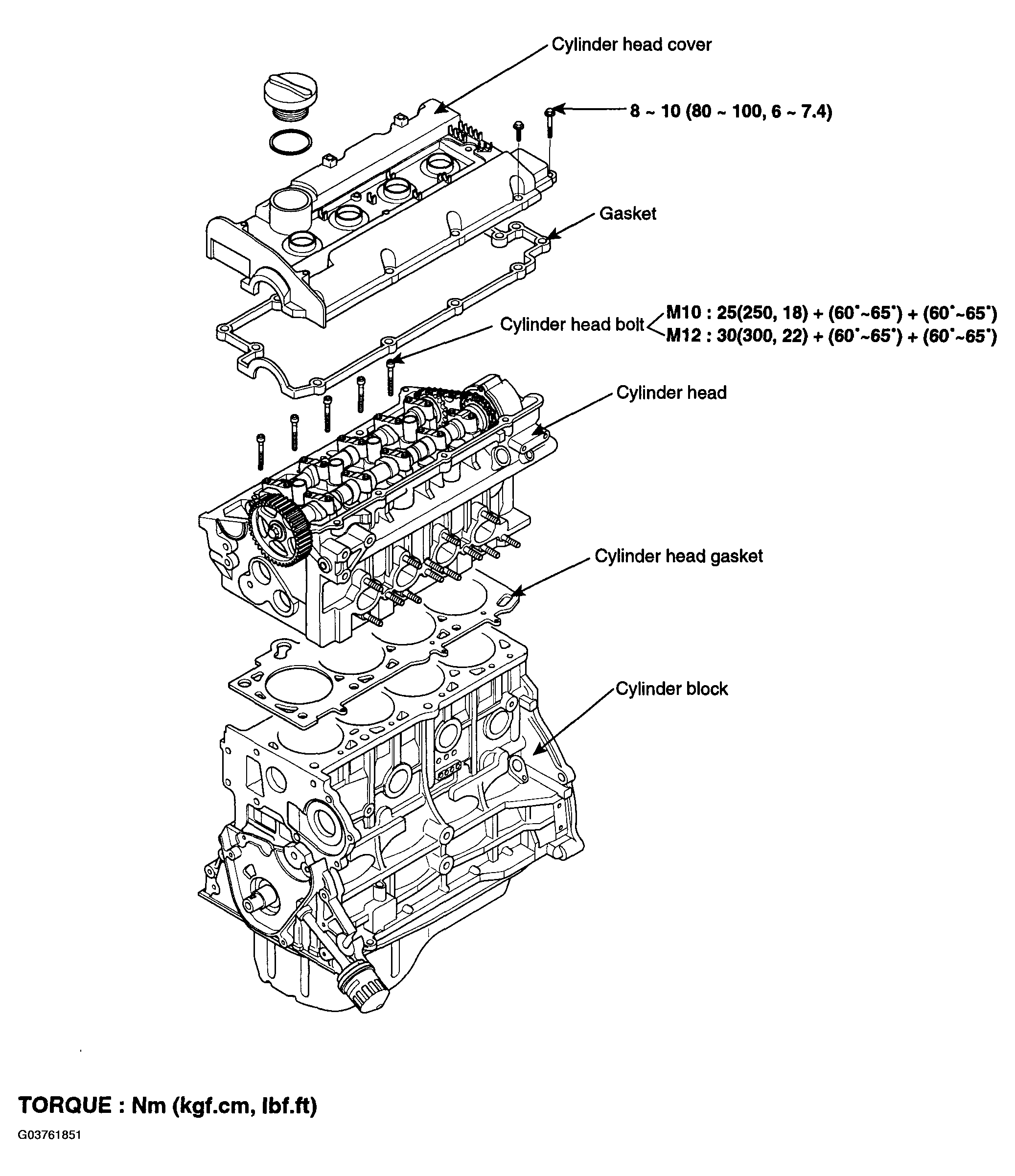

Fig 1: Cylinder Head Assembly Replacement Components With Torque Specifications (1 Of 2)
G03761851Courtesy of HYUNDAI MOTOR CO.

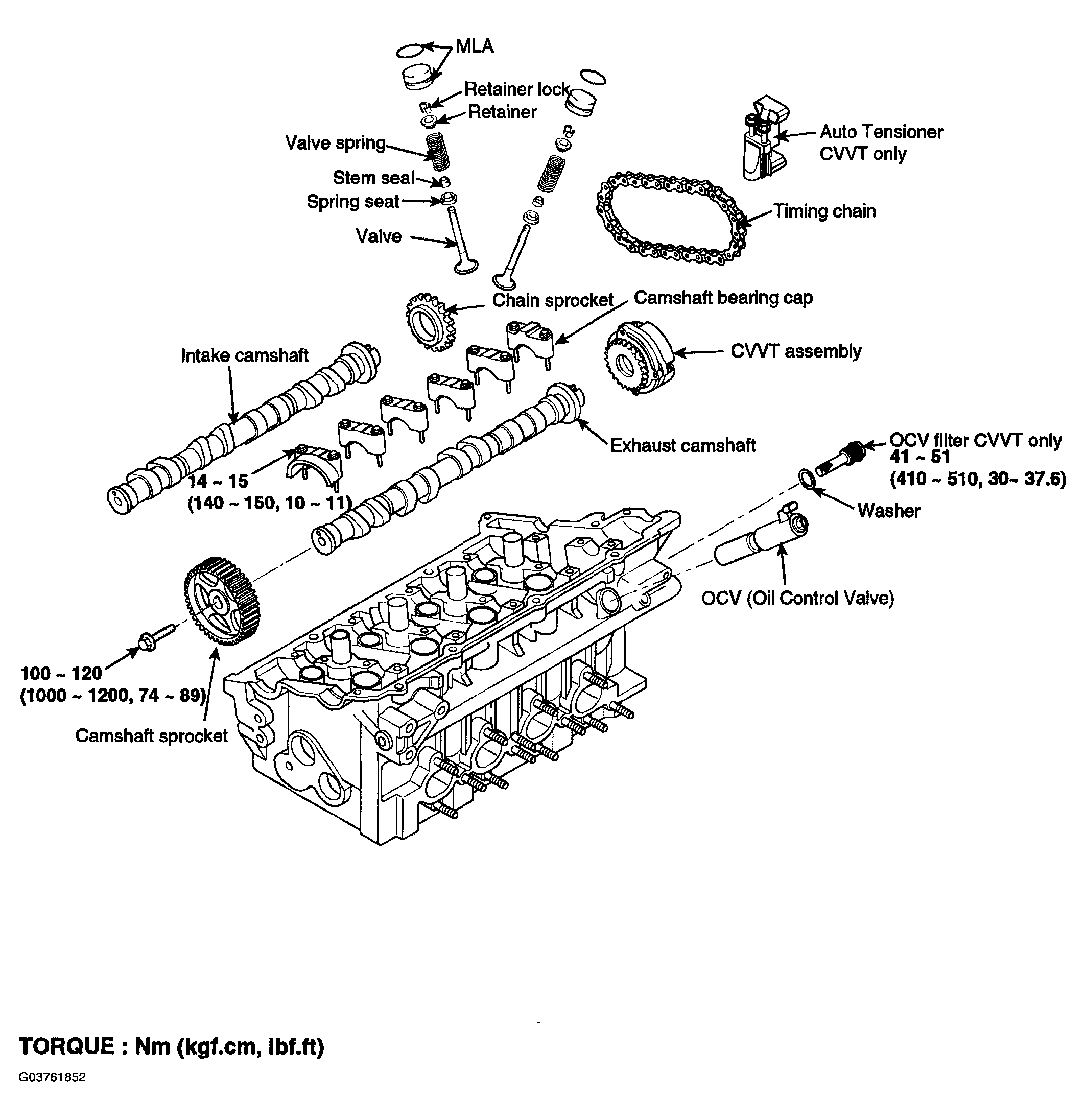

Fig 2: Exploded View Of Cylinder Head Assembly With Torque Specifications
G03761852Courtesy of HYUNDAI MOTOR CO.
