Cooling System: Component

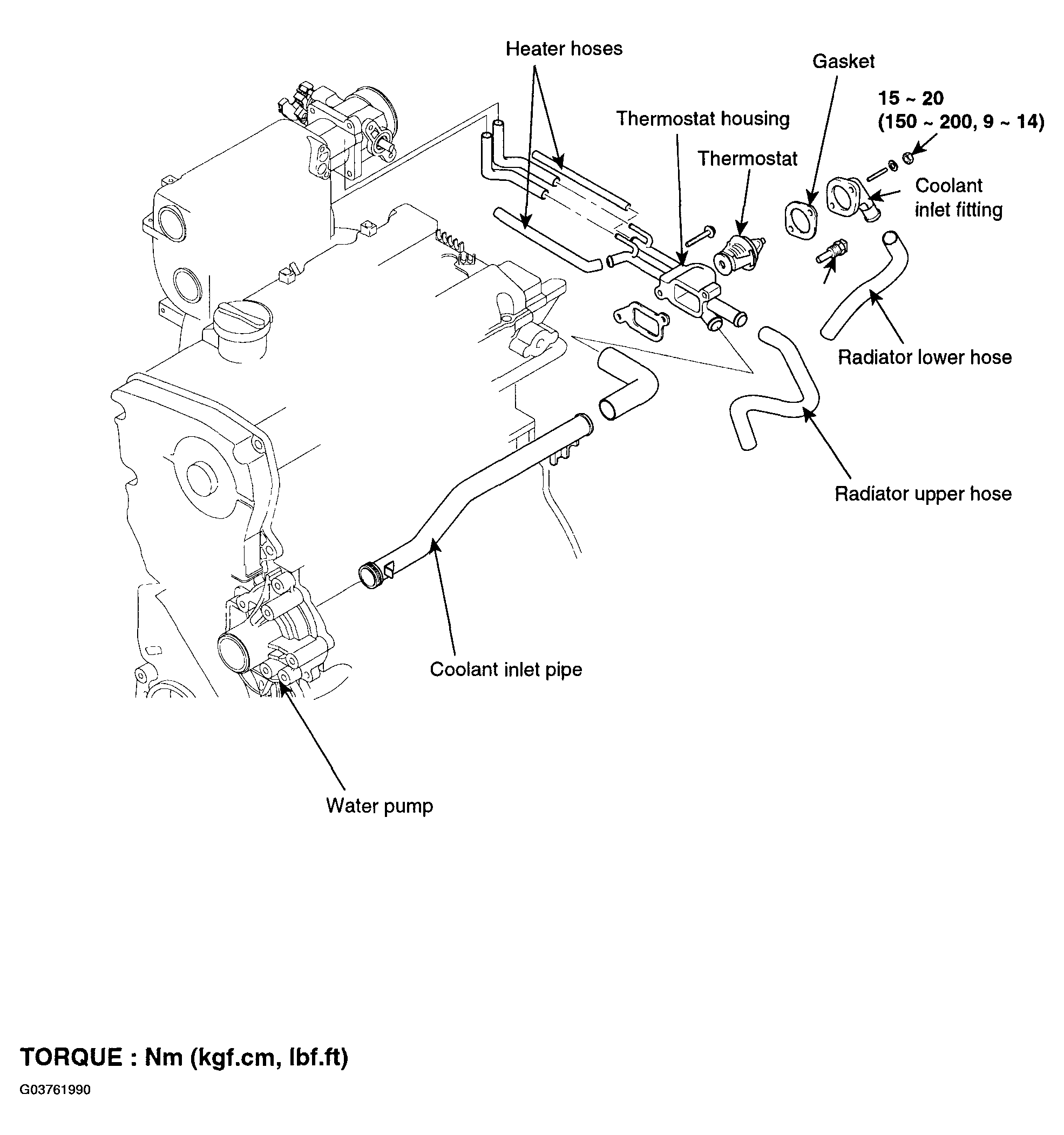

Fig 1: Cooling System Replacement Components With Torque Specifications

G03761990

Courtesy of HYUNDAI MOTOR CO.
