Special Tools
SPECIAL TOOLS DESCRIPTION
| Tool (Number and Name) | Use | Illustration |
|---|---|---|

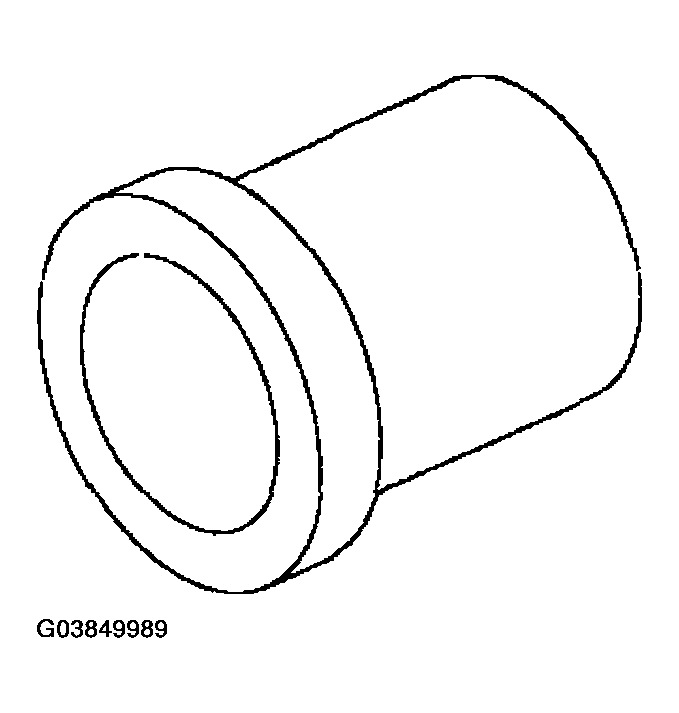

| 09216-21100 Mount bushing remover and installer |
|
Removal & installation of lower arm bushing (G) (Use with 09216-21200, 09545-02000) |

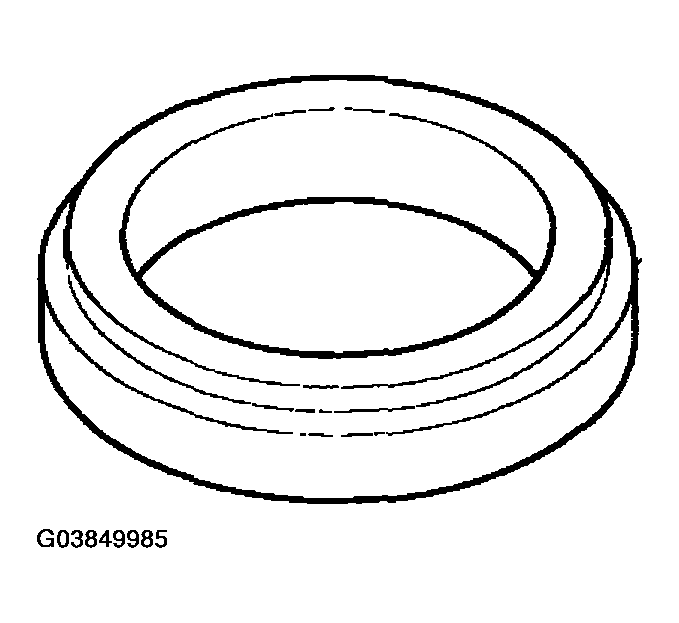

| 09216-21200 Mount bushing remover and installer base |
|
Removal & installation of the lower arm bushing (G) (Use with 09216-21100, 09545-02000) |
| 09532-11600 Preload socket |
|
Measurement of the lower arm ball joint & stabilizer link starting torque |

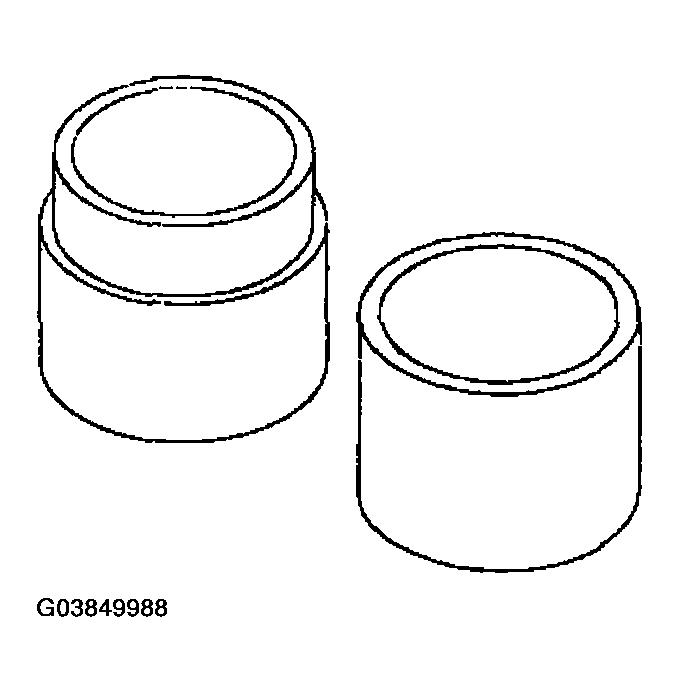

| 09545-02000 Lower arm bushing remover and installer |
|
Removal & installation of the lower arm bushing (G) (Use with 09216-21100, 09216-21200) |
| 09545-11000 Ball joint remover and installer |
|
Installation of the lower arm ball joint |

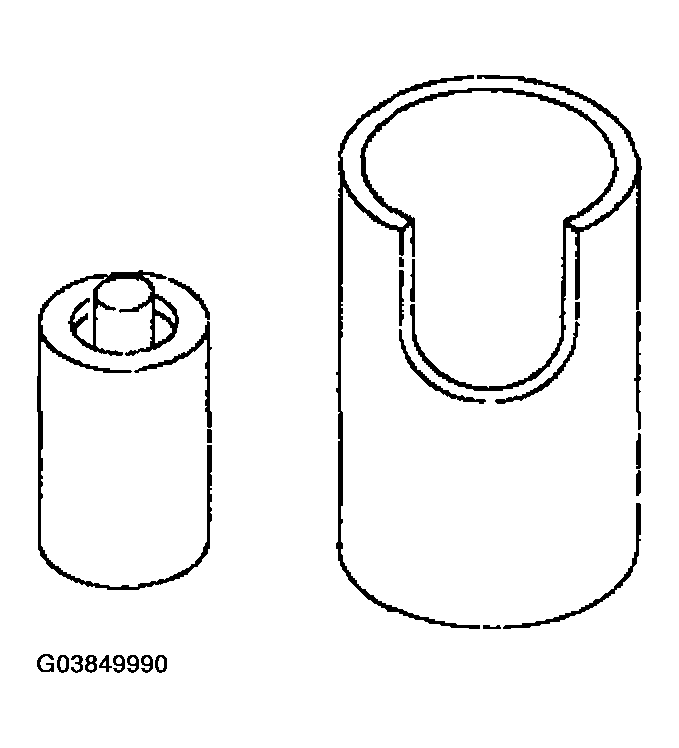

| 09545-21100 Ball joint dust cover installer |
|
Installation of the lower arm ball joint dust cover |

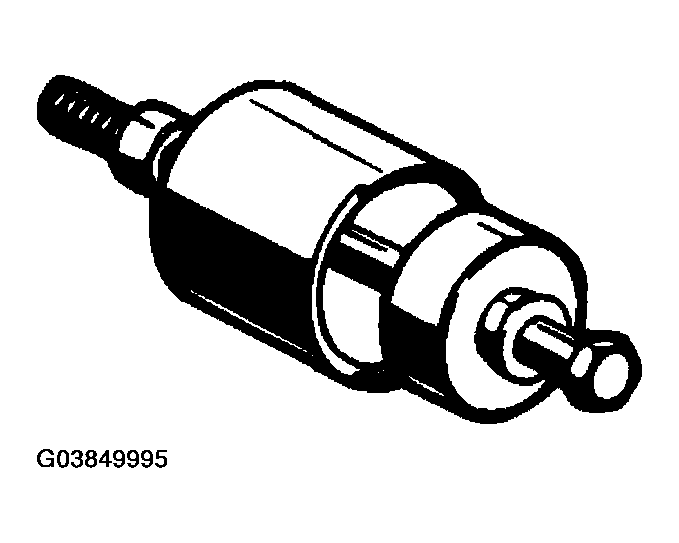

| 09551-25000 Trailing arm bushing remover and installer |
|
Removal & installation of the trailing arm bushing |
| 09552-25000 Rear suspension arm bushing remover and installer |
|
Removal & installation of the rear suspension arm bushing (Use with 09545-28100) |

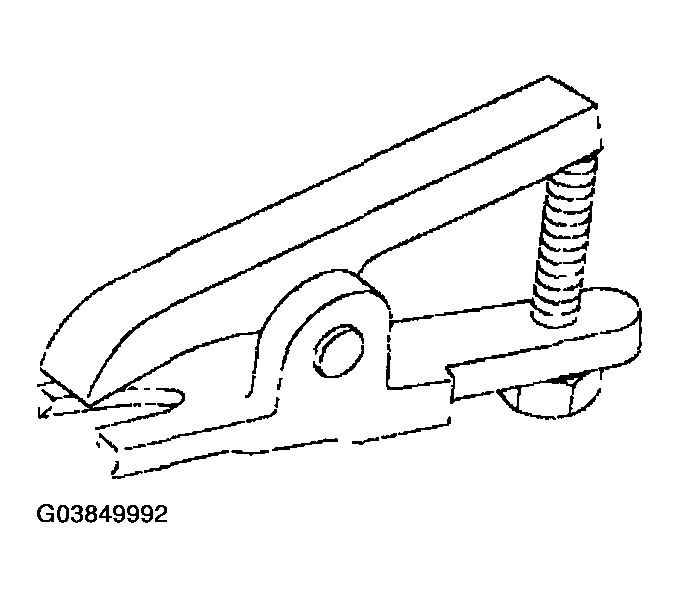

| 09568-34000 Ball joint puller |
|
Separation of the lower arm ball joint |

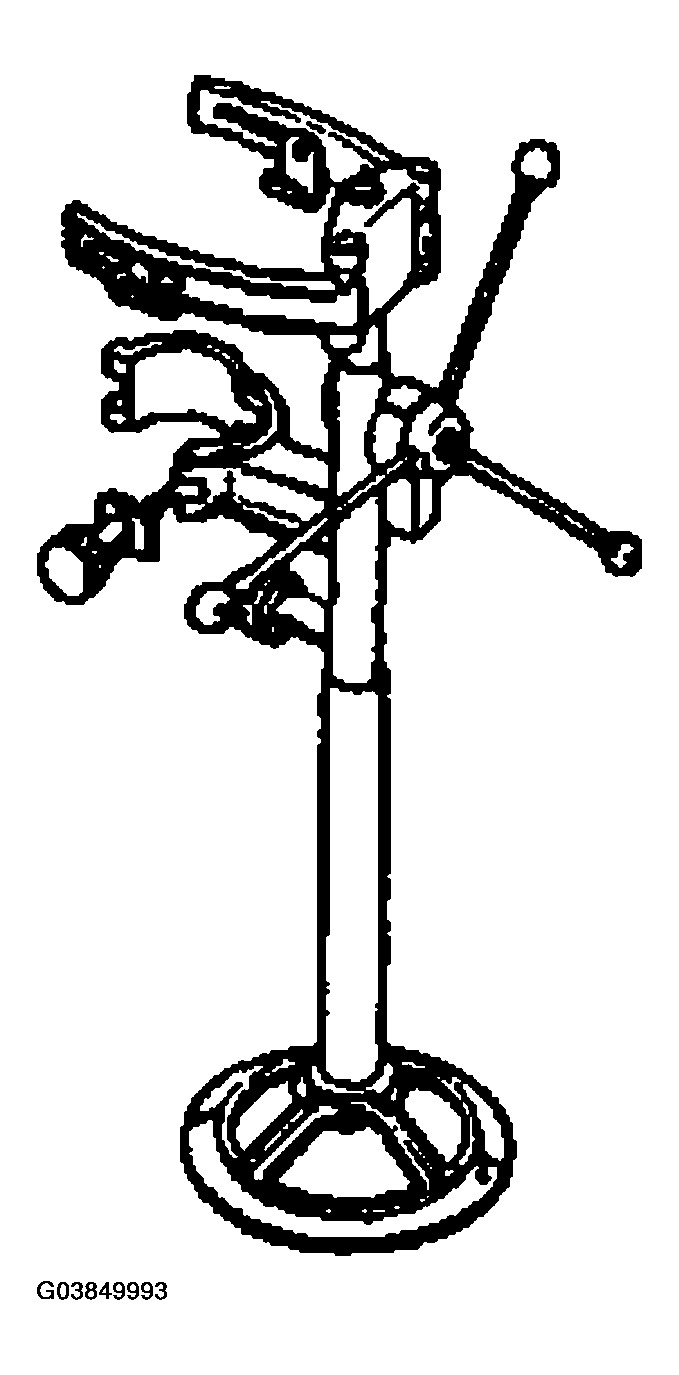

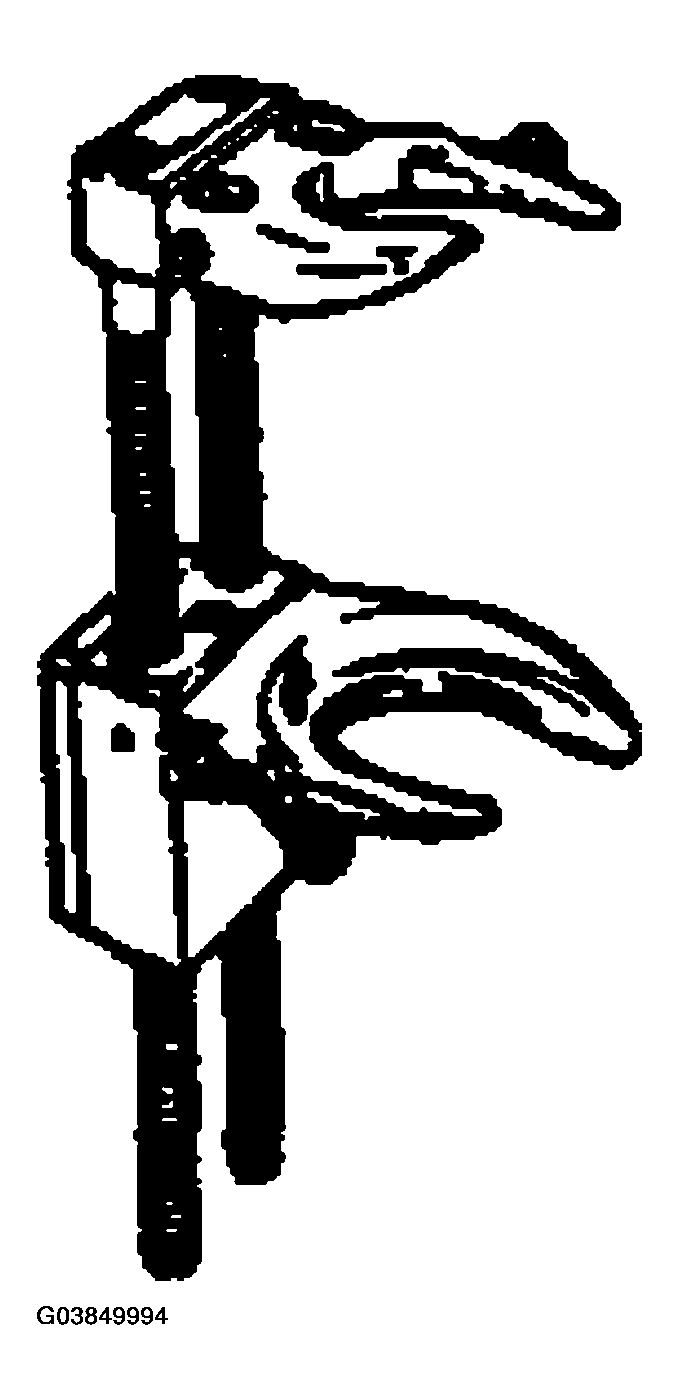

| 09546-26000 Strut spring compressor or J38402 Strut spring compressor |
|
Compression of front coil spring Compression of the front and rear coil spring (Use with A-42 or A-20) |
|
|
||

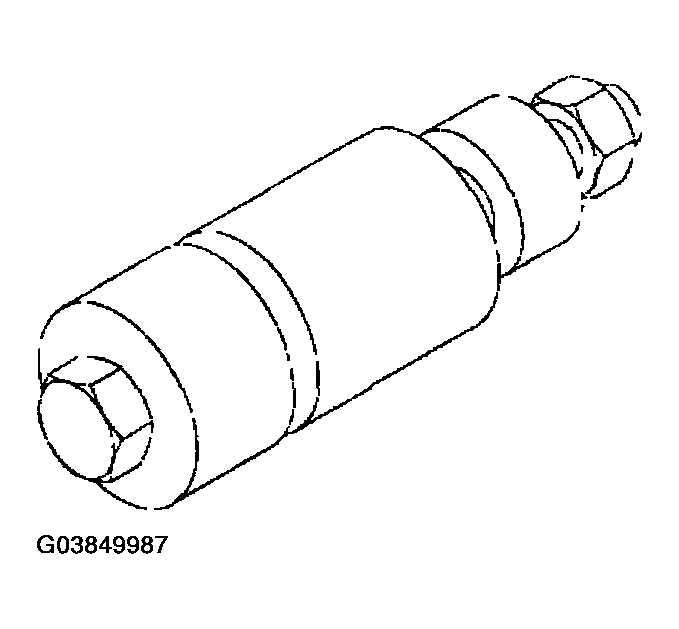

| 09624-34000 Trailing arm bushing remover and installer |
|
Removal and installation of the lower arm bush (G) |
