Trailing Arm Bushing

Install the special tool (09551 - 25000) on the trailing arm.

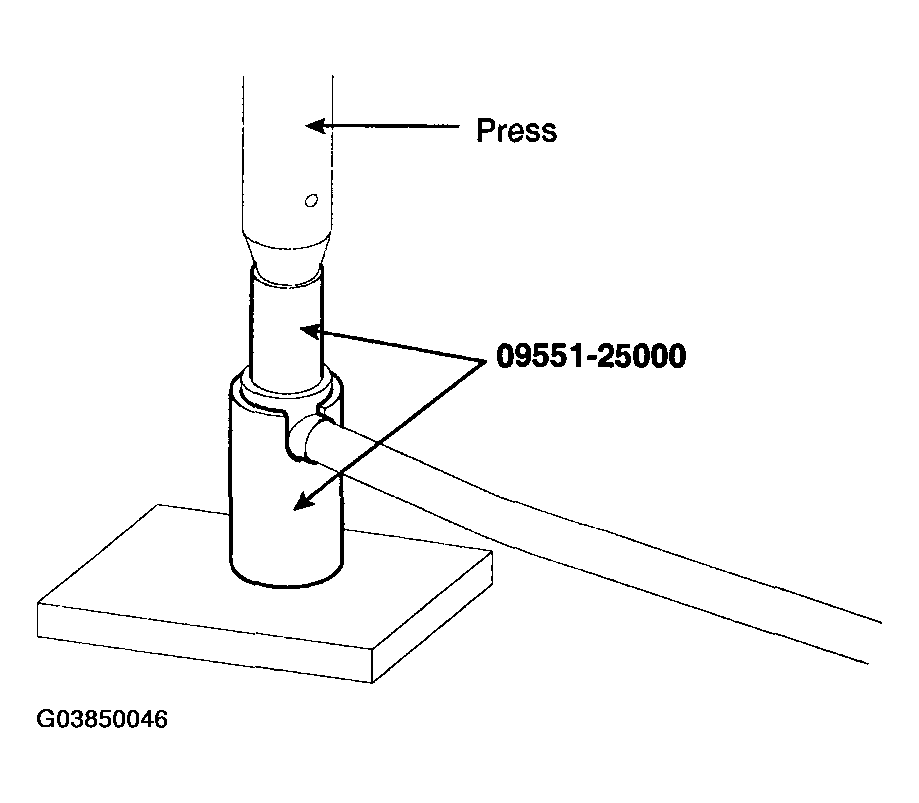

Fig 1: Installing Special Tool (09551 - 25000) On Trailing Arm
Courtesy of HYUNDAI MOTOR CO.
Remove the trailing arm bushing.
Using the special tool (09551 - 25000), press-fit the rear trailing arm bushing.

Fig 2: Pressing-Fit Rear Trailing Arm Bushing Using Special Tool (09551 - 25000)
Courtesy of HYUNDAI MOTOR CO.

NOTE: Press-fit the bushing in the same way as shown in the illustration.

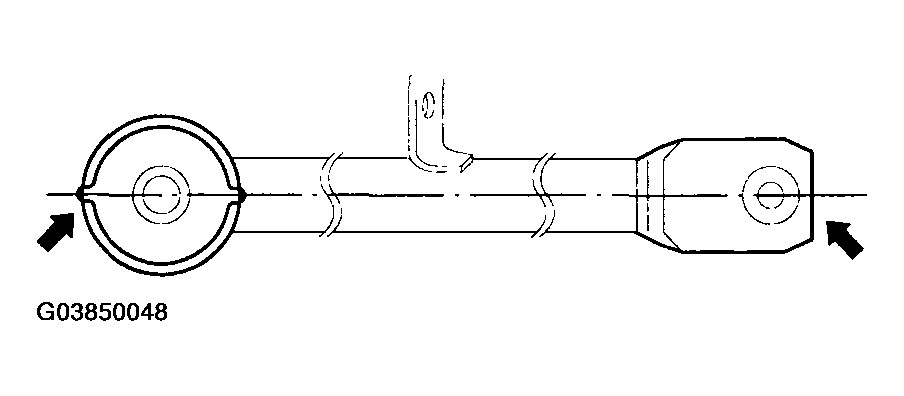

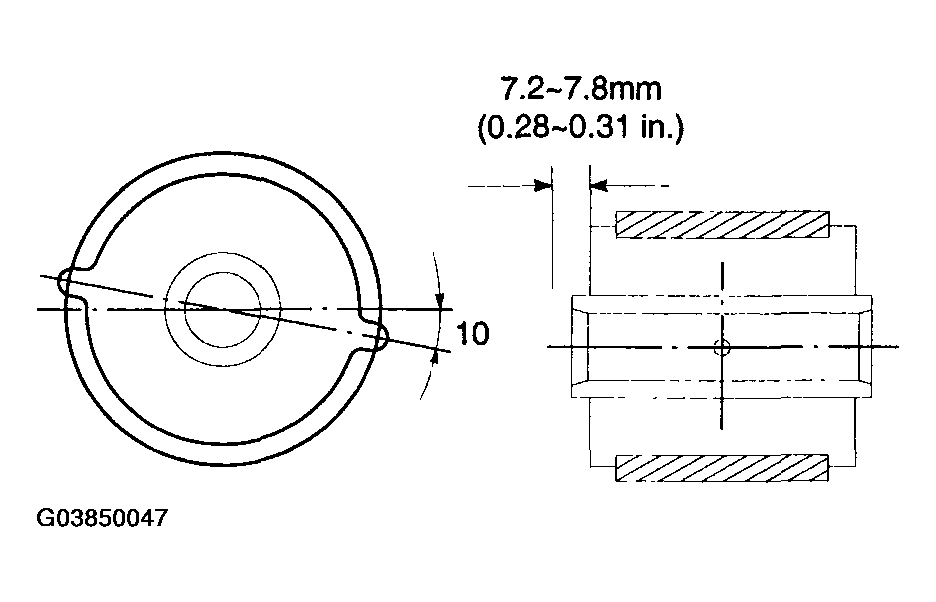

Fig 3: Press-Fitting Bushing
Courtesy of HYUNDAI MOTOR CO.
