Home >> Hyundai >> 2005 >> Tiburon SE >> Repair and Diagnosis >> Suspension >> Rear Suspension System >> Trailing Arm >> Components

Trailing Arm: Components

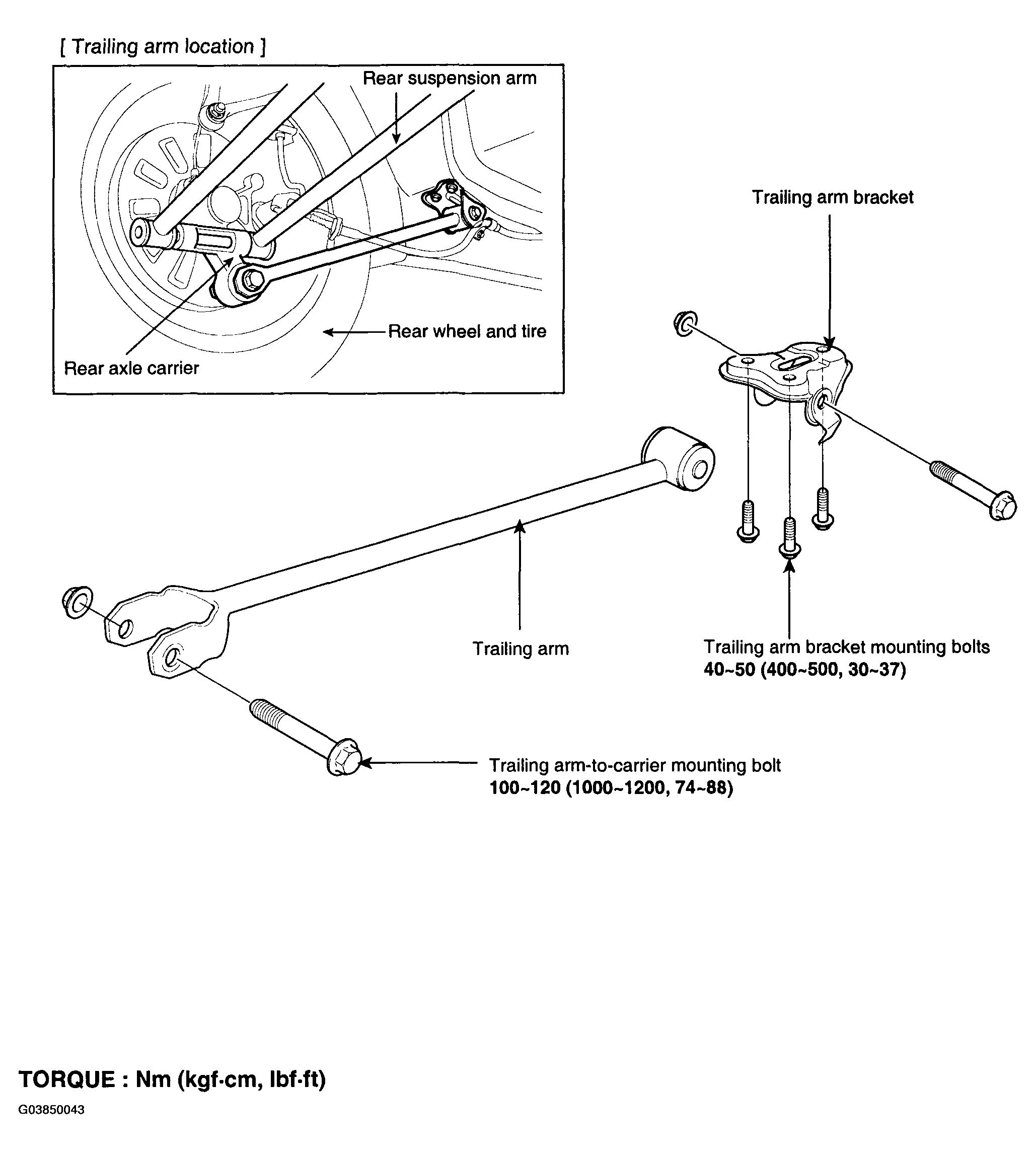

Fig 1: Trailing Arm Replacement Components With Torque Specifications

G03850043

Courtesy of HYUNDAI MOTOR CO.
